465602x8B - Scotts 46" Lawn Tractor (2001) Engine Mount Assembly Parts Diagram

46" Lawn Tractor

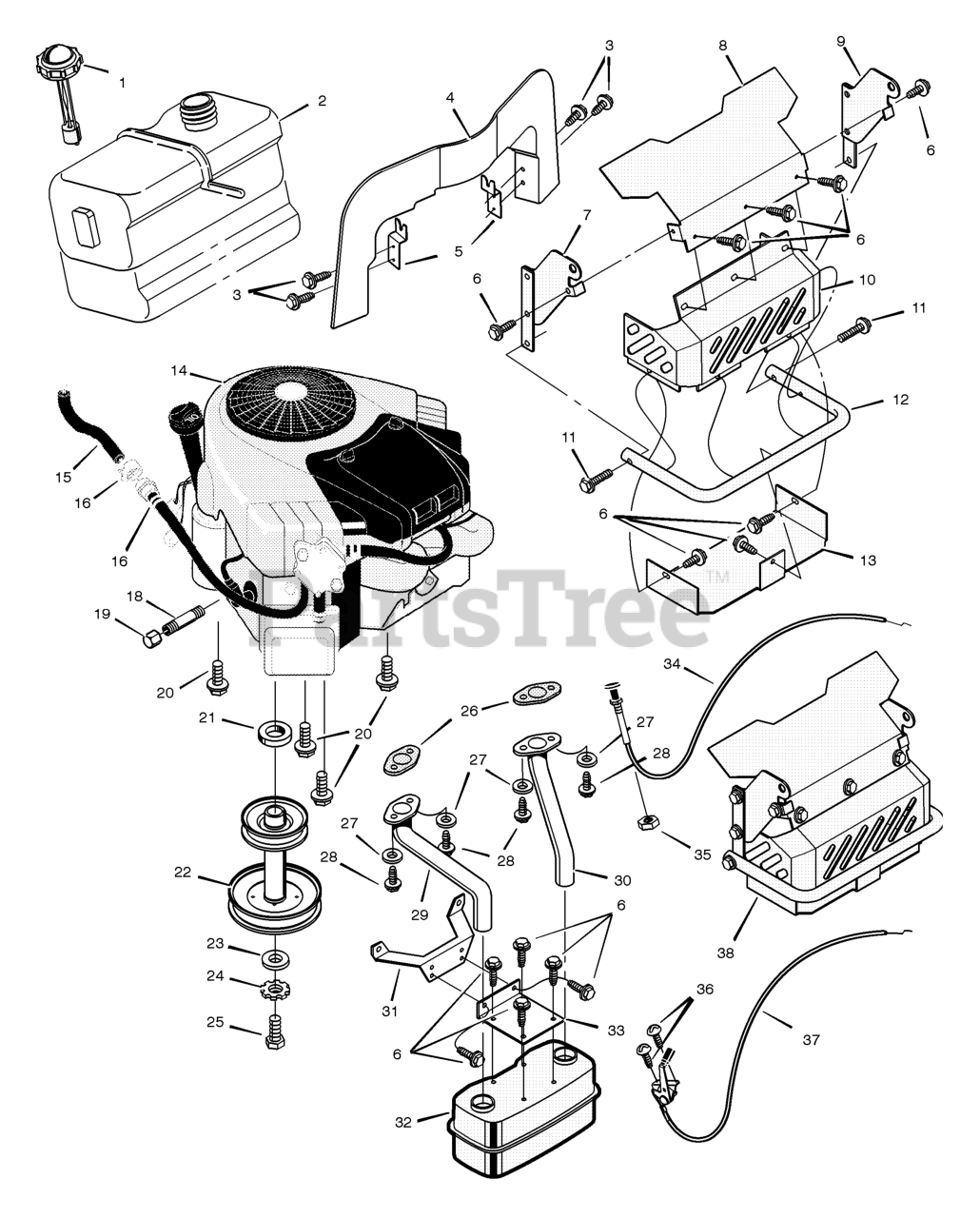

Engine Mount Assembly Parts Diagram

  • Title
1

Murray 1001279MA

Cap, Fuel

Note: (Included with Ref. No. 2)

$20.99

$

Usually ships in 2-12 days

0

2

Murray 690333MA

Tank, Fuel

$

$

Not available

3

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

4

Murray 094357

Baffle

$71.99

$

Usually ships in 2-12 days

0

5

Murray 094356 Z

Clip, Baffle Mounting

$

$

Currently unavailable

6

$4.99

$

In Stock, only 1 left!

0

7

Murray 690546E700

Assembly, Right Grille Support

$

$

Currently unavailable

8

Murray 690535

Shield, Heat

$527.99

$

Usually ships in 2-12 days

0

9

Murray 690547E700

Assembly, Left Grille Support

$

$

Currently unavailable

10

Murray 095090

Shield, Heat

$

$

Currently unavailable

11

$

$

Not available

12

$471.99

$

Usually ships in 2-12 days

0

13

Murray 094958

Shield, Lower

$

$

Currently unavailable

14

Engine *

$

$

Not available

15

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

Usually ships in 2-12 days

0

16

Murray 095197MA

Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

18

Murray 092279

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

19

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

20

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

21

$15.99

$

In Stock, only 1 left!

0

22

Murray 690507MA

Pulley, Stack

$110.99

$

Usually ships in 2-12 days

0

23

$

$

Not available

24

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

25

$5.49

$

In Stock, Qty 15

0

26

$4.49

$

Usually ships in 2-12 days

0

27

$3.99

$

In Stock, only 1 left!

0

28

Murray 001X91MA

Bolt
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

29

Murray 690541MA

Tube, Right Exhaust

$54.99

$

Usually ships in 2-12 days

0

30

Murray 690542MA

Tube, Left Exhaust

$54.99

$

Usually ships in 2-12 days

0

31

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

32

Murray 093259MA

Muffler

$96.99

$

Usually ships in 2-12 days

0

33

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

34

$3.99

$

In Stock, only 1 left!

0

35

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

$4.49

$

In Stock, only 2 left!

0

37

Murray 093165MA

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

38

Murray 1001284MA

Shield Assembly, Heat

Note: (Includes Ref. No's, 6, 7, 8, 9, 10, 11, 12 and 3)

$149.99

$

Usually ships in 2-12 days

0
