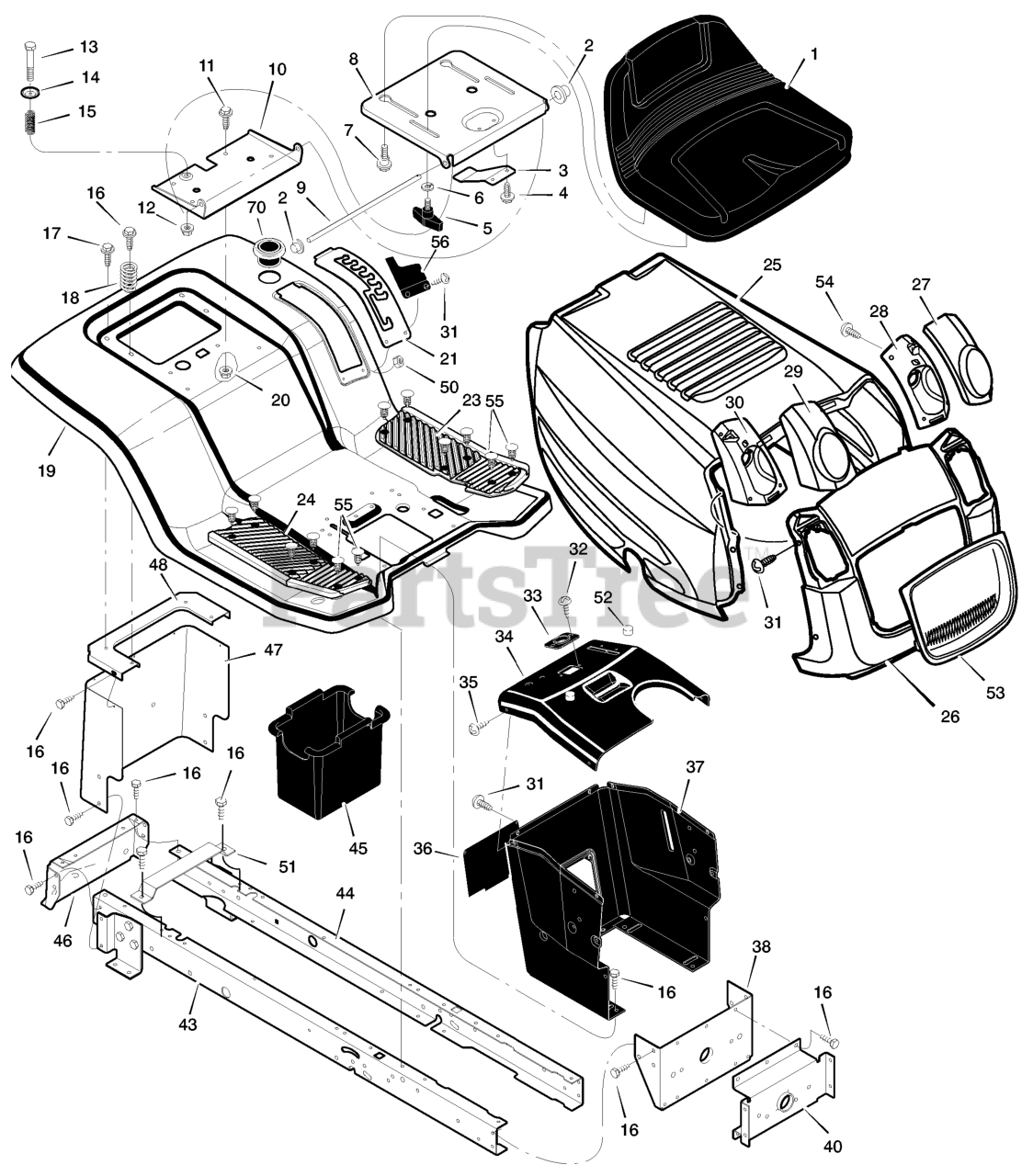

465600x8A - Murray 46" Lawn Tractor (2003) Chassis & Hood Parts Diagram

46" Lawn Tractor

Chassis & Hood Parts Diagram

  • Title
1

Murray 1001028MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001556E700MA

Deck, Seat
(Superseded to 1001556E701MA)

$

$

Not available

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094194E701MA

Plate, Index

$50.99

$

In Stock, only 1 left!

0

22

$4.49

$

Usually ships in 2-12 days

0

23

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

24

Murray 095408

Mat, Right
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

25

Murray 1001537E700MA

Hood
(Superseded to 1001537E701MA)

$

$

Not available

$87.99

$

Usually ships in 2-12 days

0

27

Murray 1001552MA

Lens, Left

$

$

Not available

28

Murray 1001550

Housing, Left Headlamp

$

$

Not available

29

Murray 1001551MA

Lens, Right

$11.99

$

Usually ships in 2-12 days

0

30

Murray 1001549

Housing, Right Headlamp

$30.99

$

Usually ships in 2-12 days

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E700

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

43

Murray 1001268E700

Frame, Right

$

$

Currently unavailable

44

Murray 1001269E700

Frame, Left

$

$

Currently unavailable

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690218E700

Plate, Rear

$

$

Not available

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

$4.99

$

Usually ships in 2-12 days

0

51

Murray 690482E701

Support, Battery

$

$

Not available

52

Murray 094376

Bumper

$3.49

$

Usually ships in 2-12 days

0

53

Murray 1001617MA

Insert, Grille

$

$

Not available

54

$4.49

$

In Stock, only 4 left!

0

55

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

56

Murray 094680MA

Cover, Detent

$7.49

$

In Stock, only 1 left!

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray F-030727L

Instruction Book & Parts List

$

$

Currently unavailable
