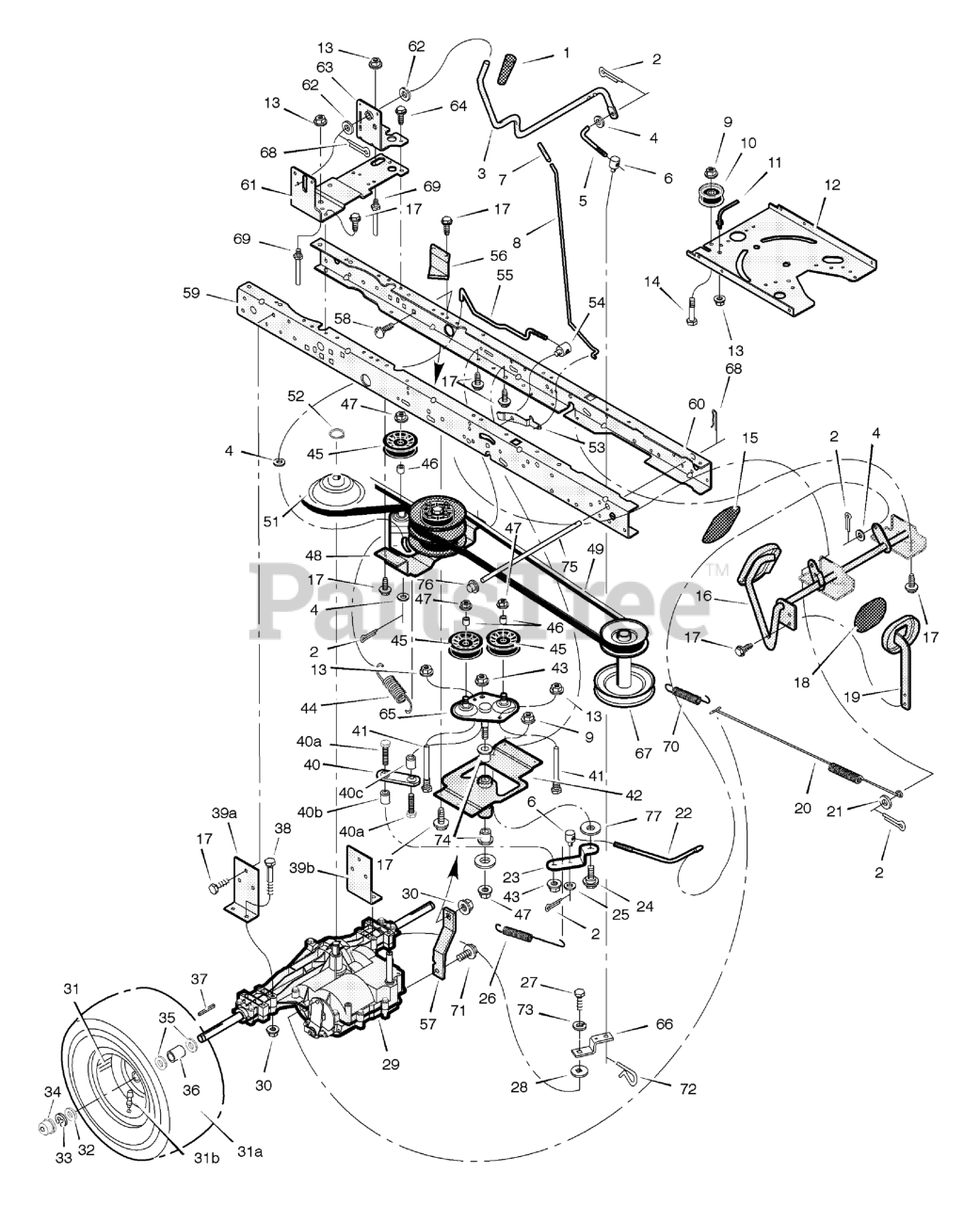

465306x31A - Scotts 46" Lawn Tractor (2004) Motion Drive Parts Diagram

46" Lawn Tractor

Motion Drive Parts Diagram

  • Title

1

Murray 094497

Grip, Shift
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

2

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

3

Murray 094043 Z

Lever, Shift

$

$

Currently unavailable

4

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

5

Murray 094044ZMA

Link, Shifter

$6.99

$

Usually ships in 2-12 days

0

6

Murray 021920ZMA

Nut, Adjuster

$17.99

$

Usually ships in 2-12 days

0

7

Murray 091079MA

Grip

$3.49

$

Usually ships in 2-12 days

0

8

Murray 1001245 Z

Rod, Parking Brake

$

$

Currently unavailable

9

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Murray 1001187MA

Pulley, Idler

$31.99

$

Usually ships in 2-12 days

0

11

Murray 1001122

Guide, Belt

$

$

Not available

12

Murray 1001121E701MA

Plate, Steering
(Superseded to 7300867ZMA)

$

$

Not available

13

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Murray 01X111MA

Bolt, Hex

$4.49

$

In Stock, only 1 left!

0

15

Murray 1001138

Pad, Motion Drive

$

$

Not available

16

Murray 1001148E700

Assembly, Speed Control

$

$

Not available

17

Murray 26X249MA

Screw, Self Tapping

$

$

Not available

18

Murray 1001139

Pad, Brake Pedal

$

$

Not available

19

Murray 1001147E700

Assembly, Brake Pedal

$

$

Currently unavailable

20

Murray 165X115MA

Spring, Extension

$21.99

$

Usually ships in 2-12 days

0

21

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

22

Murray 1001120

Rod, Speed Control

$

$

Not available

23

Murray 1001104 Z

Bellcrank

$

$

Currently unavailable

24

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

25

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

26

Murray 165X152MA

Spring, Extension

$5.49

$

Usually ships in 2-12 days

0

27

Murray 06X105MA

Screw, Cap

$3.99

$

In Stock, only 1 left!

0

28

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

29

Transaxle **

$

$

Not available

30

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

31

Murray 092300-650

Assembly, Wheel and Tire

$

$

Currently unavailable

31A

Murray 024430

Tire *

$

$

Currently unavailable

31B

Murray 024373MA

Stem, Valve

$

$

Not available

32

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

33

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

34

Murray 094618MA

Hubcap

$5.99

$

In Stock, only 4 left!

0

35

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

36

Murray 690554 Z

Spacer
(Superseded to 690554ZMA)

$17.99

$

In Stock, only 2 left!

0

37

Murray 021553MA

Key, Square

$4.99

$

In Stock, only 2 left!

0

38

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

39A

Murray 094184E701MA

Bracket, Right Transaxle

$60.99

$

Usually ships in 2-12 days

0

39B

Murray 094185E701MA

Bracket, Left Transaxle

$60.99

$

Usually ships in 2-12 days

0

40

Murray 1001576

Link, Variator

$21.99

$

Usually ships in 2-12 days

0

40A

Murray 01X194

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

40B

Murray 1001520

Spacer, 1/2"

$6.49

$

Usually ships in 2-12 days

0

40C

Murray 1001519

Spacer, 3/4"

$5.99

$

Usually ships in 2-12 days

0

41

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

42

Murray 1001277E701

Bracket, Front Frame

$44.99

$

Usually ships in 2-12 days

0

43

Murray 015X87

Nut, Lock

$4.49

$

In Stock, only 1 left!

0

44

Murray 165X153MA

Spring, Extension

$9.99

$

In Stock, only 1 left!

0

45

Murray 690409MA

Pulley

$19.99

$

In Stock, Qty 13

0

46

Murray 690369MA

Spacer

$

$

Not available

47

Murray 015X98MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

48

Murray 1001133MA

Assembly, Variator and Idler

$567.99

$

Usually ships in 2-12 days

0

49

Murray 037X112

Belt, Primary

$37.99

$

In Stock, only 1 left!

0

50

Murray 037X113

Belt, Secondary

$27.99

$

In Stock, only 1 left!

0

51

Murray 1001106MA

Pulley, Transaxle

$98.99

$

Usually ships in 2-12 days

0

52

Murray 0011X7MA

Ring, Snap

$3.99

$

In Stock, Qty 5

0

53

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

54

Murray 094815ZMA

Nut, Adjusting

$21.99

$

Usually ships in 2-12 days

0

55

Murray 1001145 Z

Rod, Clutch

$

$

Currently unavailable

56

Murray 1001135 Z

Bracket, Brake

$

$

Currently unavailable

57

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$13.99

$

Usually ships in 2-12 days

0

58

Murray 002X53MA

Screw
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

59

Murray 1001928E701MA

Rail, Right Frame

$104.99

$

Usually ships in 2-12 days

0

60

Murray 1001927E701

Rail, Left Frame

$103.99

$

Usually ships in 2-12 days

0

61

Murray 1001302E701

Bracket, Right Shift

$32.99

$

Usually ships in 2-12 days

0

62

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

63

Murray 1001303 Z

Bracket, Shift Pivot

$

$

Currently unavailable

64

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

65

Murray 1001132 Z

Assembly, Idler

$

$

Currently unavailable

66

Murray 094031ZMA

Yoke, Shift

$15.99

$

Usually ships in 2-12 days

0

67

Murray 1001136MA

Pulley, Stack

$

$

Not available

68

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

69

Murray 1001308

Guide, Belt

$

$

Not available

70

Murray 165X75MA

Spring, Return

$8.49

$

Usually ships in 2-12 days

0

71

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

72

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

73

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

74

Murray 1101159MA

Bearing

$4.49

$

In Stock, only 1 left!

0

75

Murray 1001267 Z

Rod, Belt Guide

$

$

Currently unavailable

76

Murray 028X23MA

Nut, Push-On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

77

Murray 17X174 Z

Washer

$

$

Currently unavailable
