46431x92A - Murray 46" Garden Tractor (1998) Electrical System Parts Diagram

46" Garden Tractor

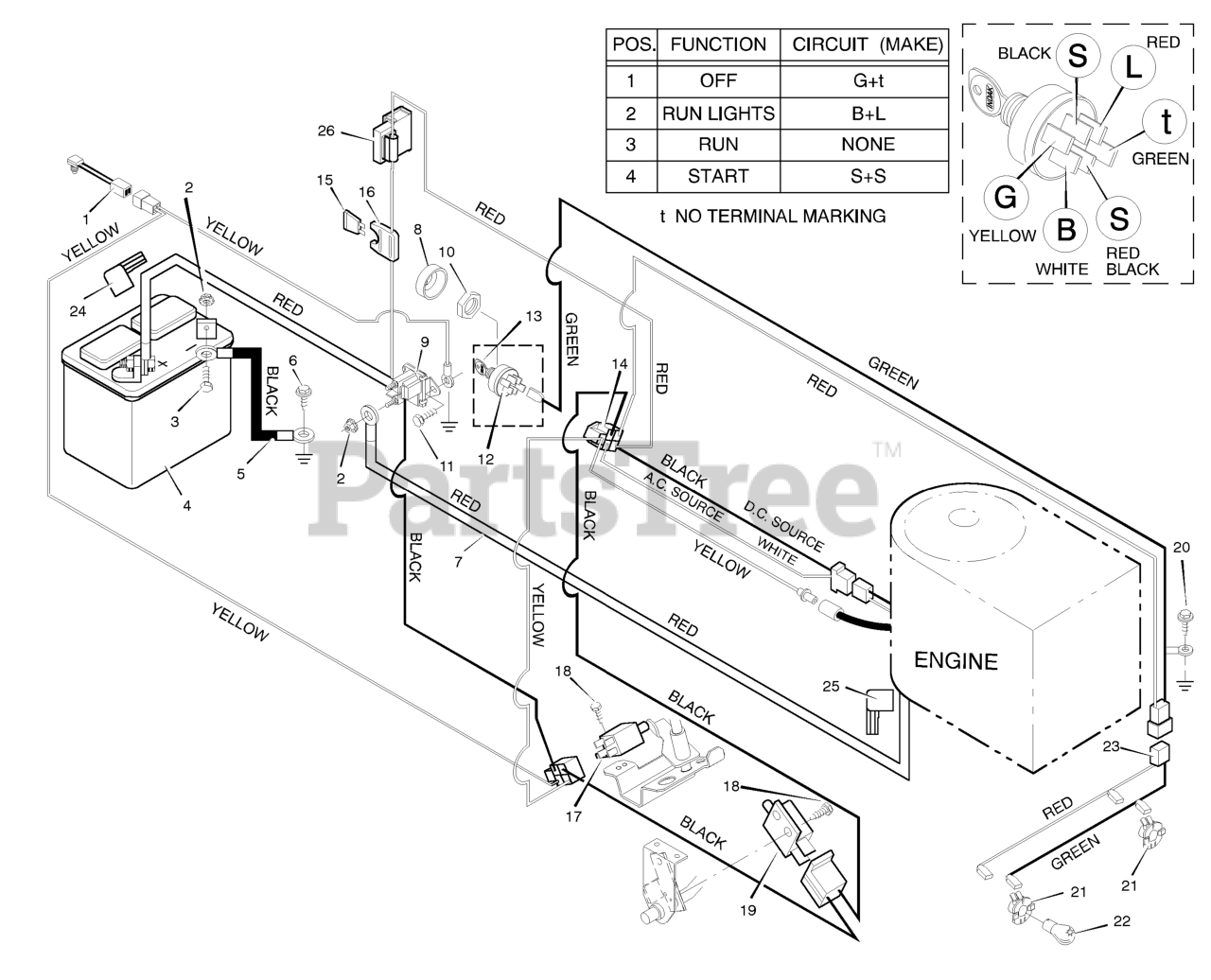

Electrical System Parts Diagram

  • Title
1

Murray 091031

Switch, Seat Sensor

$

$

Currently unavailable

2

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

3

Murray 001X38MA

Bolt, Hex

$4.49

$

In Stock, Qty 18

0

4

Murray 021075

Battery

$

$

Not available

5

Murray 024X30

Cable, Battery Ground

$7.99

$

Usually ships in 2-12 days

0

6

$

$

Not available

7

Murray 024X29MA

Cable, Red Battery

$14.99

$

Usually ships in 2-12 days

0

8

Murray 091488

Cap, Ignition
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 024285

Solenoid

$

$

Currently unavailable

10

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

11

$3.99

$

Usually ships in 2-12 days

0

12

Murray 092377MA

Switch, Ignition

$24.99

$

In Stock, only 1 left!

0

13

Murray 020729

Key, Ignition

$5.49

$

In Stock, Qty 11

0

14

Murray 250X62

Harness, Chassis Wire

$

$

Currently unavailable

15

$6.99

$

Usually ships in 2-12 days

0

16

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

17

Murray 091299MA

Switch, Clutch
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

18

$3.99

$

Usually ships in 2-12 days

0

19

Murray 091299MA

Switch, Clutch
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

20

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 9

0

21

Murray 092372

Socket, Light

$7.99

$

In Stock, Qty 5

0

22

Murray 090084MA

Bulb, Light
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

23

Murray 250X40MA

Harness, Light Wire

$25.99

$

Usually ships in 2-12 days

0

24

Murray 054148MA

Cover, Terminal

$4.49

$

In Stock, only 1 left!

0

25

Murray 024196

Cover,

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 093156MA

Ammeter

$

$

Not available
