46400x50A - Murray 46" Garden Tractor (1997) Mower Housing Suspension (part 1) Parts Diagram

46" Garden Tractor

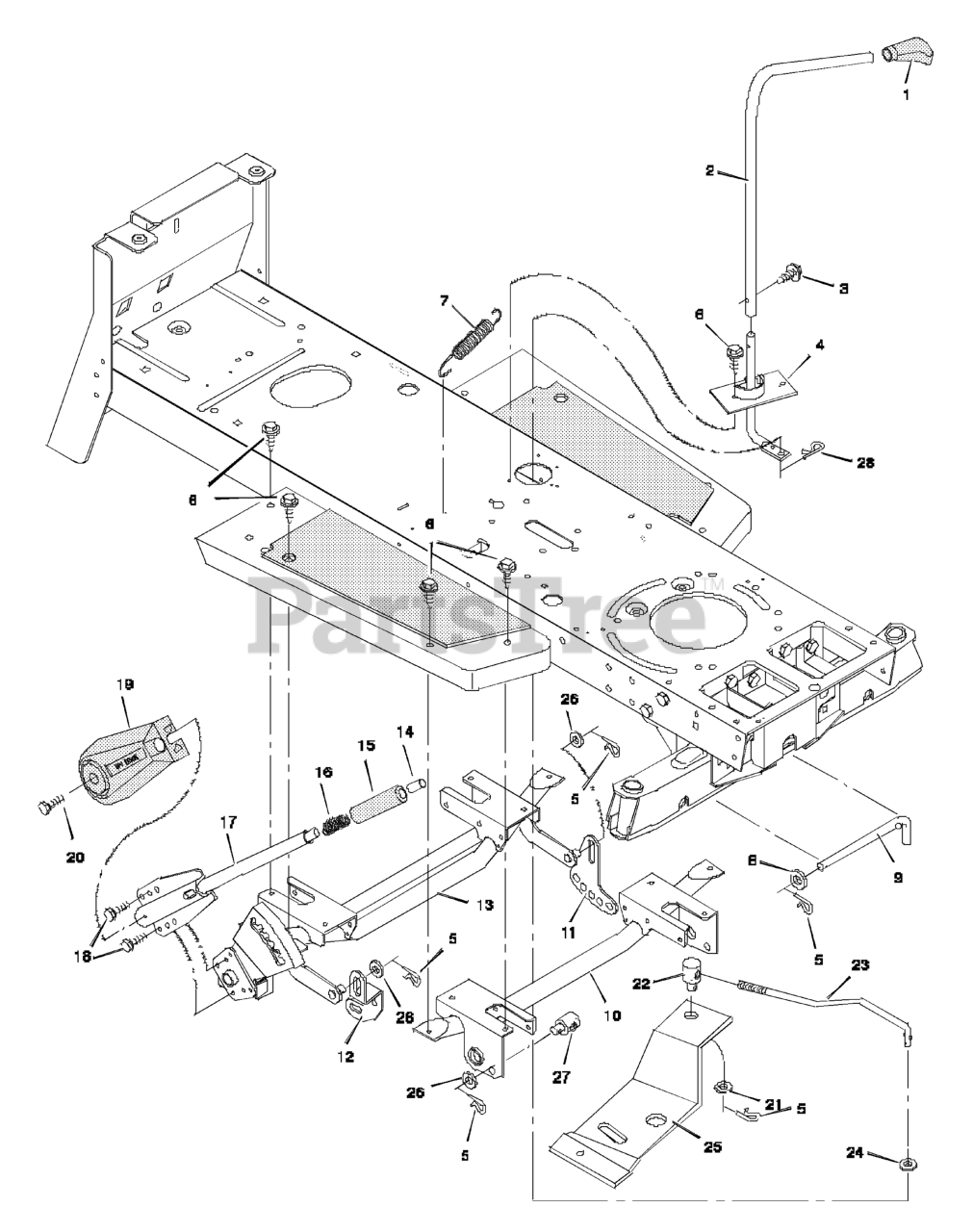

Mower Housing Suspension (part 1) Parts Diagram

  • Title

1

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 093162 Z

Lever, Blade Control

$

$

Currently unavailable

3

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

4

Murray 093218E700

Control Assembly, Blade

$

$

Currently unavailable

5

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

6

Murray 26X249MA

Screw

$

$

Not available

7

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

8

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

9

Murray 090827 Z

Pin, Pull

$

$

Currently unavailable

10

Murray 093013E701MA

Support Assembly, Front

$73.99

$

Usually ships in 2-12 days

0

11

Murray 93323E701

Plate, Adjuster

$

$

Currently unavailable

12

Murray 093340E700

Link, Suspension

$

$

Currently unavailable

13

Murray 093114E701MA

Support, Lifter

$96.99

$

Usually ships in 2-12 days

0

14

Murray 092572MA

Button, Push

$24.99

$

Usually ships in 2-12 days

0

15

Murray 092783MA

Grip

$4.49

$

Usually ships in 2-12 days

0

16

Murray 164X21MA

Spring, Compression

$4.99

$

Usually ships in 2-12 days

0

17

Murray 91823E701

Handle Assembly

$

$

Currently unavailable

18

Murray 026X49MA

Screw

$4.49

$

In Stock, only 2 left!

0

19

Murray 092157MA

Cover, Lift Lever

Note: (Optional)

$5.99

$

Usually ships in 2-12 days

0

20

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

21

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

22

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

23

Murray 093356 Z

Rod, Blade Control

$

$

Currently unavailable

24

Murray 17X472

Washer

$

$

Currently unavailable

25

Murray 093052E701

Bracket, Pivot

$

$

Currently unavailable

26

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

27

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

28

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0
