46400A - Murray 46" Garden Tractor (1996) Steering Parts Diagram

46" Garden Tractor

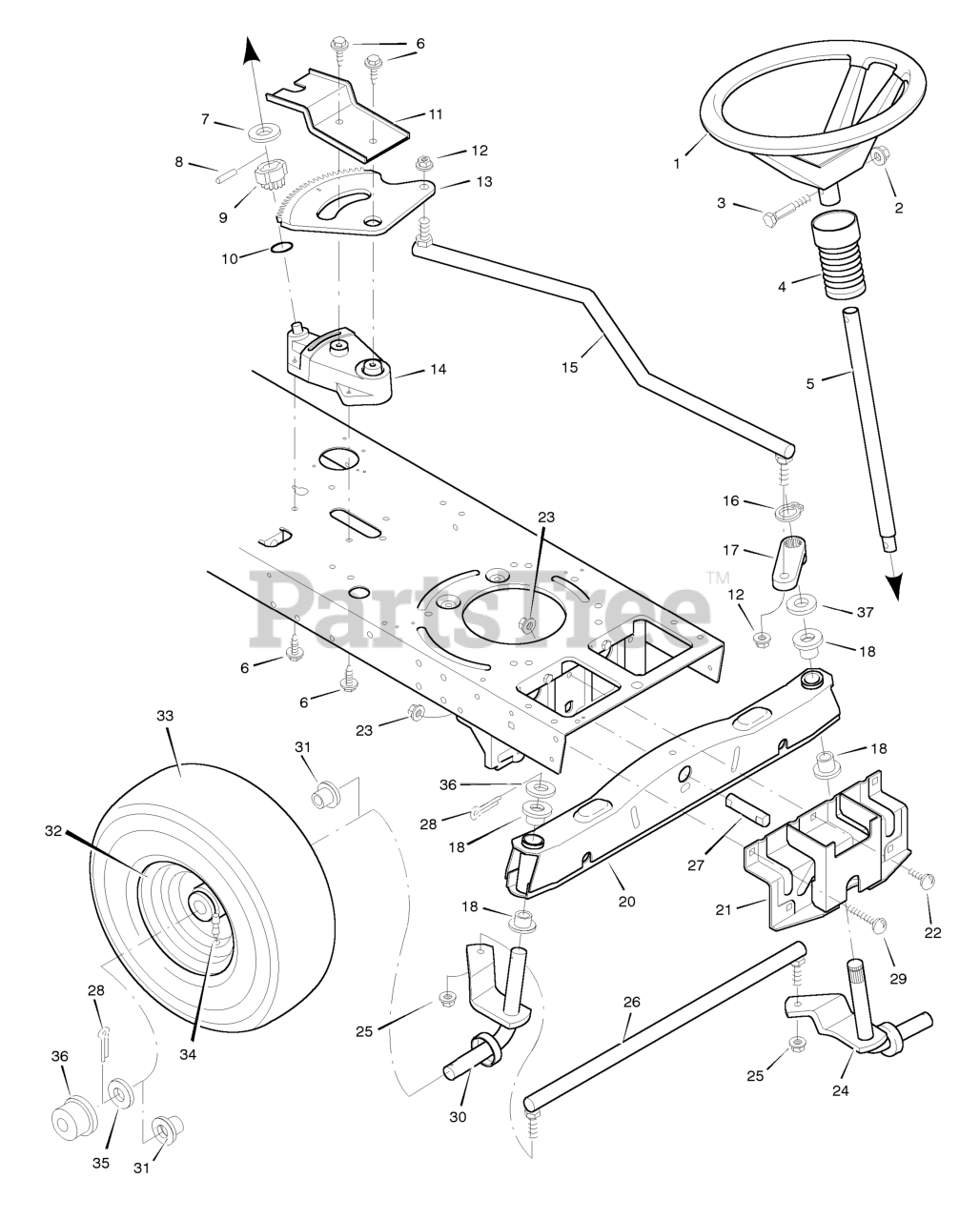

Steering Parts Diagram

  • Title

1

Murray 092076

Wheel, Steering

$

$

Currently unavailable

2

Murray 15X118MA

Nut, Hex

$4.49

$

Usually ships in 2-12 days

0

3

Murray 001X66MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

4

Murray 091298

Bellows

$

$

Currently unavailable

5

Murray 093039MA

Post Assembly, Steering

$

$

Not available

6

Murray 26X249MA

Screw

$

$

Not available

7

Murray 17X177

Washer

Note: (Included with Ref. No. 5)

$1.49

$

Usually ships in 2-12 days

0

8

Murray 032X77

Pin, Spring

Note: (Included with Ref. No. 5)

$

$

Currently unavailable

9

Murray 093037MA

Gear Assembly, Pinion

$

$

Not available

10

Murray 093068MA

O- Ring

Note: (Included with Ref. No. 9)

$3.99

$

In Stock, only 1 left!

0

11

Murray 93081E701

Clip, Gear Retainer

$

$

Currently unavailable

12

Murray 15X112MA

Locknut, Flange

$5.49

$

In Stock, only 2 left!

0

13

Murray 93062E701

Gear, Sector

$

$

Currently unavailable

14

Murray 093038MA

Support, Steering

$43.99

$

Usually ships in 2-12 days

0

15

Murray 093061E701MA

Link, Drag

$

$

Not available

16

Murray 011X22MA

E- Ring

$3.99

$

In Stock, only 1 left!

0

17

Murray 93059E701

Arm, Drag Link

$

$

Currently unavailable

18

Murray 093058MA

Bearing

$8.49

$

In Stock, Qty 6

0

20

Murray 093219E701MA

Axle Assembly (with grease fittings)

$

$

Not available

21

Murray 93080E701

Hanger Assembly, Axle

$

$

Currently unavailable

22

Murray 002X56

Bolt, Carriage

$

$

Currently unavailable

23

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Murray 093031E701MA

Spindle Assembly, Left

$227.99

$

Usually ships in 2-12 days

0

25

Murray 015X87

Locknut, Flange

$4.49

$

In Stock, only 1 left!

0

26

Murray 93060E701

Rod, Tie

$93.99

$

Usually ships in 2-12 days

0

27

Murray 021469MA

Pin, Pivot

$

$

Not available

28

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

29

Murray 002X60

Bolt, Carriage

$

$

Currently unavailable

30

Murray 93030E701

Spindle Assembly, Right

$

$

Not available

31

Murray 093064MA

Bearing, Wheel

Note: (Included with Ref. No. 32)

$4.49

$

Usually ships in 2-12 days

0

32

Murray 24393601

Wheel & Tire Assembly

$

$

Currently unavailable

33

Murray 024380

Tire *

Note: (Included with Ref. No. 32)

$

$

Not available

--

Murray 407047MA

Tube

Note: (Included with Ref. No. 32)

$31.99

$

Usually ships in 2-12 days

0

34

Murray 024373MA

Stem, Valve

Note: (Included with Ref. No. 32)

$8.49

$

In Stock, only 2 left!

0

35

Murray 17X114MA

Washer

$

$

Not available

36

Murray 024582MA

Hub Cap

Note: (Optional)

$7.99

$

Usually ships in 2-12 days

0

37

Murray 017X75MA

Shim

$3.49

$

In Stock, only 1 left!

0
