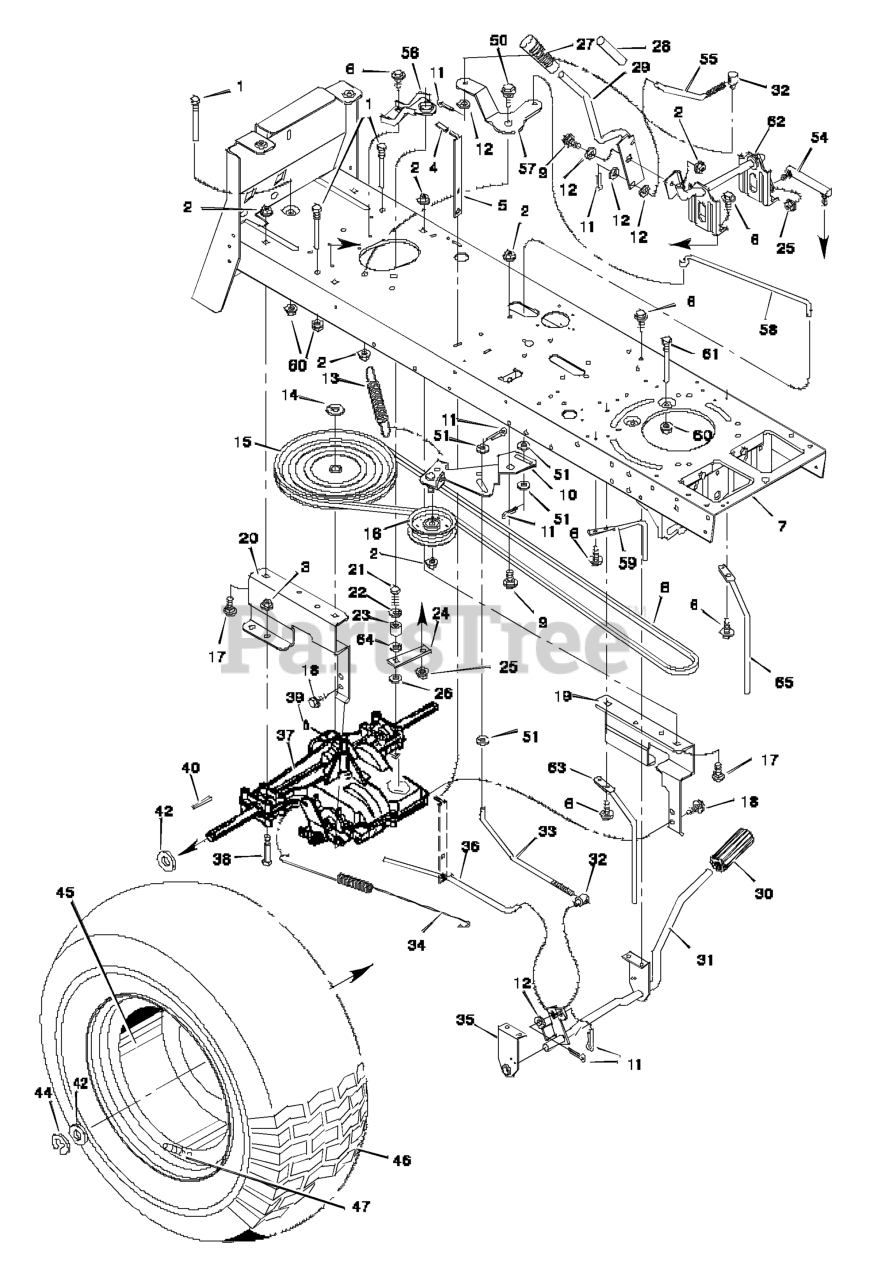

46378x6B - Murray Ultra 46" Garden Tractor (1997) Motion Drive Parts Diagram

Ultra 46" Garden Tractor

Motion Drive Parts Diagram

  • Title
1

Murray 020619MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

2

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

4

$

$

Currently unavailable

5

Murray 93044E701

Lever, Parking Brake

$

$

Currently unavailable

6

$

$

Not available

7

$2.49

$

Usually ships in 3-10 days

0

8

Murray 037X68MA

Belt, Motion Drive

$50.99

$

In Stock, only 1 left!

0

9

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

10

Murray 093033 Z

Bracket Assembly, Idler

$

$

Currently unavailable

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X52

Washer

$3.49

$

Usually ships in 2-12 days

0

13

Murray 165X87MA

Spring, Drive Extension

$14.99

$

Usually ships in 2-12 days

0

14

Murray 0011X7MA

Ring, Retainer

$3.99

$

In Stock, only 4 left!

0

15

Murray 075073MA

Pulley, Motion Drive

$128.99

$

Usually ships in 2-12 days

0

16

Murray 023339MA

Pulley, Backside Idler

$

$

Not available

17

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

18

$3.99

$

Usually ships in 2-12 days

0

19

Murray 093299E701

Bracket, Left Transaxle

$

$

Currently unavailable

20

Murray 093298E701

Bracket, Right Transaxle

$

$

Currently unavailable

21

Murray 01X145MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

22

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

23

Murray 091889

Pilot, Support

$3.99

$

Usually ships in 2-12 days

0

24

Murray 092041 Z

Yoke, Shift Lever

$

$

Currently unavailable

25

Murray 015X87

Locknut

$4.49

$

In Stock, only 1 left!

0

26

$3.99

$

Usually ships in 2-12 days

0

27

$

$

Currently unavailable

28

Murray 020476

Grip, Inner

$

$

Currently unavailable

29

Murray 092031 Z

Lever, Shift

$

$

Currently unavailable

30

Murray 021544MA

Pedal, Clutch/Brake
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

31

Murray 93082E701

Lever Assembly, Pedal

$37.99

$

Usually ships in 2-12 days

0

32

Murray 021920ZMA

Nut, Adjustable

$17.99

$

Usually ships in 2-12 days

0

33

Murray 093029 Z

Rod, Clutch

$

$

Currently unavailable

34

Murray 165X82MA

Spring, Brake Extension

$48.99

$

Usually ships in 2-12 days

0

35

Murray 091713E701

Bracket, Pedal Support

$54.99

$

Usually ships in 2-12 days

0

36

Murray 93054E701

Rod, Brake Latch

$

$

Currently unavailable

37

Transaxle, Peerless **

Note: (930-048)

$

$

Not available

38

Murray 01X132

Bolt, Hex

$

$

Currently unavailable

39

Murray 020697MA

Key, Woodruff No. 9

$3.99

$

Usually ships in 2-12 days

0

40

Murray 024039MA

Key, Square

$4.49

$

Usually ships in 2-12 days

0

42

Murray 17X118 Z

WASHER, 1-1.3 16G FLT
(Superseded to 17X118ZMA)

$3.49

$

Usually ships in 2-12 days

0

44

$4.49

$

In Stock, only 3 left!

0

45

Murray 093263-601

Wheel & Tire Assembly

$

$

Currently unavailable

46

Murray 407920

Tire Only *

Note: (Included with Ref. No. 45)

$376.99

$

Usually ships in 2-12 days

0

--

$47.99

$

Usually ships in 2-12 days

0

47

Murray 024373MA

Valve Stem

Note: (Included with Ref. No. 45)

$

$

Not available

50

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

51

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

52

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

54

Murray 092615

Link, Shifter

$

$

Not available

55

Murray 093305

Link, Clutch

$

$

Currently unavailable

56

Murray 092614 Z

Bracket, Support

$

$

Currently unavailable

57

Murray 092620 Z

Bracket, Pivot

$

$

Currently unavailable

58

Murray 092616 Z

Rod, Clutch

$

$

Currently unavailable

59

Murray 092629 Z

Guide, Belt

$

$

Currently unavailable

60

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

61

Murray 091754MA

Guide, Belt

$16.99

$

Usually ships in 2-12 days

0

62

Murray 92626E701

Shifter Assembly

$

$

Currently unavailable

63

Murray 92533 Z

Guide, Belt

$

$

Currently unavailable

64

$

$

Currently unavailable

65

Murray 92533 Z

Guide, Belt

$

$

Currently unavailable
