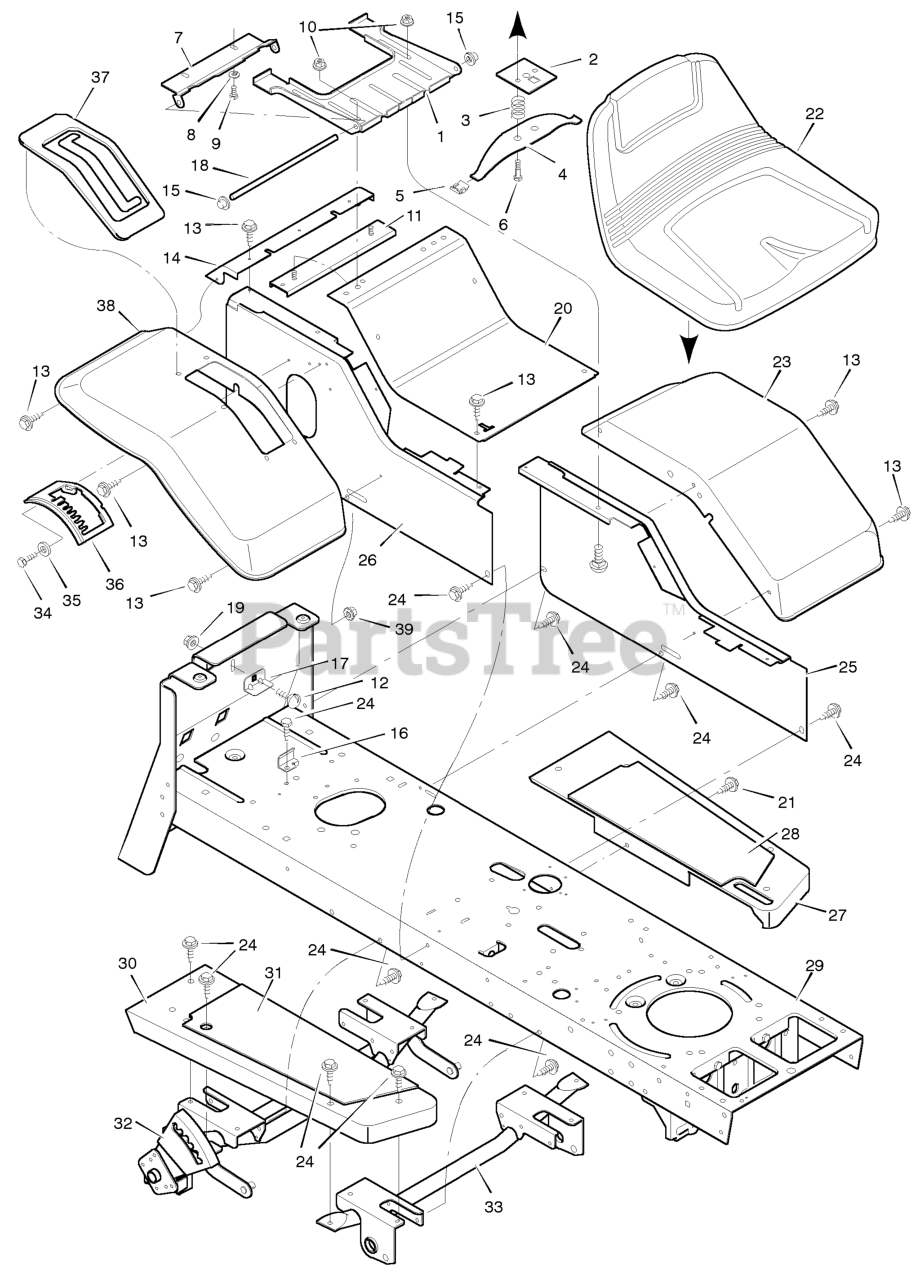

46377x8A - Murray 46" Garden Tractor (1996) Body Chassis Parts Diagram

46" Garden Tractor

Body Chassis Parts Diagram

  • Title
1

Murray 092546E701

Bracket, Seat

$

$

Currently unavailable

2

Murray 091963 Z

Plate Assembly, Switch

$

$

Currently unavailable

3

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.49

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 92334E701

Support, Seat

$76.99

$

Usually ships in 2-12 days

0

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

11

Murray 092601E701

Channel Assembly

$

$

Currently unavailable

12

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

13

$4.99

$

In Stock, only 1 left!

0

14

Murray 93043E701

Insert, Rear

$

$

Currently unavailable

15

Murray 028X23MA

Push On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

16

Murray 55149E701

Clip, Battery

$

$

Currently unavailable

17

Murray 090632 Z

Clamp, Battery

$

$

Currently unavailable

18

Murray 091730 Z

Rod, Pivot

$

$

Currently unavailable

19

Murray 015X76MA

Locknut

$3.49

$

Usually ships in 2-12 days

0

20

Murray 93222E540

Panel, Top

$

$

Currently unavailable

21

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

22

$

$

Currently unavailable

23

$37.99

$

Usually ships in 2-12 days

0

24

$

$

Not available

25

Murray 92599E540

Panel, Left

$

$

Currently unavailable

26

Murray 92622E540

Panel, Right

$

$

Currently unavailable

27

Murray 93011E540

Running Board, Left

$

$

Currently unavailable

28

Murray 093071

Mat, Left

$

$

Currently unavailable

29

Murray 403350

Frame Channel

$

$

Currently unavailable

30

Murray 93010E540

Running Board, Right

$

$

Currently unavailable

31

Murray 093070

Mat, Right

$

$

Currently unavailable

32

Murray 093114E701MA

Lifter and Support Assembly

$96.99

$

Usually ships in 2-12 days

0

33

Murray 093013E701MA

Support Assembly, Front

$73.99

$

Usually ships in 2-12 days

0

34

$4.49

$

In Stock, Qty 18

0

35

$

$

Currently unavailable

36

Murray 092630E701

Gate, Shift

$

$

Currently unavailable

37

Murray 091905

Cover, Shift

$

$

Not available

38

Murray 092379E540

Fender, Right

$

$

Currently unavailable

39

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0
