46370x5C - Murray 46" Garden Tractor (1996) Hood & Engine Mount Parts Diagram

46" Garden Tractor

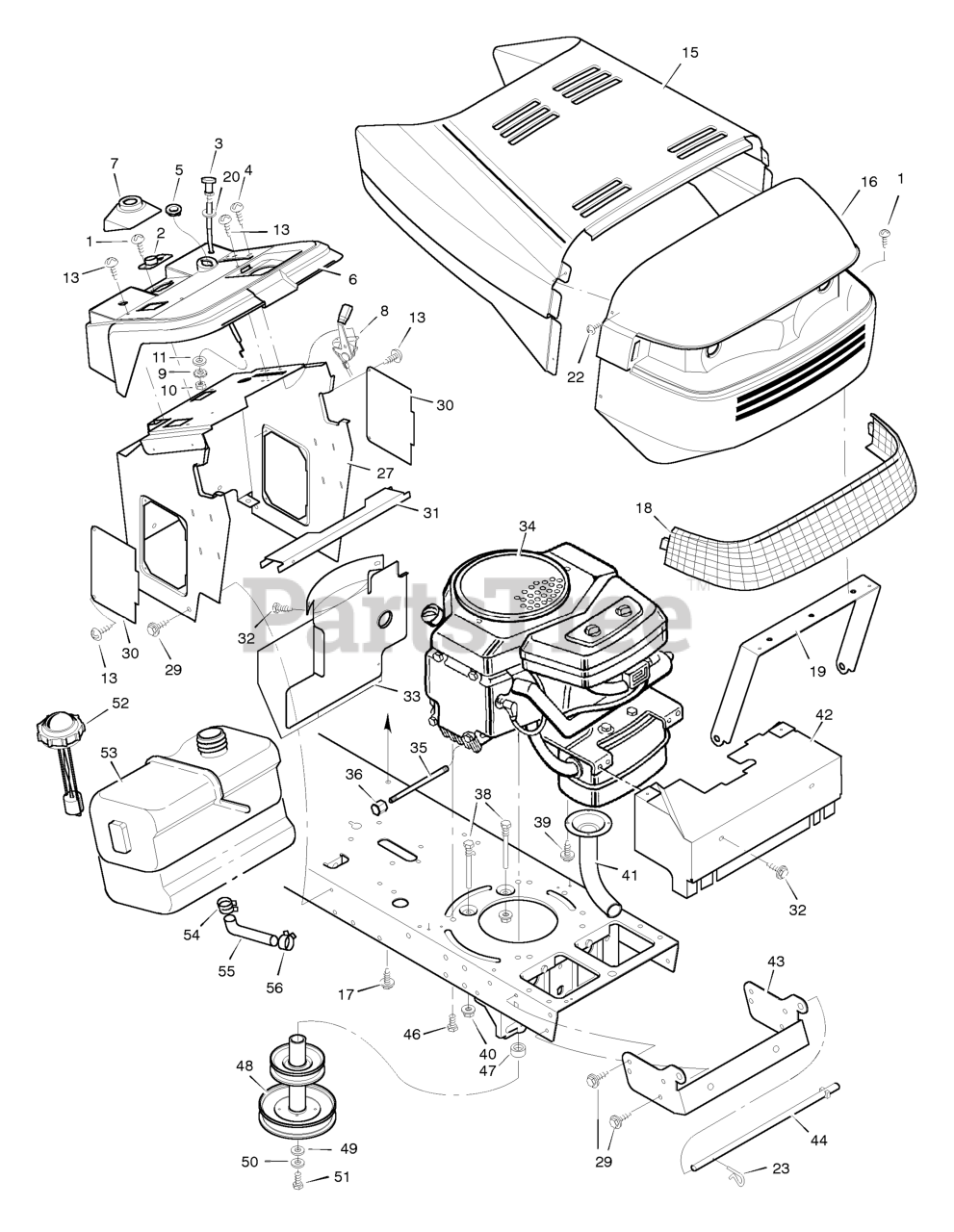

Hood & Engine Mount Parts Diagram

  • Title
1

$4.49

$

Usually ships in 2-12 days

0

2

Murray 093144

Bearing, Steering Post

$

$

Not available

3

Murray 091326

Cable, Choke

$32.99

$

In Stock, only 1 left!

0

4

$4.49

$

In Stock, only 2 left!

0

5

Murray 055717MA

Bushing

$3.49

$

Usually ships in 2-12 days

0

6

$

$

Currently unavailable

7

Murray 093176

Support, Bellows

$

$

Currently unavailable

8

Murray 093165MA

Throttle Control

$39.99

$

Usually ships in 2-12 days

0

9

Murray 0019X8MA

Lockwasher
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

10

Murray 015X33MA

Nut, Hex

$3.49

$

In Stock, only 1 left!

0

11

$

$

Currently unavailable

13

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

15

Murray 093215E245MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

16

Murray 93149E245

Grille

Note: (Includes Lens)

$

$

Currently unavailable

17

$4.99

$

In Stock, only 1 left!

0

18

$95.99

$

Usually ships in 2-12 days

0

19

Murray 93190 Z

Brace, Grille

$

$

Currently unavailable

20

Murray 17X185

Washer
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

22

$4.49

$

Usually ships in 2-12 days

0

23

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

27

Murray 93196E701

Console Assembly

$

$

Currently unavailable

29

$

$

Not available

30

Murray 093007E701MA

Panel, Side Access

$31.99

$

Usually ships in 2-12 days

0

31

Murray 91329E701

Support, Fuel Tank

$

$

Currently unavailable

32

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

33

Murray 93214E701

Baffle, Rear Heat

$

$

Currently unavailable

34

Engine *

$

$

Not available

35

Murray 023783

Oil Drain Extension

$

$

Currently unavailable

36

Murray 021651

Oil Drain Cap

$7.49

$

Usually ships in 2-12 days

0

38

Murray 091754 Z

Guide, Belt

$

$

Currently unavailable

39

$

$

Currently unavailable

40

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

41

Murray 023743E701MA

Pipe, Exhaust

$136.99

$

Usually ships in 2-12 days

0

42

Murray 93188E701

Shield, Heat

$

$

Currently unavailable

43

Murray 93145E701

Support, Grille

$

$

Currently unavailable

44

Murray 093192 Z

Rod, Pivot

$

$

Currently unavailable

46

Murray 0025X7MA

Bolt, Hex
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

47

Murray 093077MA

Spacer, Engine

$15.99

$

In Stock, only 1 left!

0

48

Murray 092506 Z

Pulley Assembly, Stack

$

$

Currently unavailable

49

$

$

Not available

50

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

51

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

52

Murray 091349

Cap, Fuel

$

$

Currently unavailable

53

Murray 093148

Fuel Tank

$

$

Currently unavailable

54

Murray 091174

Clamp, Hose

$

$

Currently unavailable

55

Murray 093197

Fuel Line

$

$

Currently unavailable

56

Murray 023713MA

Clamp, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

--

Murray F-96713

Book, Instruction

$

$

Currently unavailable

--

Murray F-96838

Repair Parts Book

$

$

Currently unavailable
