463707-2637-E2 - Briggs & Stratton Vertical Engine Electric Starter Parts Diagram

Vertical Engine

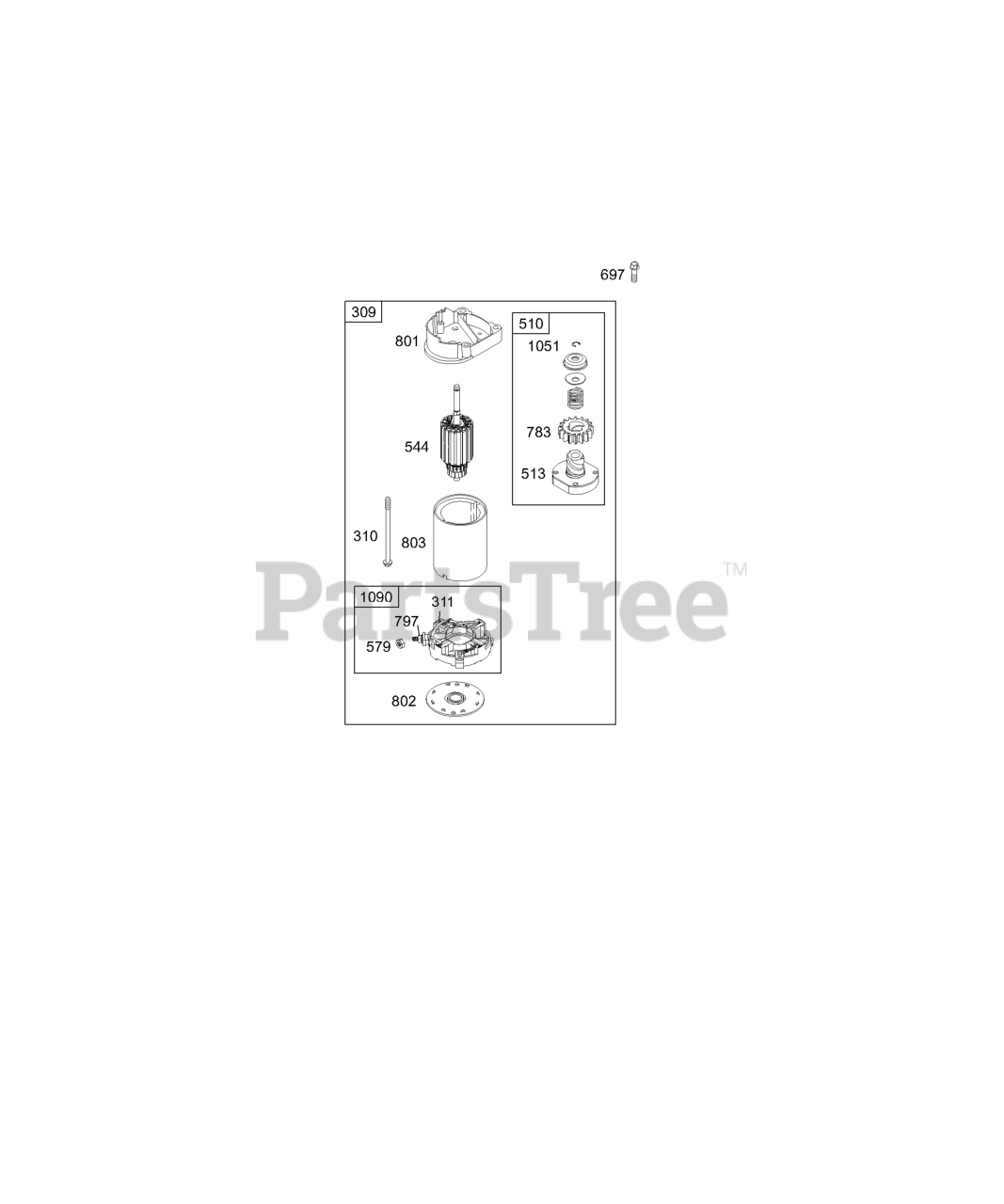

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 497596

Motor-Starter

Note: (3 5/8" Housing Length)

$122.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor) (3 5/8" Housing Length)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

In Stock, Qty 10

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 692034

Armature-Starter

Note: (3 5/8" Housing Length)

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 690958

NUT

Note: (Starter Cable)

$3.49

$

In Stock, only 3 left!

0

697

Briggs & Stratton 691625

Screw
(Superseded to 691103)

Note: (Drive Cap)

$3.99

$

In Stock, only 4 left!

0

783

Briggs & Stratton 693059

Gear-Pinion
(Superseded to 695708)

$6.99

$

In Stock, only 4 left!

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691967

Cap-Drive

$74.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

Note: (3 5/8" Housing Length)

$25.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
