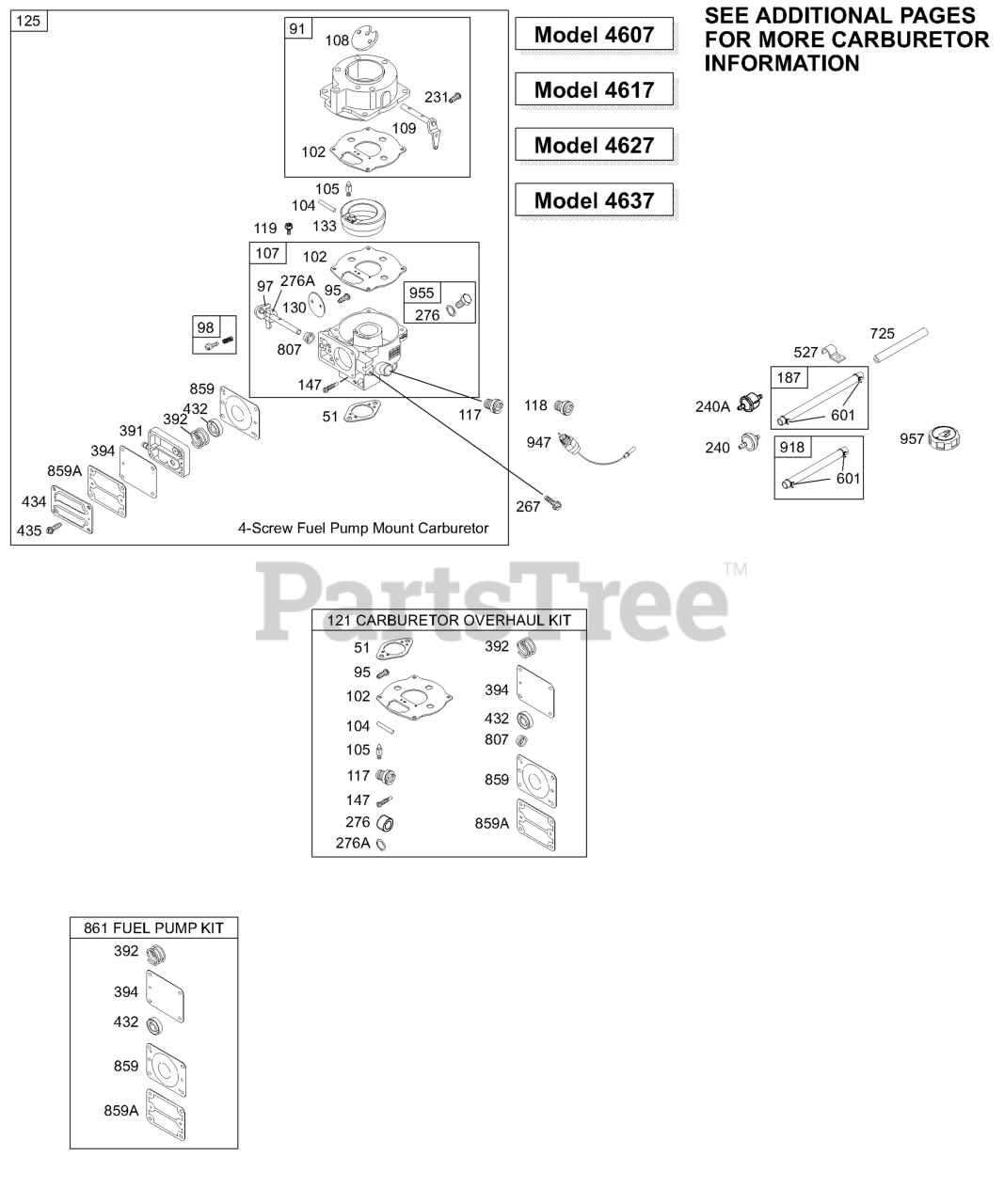

463707-0159-E1 - Briggs & Stratton Vertical Engine Carburetor 1, Kit/Gasket Sets - Carburetor 1, Kit/Gasket Sets - Fuel Pump 1 Parts Diagram

Vertical Engine

Carburetor 1, Kit/Gasket Sets - Carburetor 1, Kit/Gasket Sets - Fuel Pump 1 Parts Diagram

  • Title

51

Briggs & Stratton 692278

Gasket-Intake

$5.49

$

In Stock, Qty 9

0

91

Briggs & Stratton 693483

Body-Upper Carburetor

$

$

Not available

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 693485

Shaft-Throttle

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807923

Kit-Idle Speed

$10.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 693509

Gasket-Carburetor Body

$9.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 693506

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 692078

Valve-Float Needle
(Superseded to 808798)

$

$

Not available

107

Briggs & Stratton 693482

Body-Lower Carburetor

$

$

Not available

108

Briggs & Stratton 693505

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 693498

Shaft-Choke

$25.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 693538

Jet-Main

Note: (Standard)

$9.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

Screw

Note: (UPPER TO LOWER CARBURETOR BODY)

$3.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 693501

Kit-Carburetor Overhaul
(Superseded to 693503)

Note: (Used On 4 Screw Fuel Pump Mount Carburetors)

$

$

Not available

125

Briggs & Stratton 693479

Carburetor

Note: (4 Screw Fuel Pump Mount)

$411.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 693504

Valve-Throttle

$5.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 693512

Float-Carburetor

$20.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 693508

Jet-Pilot

$

$

Not available

187

Briggs & Stratton 499167

Line-Fuel
(Superseded to 841589)

Note: (Cut To Required Length)

$38.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

267

Briggs & Stratton 690316

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 693497

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

Usually ships in 2-12 days

0

276A

Briggs & Stratton 693510

Washer-Sealing

Note: (Foam)

$6.99

$

Usually ships in 2-12 days

0

391

Briggs & Stratton 693487

Body-Fuel Pump

$40.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 693491

Spring-Pump Diaphragm

$5.49

$

Usually ships in 2-12 days

0

394

Briggs & Stratton 693489

Diaphragm-Carburetor

$10.99

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 693492

Cap-Spring

$

$

Not available

434

Briggs & Stratton 693493

Cover-Diaphragm

$11.99

$

Usually ships in 2-12 days

0

435

Briggs & Stratton 693494

Screw

Note: (Diaphragm Cover)

$5.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

Note: (Zinc Plate)(Spring Wire)

$3.49

$

In Stock, Qty 20+

0

725

Briggs & Stratton 280866

Shield-Heat

$

$

Not available

807

Briggs & Stratton 693511

Spacer-Throttle

$7.99

$

Usually ships in 2-12 days

0

859

Briggs & Stratton 693488

Gasket-Carburetor Pump

$27.99

$

Usually ships in 2-12 days

0

859A

Briggs & Stratton 693490

Gasket-Carburetor Pump

$9.49

$

Usually ships in 2-12 days

0

861

Briggs & Stratton 693502

Kit-Fuel Pump

Note: (Used On 4 Screw Fuel Pump Mount Carburetors)

$34.99

$

In Stock, only 2 left!

0

918

Briggs & Stratton 393815

Hose-Vacuum
(Superseded to 791880)

Note: (Cylinder To Impulse Pump)(Cut to Required Length)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 693495

Solenoid-Fuel

$185.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 693513

Plug-Carburetor

$

$

Not available
