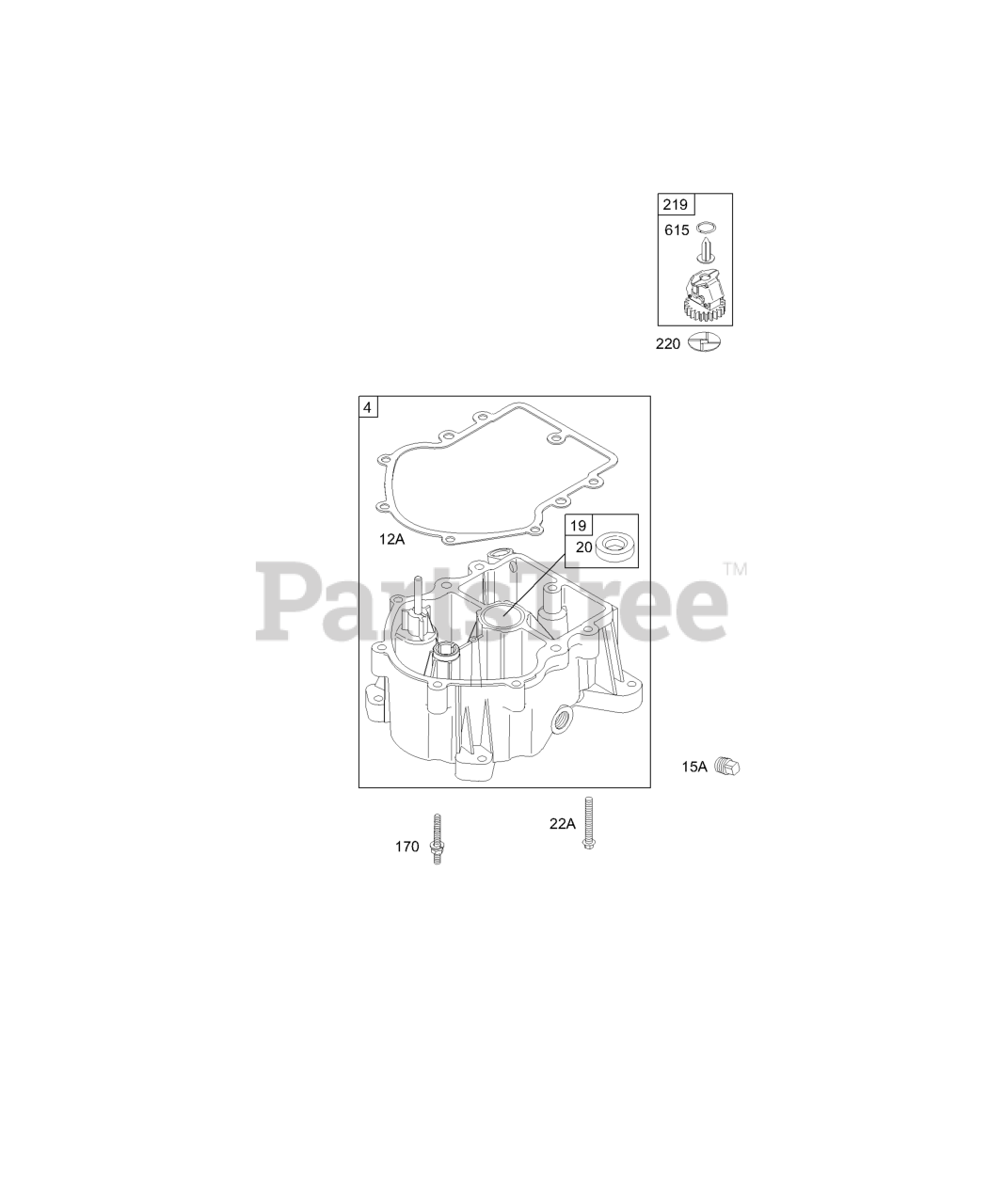

462707-0100-E1 - Briggs & Stratton Vertical Engine Sump Parts Diagram

Vertical Engine

Sump Parts Diagram

  • Title
4

Briggs & Stratton 493304

Sump-Engine

Note: (Splash Lube)

$

$

Not available

12A

Briggs & Stratton 692292

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$11.99

$

Usually ships in 2-12 days

0

12A

Briggs & Stratton 271189

Gasket-Crankcase

Note: (.009" Thick)

$11.99

$

Usually ships in 2-12 days

0

12A

Briggs & Stratton 271188

Gasket-Crankcase

Note: (.005" Thick)

$11.99

$

In Stock, Qty 5

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8" Standard)

$5.99

$

In Stock, Qty 14

0

19

Briggs & Stratton 399264

Kit-Bushing/Seal

Note: (PTO Side)

$

$

Not available

20

Briggs & Stratton 291675S

Seal-Oil

Note: (PTO Side)

$6.99

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 693972

Screw
(Superseded to 691103)

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 4 left!

0

170

Briggs & Stratton 691695

Stud

Note: (Crankcase Cover/Sump) (Used In Positions 1 And 7)

$6.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 696376

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 690412

Washer

Note: (Governor Gear)

$

$

Not available

615

Briggs & Stratton 690317

Retainer-Governor Shaft
(Superseded to 698290)

$4.49

$

In Stock, Qty 9

0
