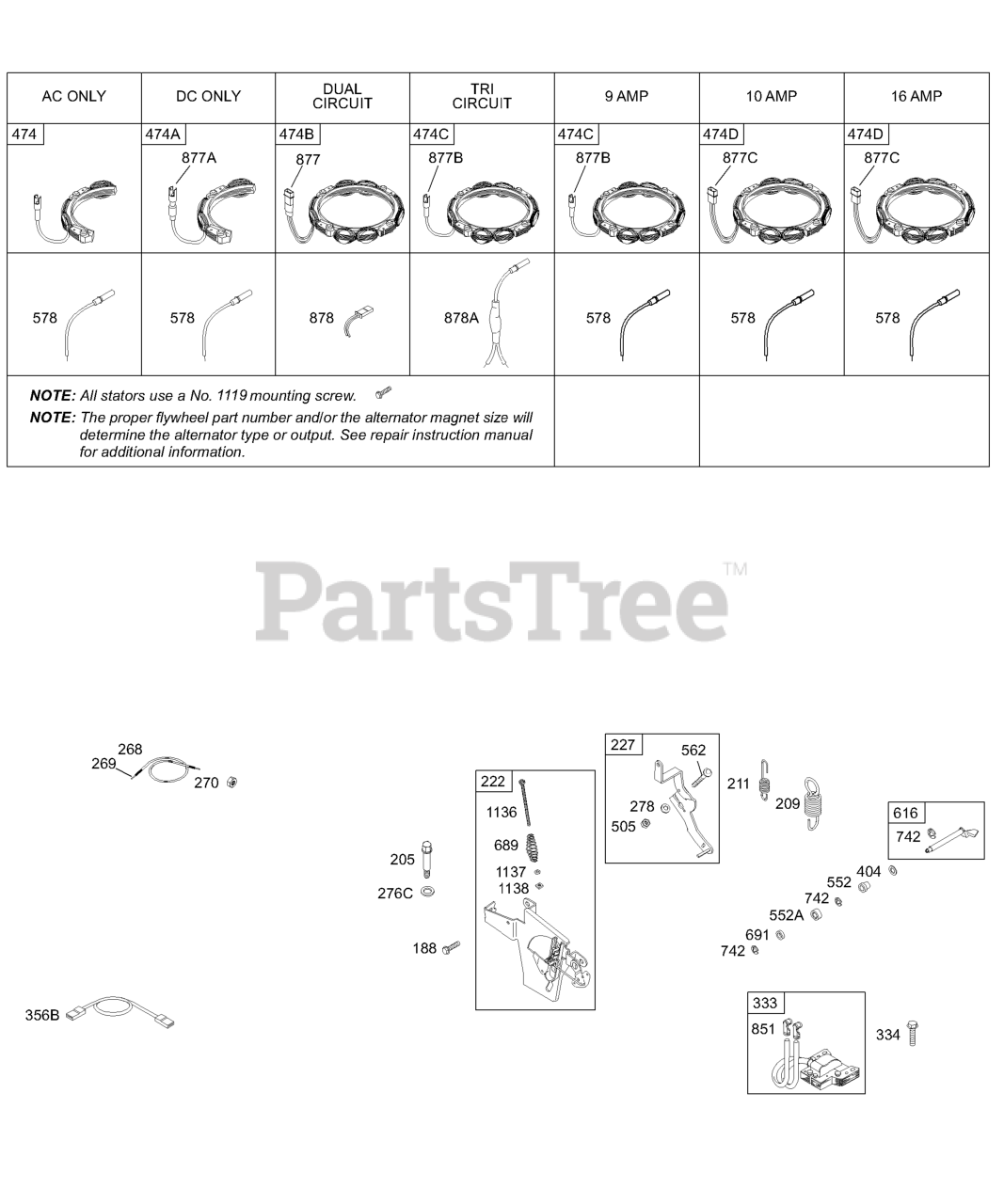

462707-0100-E1 - Briggs & Stratton Vertical Engine Alternator, Controls Parts Diagram

Vertical Engine

Alternator, Controls Parts Diagram

  • Title

188

Briggs & Stratton 691003

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 9

0

205

Briggs & Stratton 690322

Screw

Note: (Bell Crank)

$

$

Not available

209

Briggs & Stratton 690558

Spring-Governor

Note: (Brown)

$9.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691807

Spring-Governed Idle

$10.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 691366

Bracket-Control

$

$

Not available

227

Briggs & Stratton 690762

Lever-Governor Control

$8.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

278

Briggs & Stratton 692810

Washer

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 394891

Armature-Magneto
(Superseded to 590781)

Note: (MAGNETRON)

$75.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356B

Briggs & Stratton 691423

Wire-Stop

Note: (1 Wire, 10-3/4" Long)(2 Snap Connect Insulated Female Blade Terminals)

$10.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690442

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, Qty 5

0

474B

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 8

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690553

BUSHING, Governor Crank

$7.49

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 491530

Crank-Governor

$

$

Not available

689

Briggs & Stratton 690555

Spring-Friction

$

$

Not available

691

Briggs & Stratton 690657

Seal-Governor Shaft
(Superseded to 790574)

$5.99

$

In Stock, Qty 20+

0

742

Briggs & Stratton 690328

RETAINER, E Ring

$4.49

$

In Stock, Qty 6

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 691237

Harness-Alternator
(Superseded to 398661)

Note: (2 Wires, 48-1/2", And 48-1/2" Long)(Snap Connect Female Pin Terminal,And 2 Bare Wire Ends)

$34.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1136

Briggs & Stratton 690329

Screw

Note: (Control Bracket) (High Speed Control)

$3.99

$

Usually ships in 2-12 days

0

1137

Briggs & Stratton 690390

Washer

Note: (Control Bracket) (High Speed Control)

$3.99

$

Usually ships in 2-12 days

0

1138

Briggs & Stratton 690330

Nut

Note: (Control Bracket) (High Speed Control)

$3.49

$

In Stock, only 2 left!

0
