46200 (30-H) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

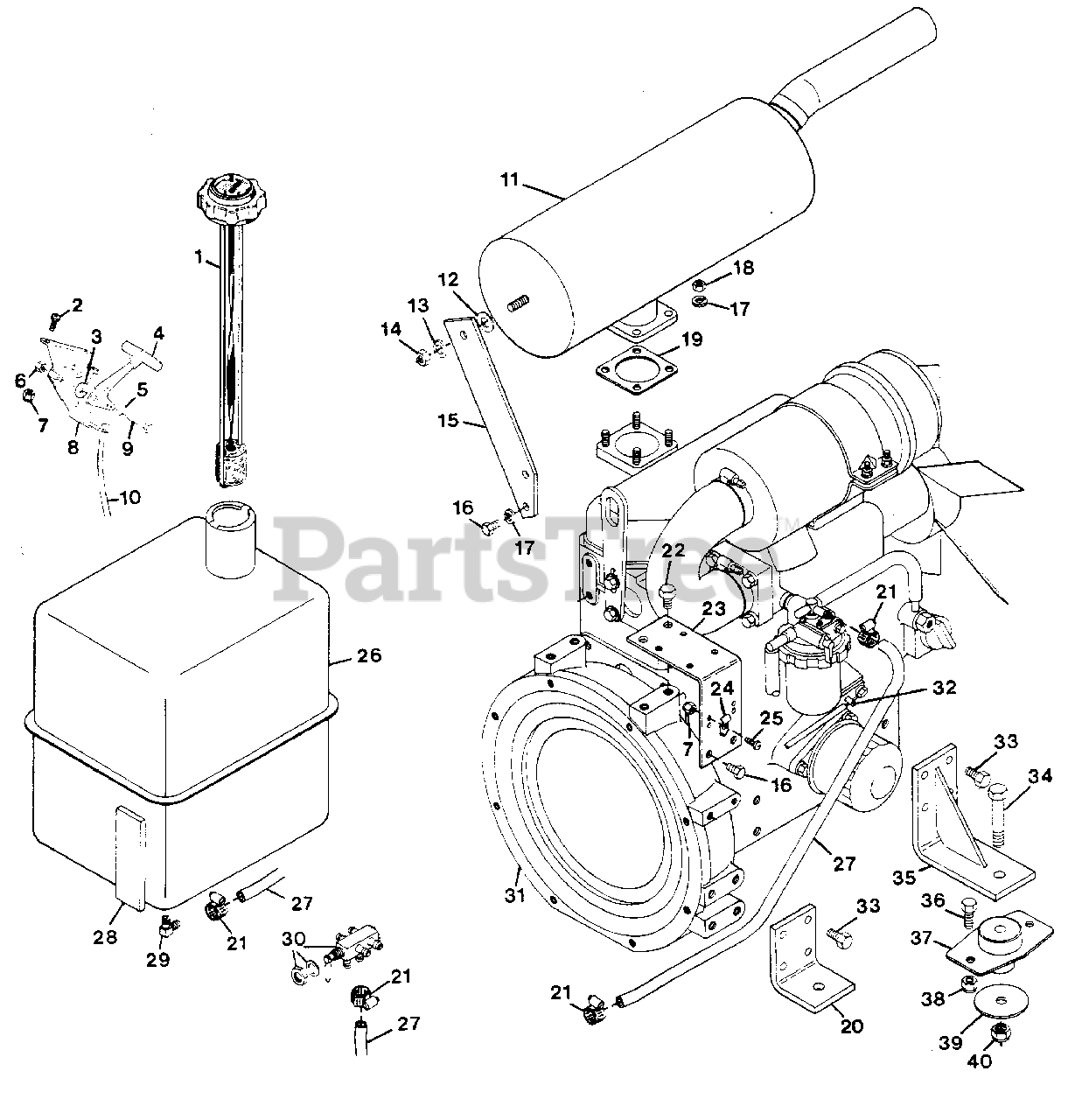

ENGINE, FUEL AND EXHAUST Parts Diagram

  • Title

1

Gravely 045040

Gauge, Fuel
(Superseded to 20816100)

$

$

Not available

2

Gravely 159920

Screw, Machine 10-24x.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

3

Gravely 011772

Washer, Friction
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 011773

Assembly, Knob and Lever
(Superseded to 06917100)

$

$

Not available

5

Gravely 011774

Washer, Spring
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 416430

Nut, Lock 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

7

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 011770

Bracket, Mounting L.H.
(Superseded to 03493300)

$

$

Not available

9

Gravely 181566

Bolt, Hex 1/4-28x.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 045051

Assembly, Conduit
(Superseded to 06927700)

$

$

Not available

11

Gravely 045021

Muffler, Yanmar
(Superseded to 08961200)

$

$

Not available

12

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 045026

Brace, Muffler
(Superseded to 08961500)

$

$

Not available

16

Gravely 046360

Bolt, Hex M8 x 1.25 16mm
(Superseded to 05956300)

$

$

Not available

17

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 046363

Nut, Hex M8 x 1.25
(Superseded to 06538600)

$

$

Not available

19

Gravely 047853

Gasket, Exhaust
(Superseded to 20875800)

$

$

Not available

20

Gravely 044918

Mount, Engine
(Superseded to 08958800)

$

$

Not available

21

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 023215

Bolt, Hex M10 x 1.5 16mm
(Superseded to 05941600)

$

$

Not available

23

Gravely 044487

Bracket, Control
(Superseded to 08950700)

$

$

Not available

24

Gravely 045242

Clip
(Superseded to 06928000)

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

26

Gravely 044593

Tank, Fuel
(Superseded to 20865100)

$

$

Not available

27

Gravely 021134

Fuel Line .5 OD x .25 ID,
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

29

Gravely 014745

Elbow, Hose
(Superseded to 08900300)

$

$

Not available

30

Gravely 045278

Valve, Fuel Control
(Superseded to 20817300)

$

$

Not available

31

Gravely 044564

Engine, Yanmar

$

$

Not available

32

Gravely 010834

Clamp, Swivel Wire
(Superseded to 06423600)

$

$

Not available

33

Gravely 046359

Bolt, Hex M10 x 1.5 20mm
(Superseded to 05967600)

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 180188

Bolt, Hex 1/2-13x2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 044917

Weldment, Engine Mount
(Superseded to 08958700)

$

$

Not available

36

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 044473

Mount, Engine
(Superseded to 07529700)

$

$

Not available

38

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

39

Gravely 044476

Washer, Snubbing
(Superseded to 06428100)

$

$

Not available

40

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0
