461707-0143-E1 - Briggs & Stratton Vertical Engine Electric Starter Parts Diagram

Vertical Engine

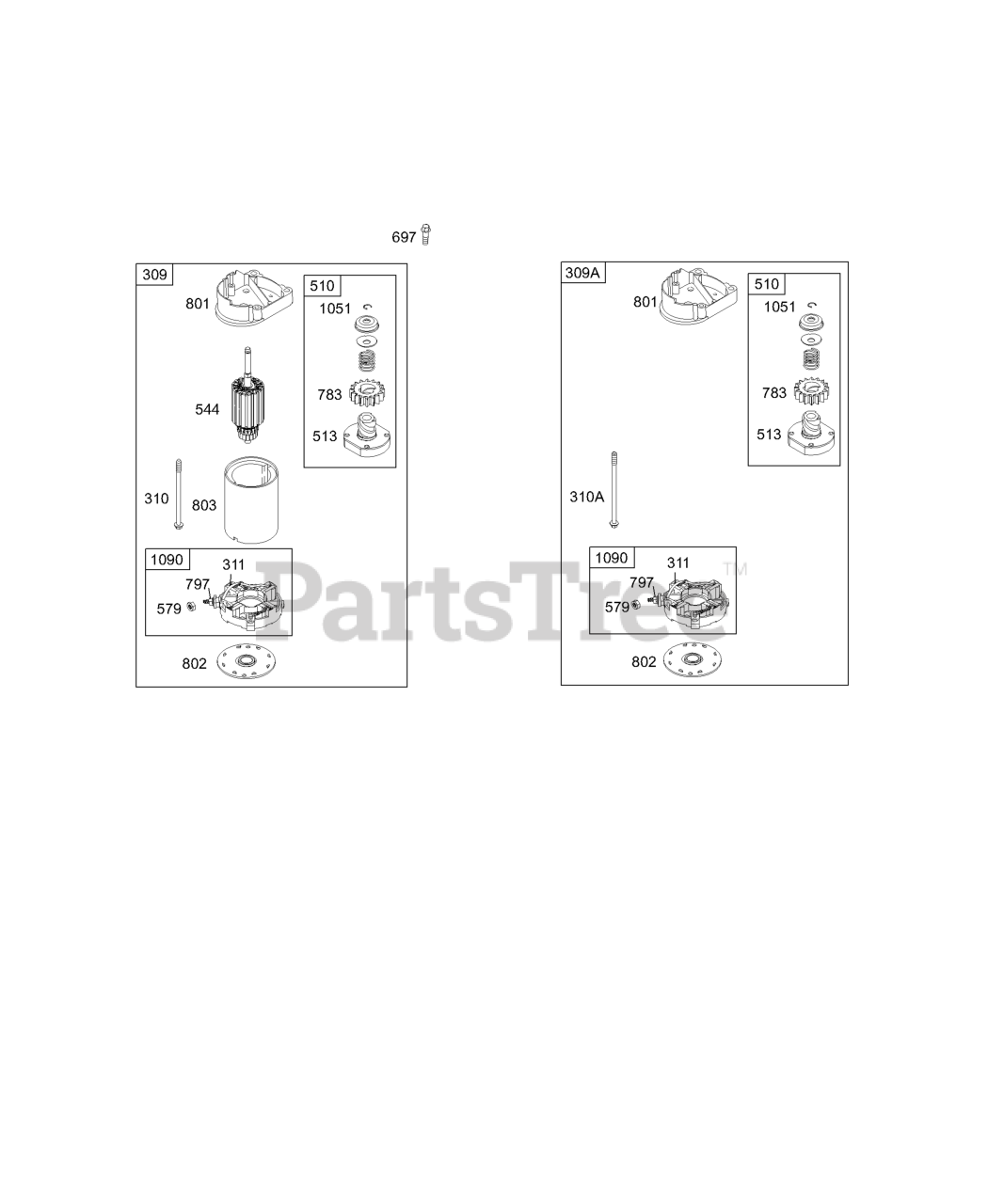

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 497596

Motor-Starter

Note: (3 5/8" Housing Length)

$122.99

$

In Stock, only 1 left!

0

309A

Briggs & Stratton 498148

Motor-Starter

Note: (4-3/8" Housing Length)

$184.99

$

In Stock, only 2 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor) (3 5/8" Housing Length)

$4.49

$

In Stock, Qty 7

0

310A

Briggs & Stratton 691263

Screw

Note: (Starter Motor) (4-3/8" Housing Length)

$

$

Not available

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

In Stock, only 2 left!

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 1 left!

0

544

Briggs & Stratton 692034

Armature-Starter

Note: (3 5/8" Housing Length)

$

$

Not available

579

Briggs & Stratton 690958

NUT

Note: (Starter Cable)

$3.49

$

In Stock, only 2 left!

0

697

Briggs & Stratton 691625

Screw
(Superseded to 691103)

Note: (Drive Cap)

$3.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693059

Gear-Pinion
(Superseded to 695708)

$5.99

$

In Stock, Qty 20+

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691967

Cap-Drive

$

$

Not available

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

Note: (3 5/8" Housing Length)

$

$

Not available

803

Briggs & Stratton BLANK

Housing-Starter

Note: (4-3/8" Housing Length)(Service With Reference 309A, Part Number498148)

$

$

Currently unavailable

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 5

0
