461707-0143-E1 - Briggs & Stratton Vertical Engine Carburetor 2, Kit/Gasket Sets - Carburetor 2, Kit/Gasket Sets - Fuel Pump 2 Parts Diagram

Vertical Engine

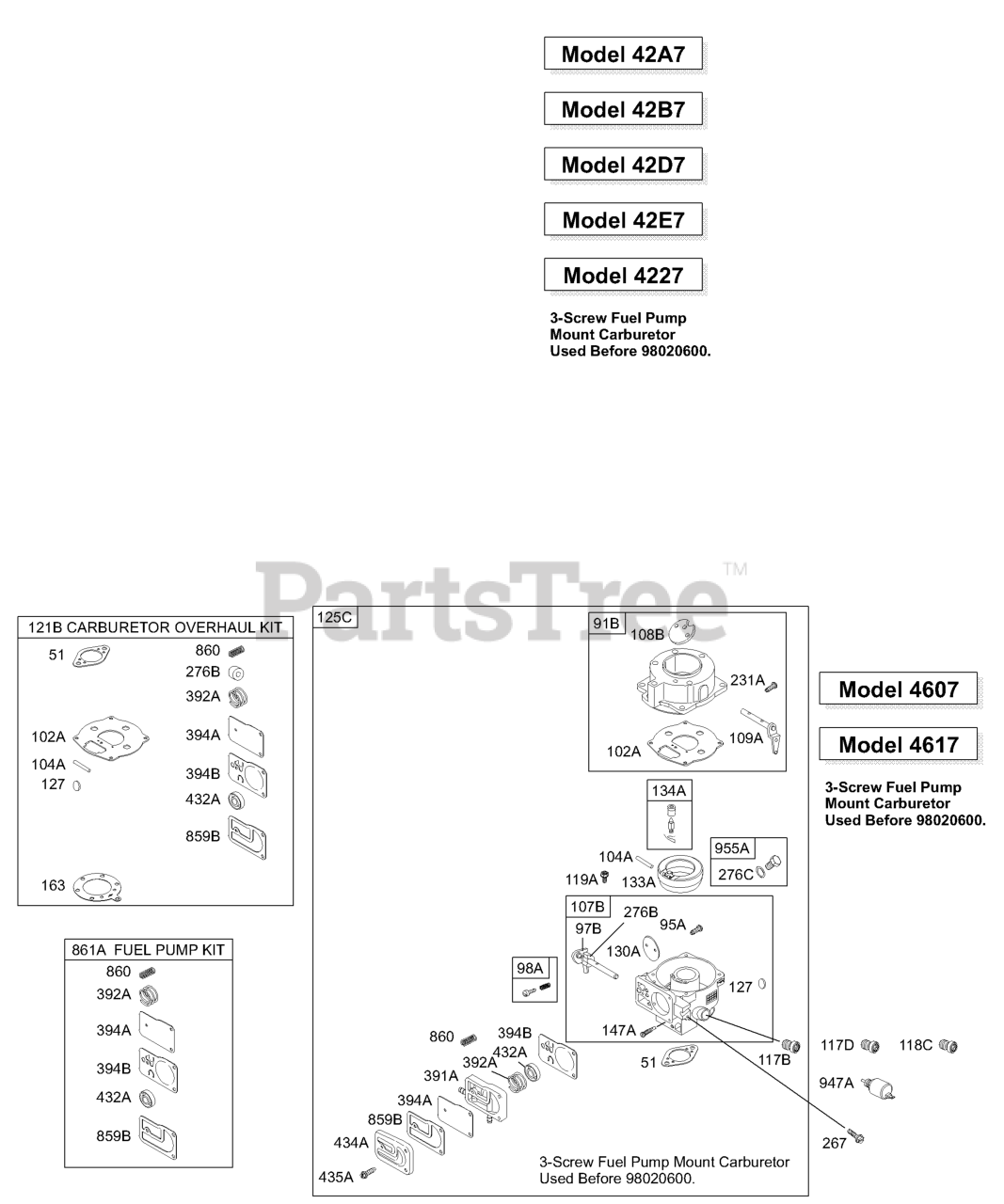

Carburetor 2, Kit/Gasket Sets - Carburetor 2, Kit/Gasket Sets - Fuel Pump 2 Parts Diagram

  • Title

51

Briggs & Stratton 692278

Gasket-Intake

$5.49

$

In Stock, Qty 8

0

91B

Briggs & Stratton 495035

Body-Upper Carburetor
(Superseded to 694026)

$

$

Not available

95A

Briggs & Stratton 691437

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 3 left!

0

97B

Briggs & Stratton 690629

Shaft-Throttle

$

$

Not available

98A

Briggs & Stratton 693942

Kit-Idle Speed

$

$

Not available

102A

Briggs & Stratton 273186S

Gasket-Carburetor Body

$6.99

$

In Stock, Qty 8

0

104A

Briggs & Stratton 691775

Pin-Float Hinge

$3.99

$

In Stock, only 1 left!

0

107B

Briggs & Stratton 491543

Body-Lower Carburetor

$

$

Not available

108B

Briggs & Stratton 223534

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109A

Briggs & Stratton 691957

Shaft-Choke

$45.99

$

Usually ships in 2-12 days

0

117B

Briggs & Stratton 691773

Jet-Main

Note: (Standard)

$

$

Not available

117D

Briggs & Stratton 691256

Jet-Main

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

118C

Briggs & Stratton 232152

Jet-Main

Note: (High Altitude)

$

$

Not available

119A

Briggs & Stratton 691090

Screw

Note: (UPPER TO LOWER CARBURETOR BODY)

$3.99

$

Usually ships in 2-12 days

0

121B

Briggs & Stratton 694056

Kit-Carburetor Overhaul

Note: (Used On 3 Screw Fuel Pump Mount Carburetors) Used Before Code Date 98091400

$34.99

$

Usually ships in 2-12 days

0

125C

Briggs & Stratton BLANK

Carburetor

Note: (3 Screw Fuel Pump Mount)(Service With Reference 125)

$

$

Currently unavailable

127

Briggs & Stratton 691739

Plug-Welch

$4.49

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 691727

Valve-Throttle

$6.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 692265

Float-Carburetor

$11.99

$

In Stock, Qty 5

0

134A

Briggs & Stratton 394683

Kit-Needle/Seat

$12.99

$

In Stock, Qty 6

0

147A

Briggs & Stratton 691431

Jet-Pilot

$13.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 690273

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 7

0

231A

Briggs & Stratton 691437

Screw

Note: (Choke Valve)

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 690316

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

276B

Briggs & Stratton 691872

Washer-Sealing

Note: (Foam)

$

$

Not available

276C

Briggs & Stratton 691319

Washer-Sealing

Note: (Carburetor Plug)

$5.49

$

In Stock, only 1 left!

0

391A

Briggs & Stratton 691896

Body-Fuel Pump

$15.99

$

In Stock, Qty 5

0

392A

Briggs & Stratton 691801

Spring-Pump Diaphragm

$4.99

$

In Stock, Qty 8

0

394A

Briggs & Stratton 691871

Diaphragm-Carburetor

$6.49

$

Usually ships in 2-12 days

0

394B

Briggs & Stratton 272638S

Diaphragm-Carburetor

$6.99

$

In Stock, only 3 left!

0

432A

Briggs & Stratton 690766

Cap-Spring

$4.99

$

In Stock, only 1 left!

0

434A

Briggs & Stratton 690434

Cover-Diaphragm

$

$

Not available

435A

Briggs & Stratton 691085

Screw

Note: (Diaphragm Cover)

$

$

Not available

859B

Briggs & Stratton 691873

Gasket-Carburetor Pump

$8.49

$

Usually ships in 2-12 days

0

860

Briggs & Stratton 691799

Spring-Diaphragm

$7.49

$

In Stock, only 3 left!

0

861A

Briggs & Stratton 393397

Kit-Fuel Pump

Note: (Used On 3 Screw Fuel Pump Mount Carburetors) Used Before Code Date 98091400

$

$

Not available

947A

Briggs & Stratton 397266

Solenoid-Fuel

$

$

Not available

955A

Briggs & Stratton 397882

Plug-Carburetor

$

$

Not available
