461604x99A - Briggs & Stratton 46" Garden Tractor (2004) (AAFES) Motion Drive Parts Diagram

46" Garden Tractor

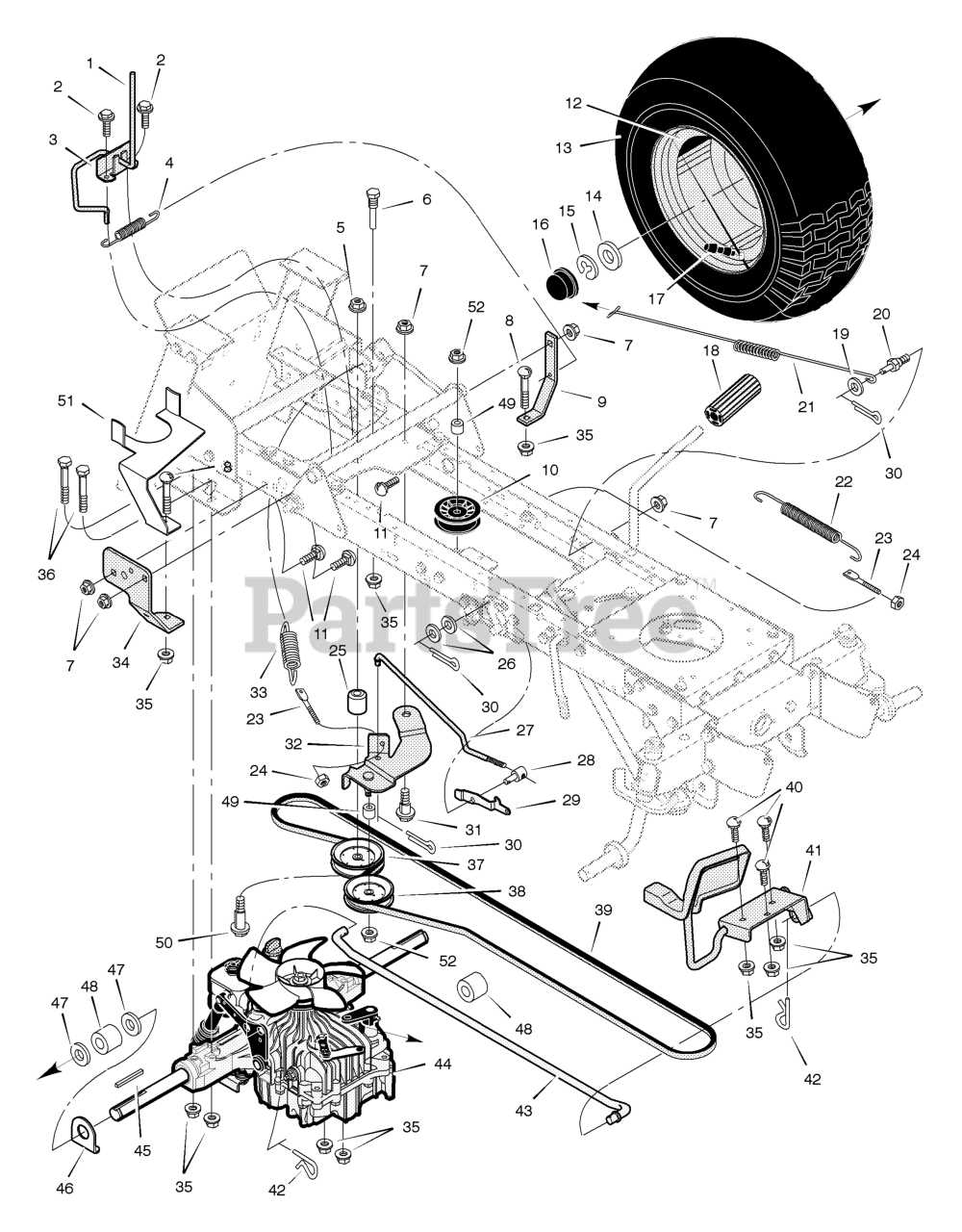

Motion Drive Parts Diagram

  • Title

1

Murray 690238

Rod, Cable

$3.49

$

Usually ships in 2-12 days

0

2

Murray 26X249MA

Screw

$

$

Not available

3

Murray 1001214 Z

Bracket, Dump Valve

$

$

Currently unavailable

4

Murray 165X136

Spring, Extension

$

$

Not available

5

Murray 015X41MA

Locknut

$5.49

$

Usually ships in 2-12 days

0

6

Murray 020619MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

7

Murray 015X84MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 002X84

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 690231E701

Bracket, Torque

$27.99

$

Usually ships in 2-12 days

0

10

Murray 690393

Pulley, Idler

$34.99

$

Usually ships in 2-12 days

0

11

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

12

Murray 093263650

Assembly, Wheel and Tire

$376.99

$

Usually ships in 2-12 days

0

13

Murray 407920

Tire Only *

$376.99

$

Usually ships in 2-12 days

0

14

Murray 17X193MA

Washer

$3.99

$

In Stock, only 1 left!

0

15

Murray 011X23MA

E-Ring

$4.49

$

In Stock, only 3 left!

0

16

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0

17

Murray 024373MA

Stem, Valve

$

$

Not available

18

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

19

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

20

Murray 690243

Stud, Threaded

$

$

Not available

21

Murray 165X135

Spring, Extension

$17.99

$

Usually ships in 2-12 days

0

22

Murray 165X133MA

Spring, Extension

$20.99

$

Usually ships in 2-12 days

0

23

Murray 094042ZMA

Stud, Spring Mount

$4.49

$

Usually ships in 2-12 days

0

24

Murray 015X79MA

Locknut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

25

Murray 690235

Spacer
(Superseded to 690968)

$10.99

$

In Stock, Qty 20+

0

26

Murray 017X48MA

Washer

$8.49

$

Usually ships in 2-12 days

0

27

Murray 690234

Rod, Clutch

$

$

Not available

28

Murray 094815ZMA

Nut, Adjusting

$21.99

$

Usually ships in 2-12 days

0

29

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

30

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

31

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

32

Murray 690416 Z

Assembly, Idler Arm

$

$

Currently unavailable

33

Murray 165X116MA

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

34

Murray 690240E701

Bracket, Torque

$49.99

$

Usually ships in 2-12 days

0

35

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

37

Murray 023339MA

Pulley, Backside Idler

$

$

Not available

38

Murray 690410MA

Pulley, "V" Idler

$19.99

$

In Stock, only 1 left!

0

39

Murray 037X97MA

Belt, Drive

$62.99

$

In Stock, only 1 left!

0

40

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

41

Murray 690216E700

Assembly, Pedal

$

$

Currently unavailable

42

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

Murray 690241

Rod, Hydro Control

$6.99

$

Usually ships in 2-12 days

0

44

Transaxle, Hydro Tuff-Torq **

$

$

Not available

45

Murray 024039MA

Key, Square

$4.49

$

Usually ships in 2-12 days

0

46

Murray 690242E701

Washer, Thrust

$9.99

$

Usually ships in 2-12 days

0

47

Murray 17X118 Z

WASHER, 1-1.3 16G FLT
(Superseded to 17X118ZMA)

$3.49

$

Usually ships in 2-12 days

0

48

Murray 690419 Z

Spacer

$

$

Currently unavailable

49

Murray 690369MA

Spacer

$

$

Not available

50

Murray 01X165

Bolt

$3.99

$

Usually ships in 2-12 days

0

51

Murray 1001857 Z

Guide, Belt

$

$

Currently unavailable

52

Murray 015X98MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
