461603x48A - Briggs & Stratton 46" Garden Tractor (2003) (Mills) Seat Deck Parts Diagram

46" Garden Tractor

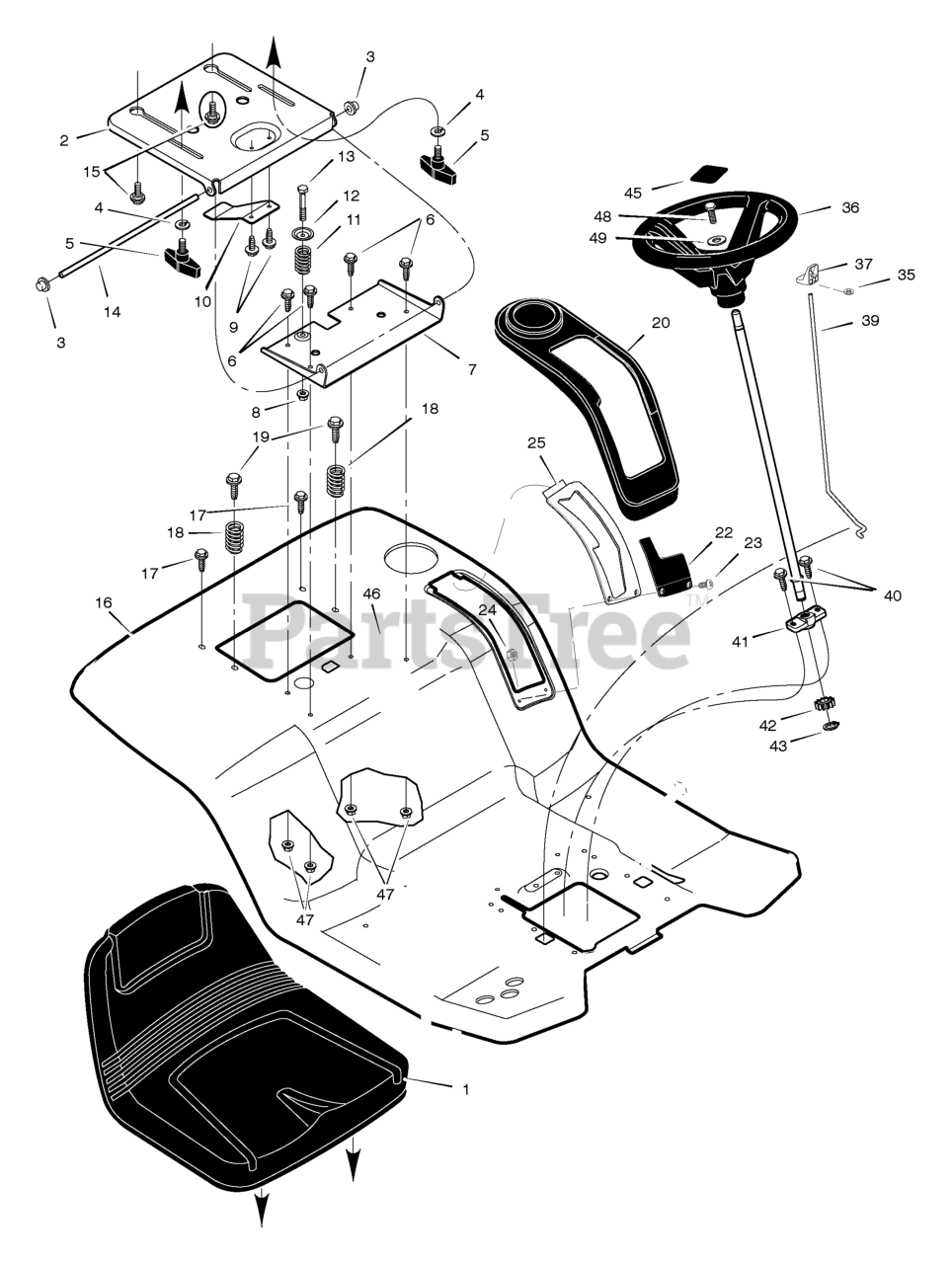

Seat Deck Parts Diagram

  • Title

1

Murray 095415MA

Seat

$433.99

$

Usually ships in 2-12 days

0

2

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

3

Murray 028X23MA

Push-On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

4

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

7

Murray 1001648E701MA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

8

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

9

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

10

Murray 094057MA

Spring, Leaf

$5.99

$

Usually ships in 2-12 days

0

11

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

12

Murray 094155 Z

Washer, Cup

$

$

Currently unavailable

13

Murray 009X55MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

15

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

16

Murray 094629E700

Deck, Seat

$

$

Currently unavailable

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30MA

Spring

$15.99

$

Usually ships in 2-12 days

0

19

Murray 26X249MA

Screw

$

$

Not available

20

Murray 094469

Cover, Detent with Cup Holder

$43.99

$

Usually ships in 2-12 days

0

22

Murray 094483

Cover, Detent

$

$

Currently unavailable

23

Murray 009X47MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

24

Murray 015X81MA

Nut

$4.99

$

Usually ships in 2-12 days

0

25

Murray 1001671E700

Plate, Detent

$

$

Currently unavailable

35

Murray 028X49MA

Nut, Push

$3.99

$

In Stock, Qty 13

0

36

Murray 1001226MA

Wheel, Steering

$98.99

$

Usually ships in 2-12 days

0

37

Murray 095315MA

Knob, Parking Brake

$9.49

$

Usually ships in 2-12 days

0

39

Murray 1001217 Z

Rod, Parking Brake

$

$

Currently unavailable

40

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

41

Murray 094124MA

Bearing, Lower

$14.99

$

In Stock, only 1 left!

0

42

Murray 690183MA

Gear, Pinion

$

$

Not available

43

Murray 011X25MA

E-Ring

$4.49

$

In Stock, Qty 5

0

44

Murray 690625

Shaft, Steering

$49.99

$

In Stock, only 1 left!

0

45

Murray 1001441MA

Insert, Steering Wheel

$5.99

$

Usually ships in 2-12 days

0

47

Murray 15X123MA

Nut

$3.99

$

Usually ships in 2-12 days

0

48

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

49

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

--

Murray F-030767L

Manual and Parts List

$

$

Currently unavailable
