461603x48A - Briggs & Stratton 46" Garden Tractor (2003) (Mills) Front Frame Assembly Parts Diagram

46" Garden Tractor

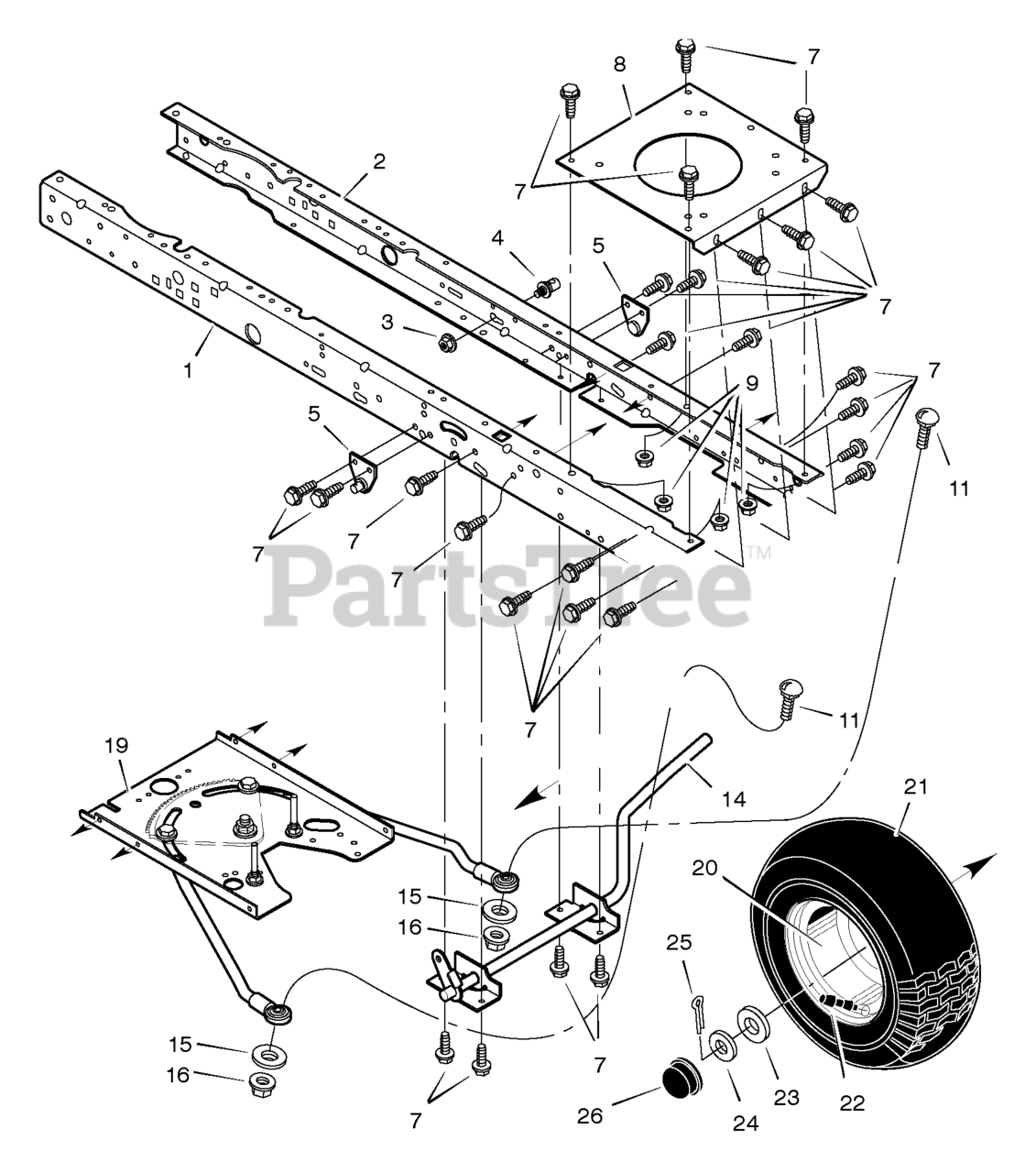

Front Frame Assembly Parts Diagram

  • Title

1

Murray 1001268E701

Frame, Right

$

$

Not available

2

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

3

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 690182MA

Stud, Swivel

$11.99

$

Usually ships in 2-12 days

0

5

Murray 690406E700

Bracket Ass'y, Suspension

$

$

Not available

7

Murray 26X249MA

Screw

$

$

Not available

8

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

9

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 002X87

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

14

Murray 690415E701

Lever, Brake/Clutch

$

$

Currently unavailable

15

Murray 17X152

Washer

$5.49

$

Usually ships in 2-12 days

0

16

Murray 015X41MA

Nut

$5.49

$

Usually ships in 2-12 days

0

19

Assembly, Steering *

$

$

Not available

20

Murray 092644650

Wheel & Tire Assembly

$

$

Not available

--

Murray 093064MA

Bearing, Wheel

$

$

Not available

21

Murray 024393MA

Tire *

$116.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

22

Murray 024373MA

Stem, Valve

$

$

Not available

23

Murray 17X194MA

Washer

$8.49

$

In Stock, only 2 left!

0

24

Murray 17X114MA

Washer

$3.99

$

Usually ships in 2-12 days

0

25

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

26

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0
