46108x89A - Yard King 46" Garden Tractor (2000) Mower Housing Parts Diagram

46" Garden Tractor

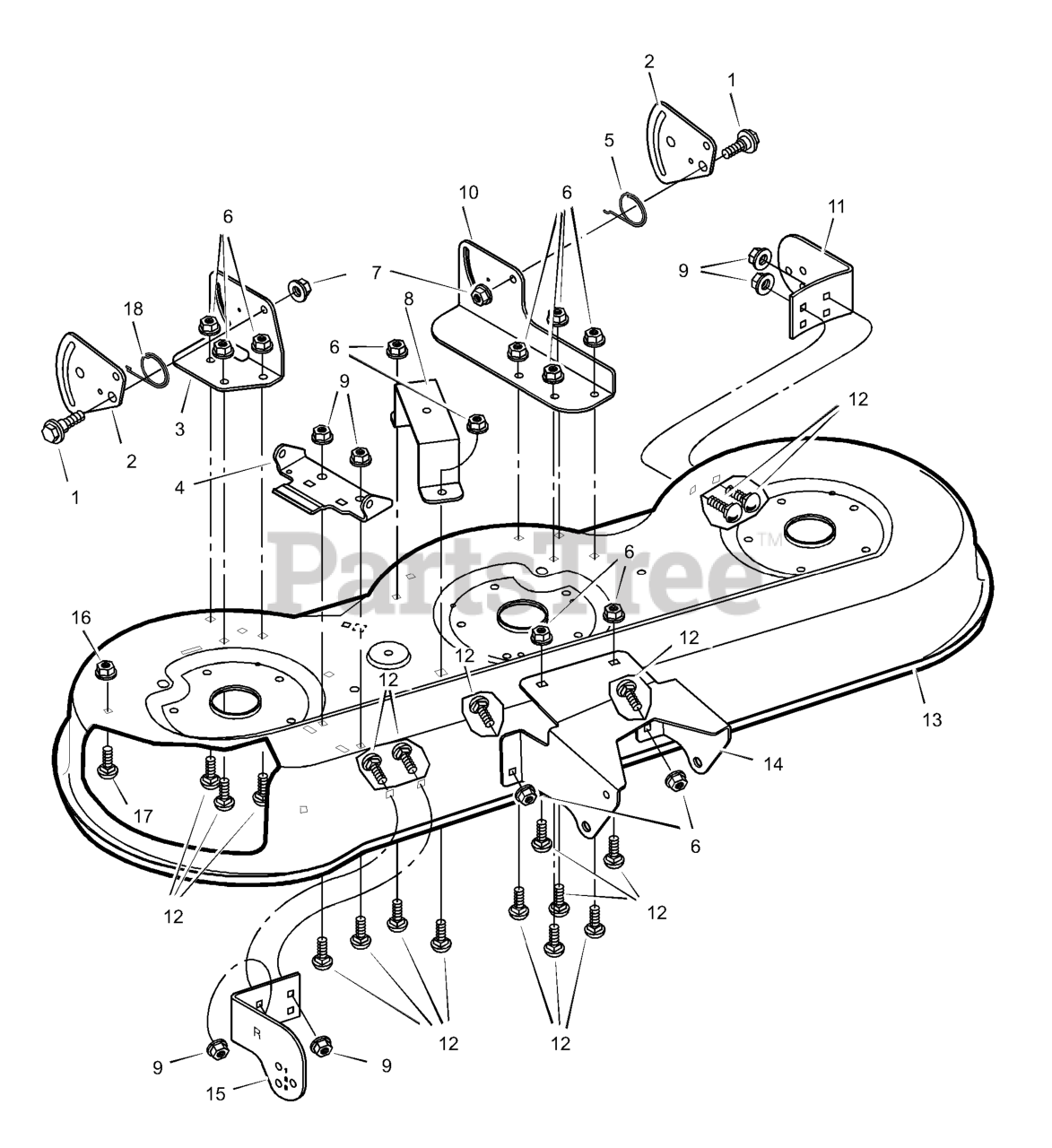

Mower Housing Parts Diagram

  • Title

1

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

2

Murray 690128E700

Plate, Suspension

$11.99

$

Usually ships in 2-12 days

0

3

Murray 094598E700

Bracket, Right Rear

$

$

Currently unavailable

4

Murray 092014E700

Bracket, Hinge

$

$

Currently unavailable

5

Murray 166X43MA

Spring, Left

$4.99

$

In Stock, only 2 left!

0

6

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 094601E700

Bracket, Bell Crank

$

$

Currently unavailable

9

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 18

0

10

Murray 094600E700MA

Bracket, Left Lifter

$25.99

$

Usually ships in 2-12 days

0

11

Murray 094919E700

Bracket, Left Gauge Wheel

$

$

Currently unavailable

12

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

13

Murray 690204E700

Housing, Blade

$

$

Currently unavailable

14

Murray 094997SEMA

Bracket, Front Deck

$49.99

$

Usually ships in 2-12 days

0

15

Murray 094918E700

Bracket, Right Gauge Wheel

$

$

Currently unavailable

16

Murray 028X64MA

Retainer
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Murray 002X74MA

Bolt, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

18

Murray 166X42MA

Spring, Right

$4.99

$

In Stock, Qty 8

0
