46106x89B - Yard King 46" Garden Tractor (2000) Hood And Dash Parts Diagram

46" Garden Tractor

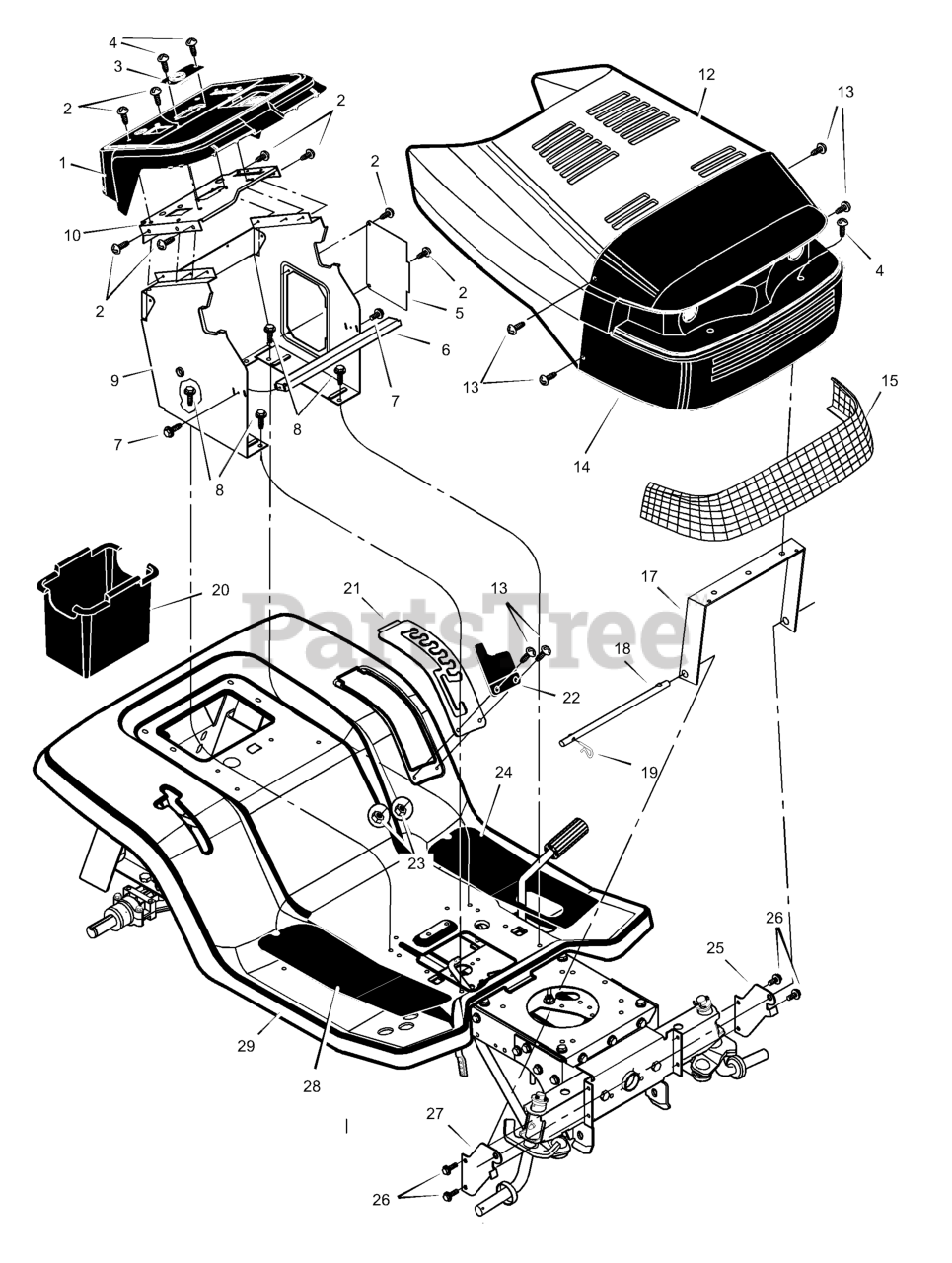

Hood And Dash Parts Diagram

  • Title

1

Murray 094034

Dash

$

$

Currently unavailable

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

3

Murray 094219MA

Bearing, Upper Steering

$

$

Not available

4

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

5

Murray 093007E700

Panel, Side Access

$

$

Currently unavailable

6

Murray 095081

Channel, Support

$

$

Not available

7

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

8

Murray 26X249MA

Screw

$

$

Not available

9

Murray 095082

Support, Dash

$

$

Not available

10

Murray 094221E701MA

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

12

Murray 093215E020

Hood

$

$

Currently unavailable

13

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

14

Murray 093243

Grille

Note: (Includes Lens)

$

$

Currently unavailable

15

Murray 093139MA

Lens

$95.99

$

Usually ships in 2-12 days

0

17

Murray 093190MA

Brace, Grille

$50.99

$

Usually ships in 2-12 days

0

18

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

19

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

20

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

21

Murray 094194E700

Plate, Lift Detent

$

$

Currently unavailable

22

Murray 094680MA

Cover

$7.49

$

In Stock, only 1 left!

0

23

Murray 015X81MA

Nut

$4.99

$

Usually ships in 2-12 days

0

24

Murray 094109

Mat, Left

$

$

Currently unavailable

25

Murray 690544E700

Support, Left Grille

$

$

Not available

26

Murray 26X249MA

Screw

$

$

Not available

27

Murray 690543E700

Support, Right Grille

$

$

Not available

28

Murray 094108

Mat, Right

$9.49

$

Usually ships in 2-12 days

0

29

Murray 095326E020

Deck, Seat

$

$

Currently unavailable
