46104x8D - Scotts 46" Garden Tractor (2002) Engine Mount Parts Diagram

46" Garden Tractor

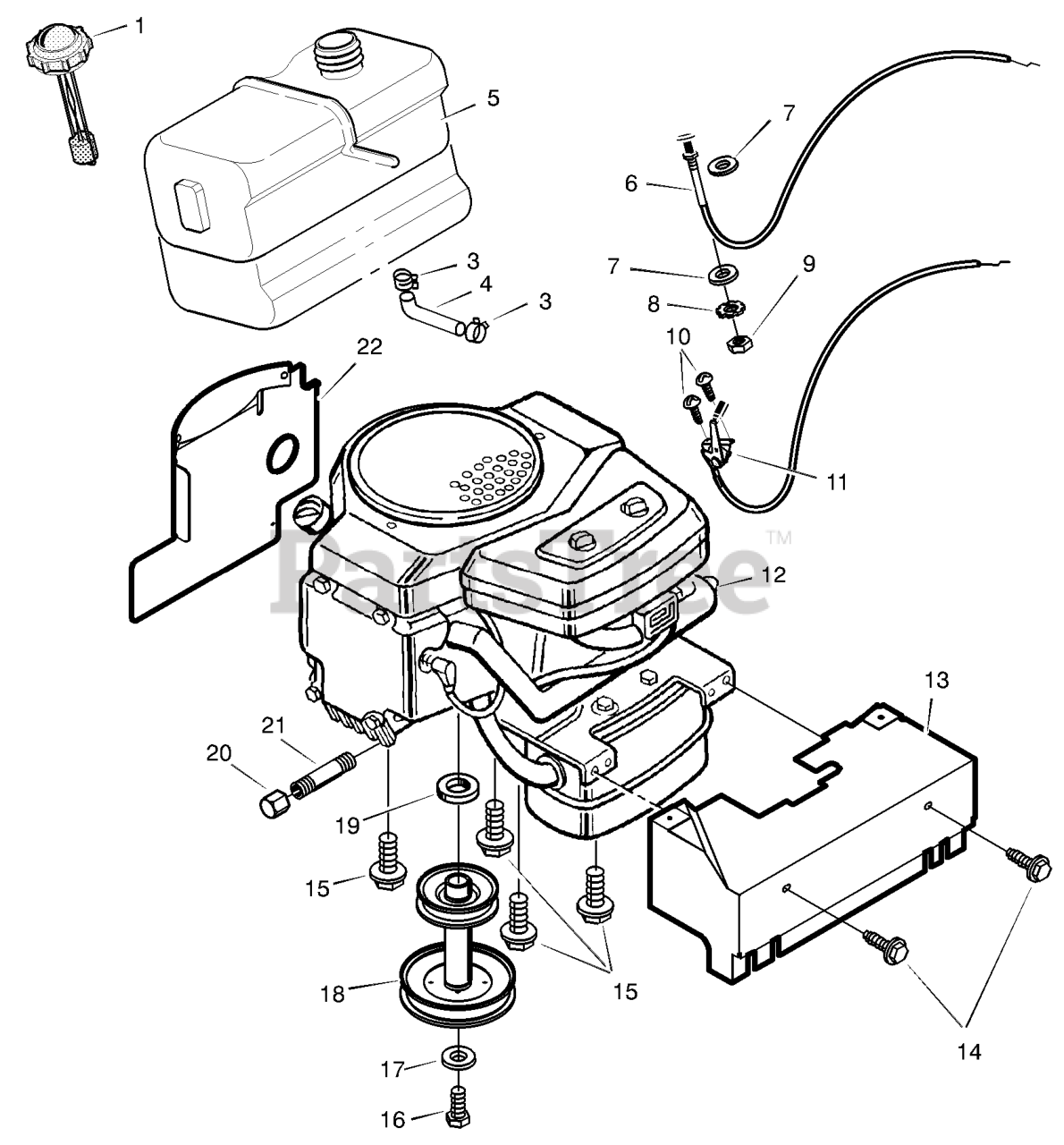

Engine Mount Parts Diagram

  • Title

1

Murray 1001279MA

Cap, Gas

Note: (Included with Ref. No. 5)

$20.99

$

Usually ships in 2-12 days

0

3

Murray 095197MA

Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 5)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 5)

$22.99

$

Usually ships in 2-12 days

0

5

Murray 690306

Tank, Fuel

$

$

Not available

6

Murray 776113MA

Cable, Choke

$32.99

$

In Stock, only 1 left!

0

7

Murray 17X185

Washer
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

8

Murray 0019X8MA

Lockwasher
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

9

Murray 015X33MA

Nut

$3.49

$

In Stock, only 1 left!

0

10

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

11

Murray 093165MA

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

12

Engine *

$

$

Not available

--

Murray 095198MA

Muffler
(Superseded to 690838)

$152.99

$

Usually ships in 2-12 days

0

--

Murray 095200

Liner, Port (Muffler)

$17.99

$

In Stock, only 1 left!

0

13

Murray 093191

Shield Assembly, Heat

$90.99

$

Usually ships in 2-12 days

0

14

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

15

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

16

Murray 01X140MA

Bolt

$5.49

$

In Stock, Qty 15

0

17

Murray 17X170MA

Washer

$

$

Not available

18

Murray 690225 Z

Pulley, Stack

$

$

Currently unavailable

19

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0

20

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

21

Murray 092279

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

22

Murray 093078

Baffle, Rear Heat

$

$

Currently unavailable
