46102x6B - Murray Ultra 46" Garden Tractor (2000) Engine Mount Parts Diagram

Ultra 46" Garden Tractor

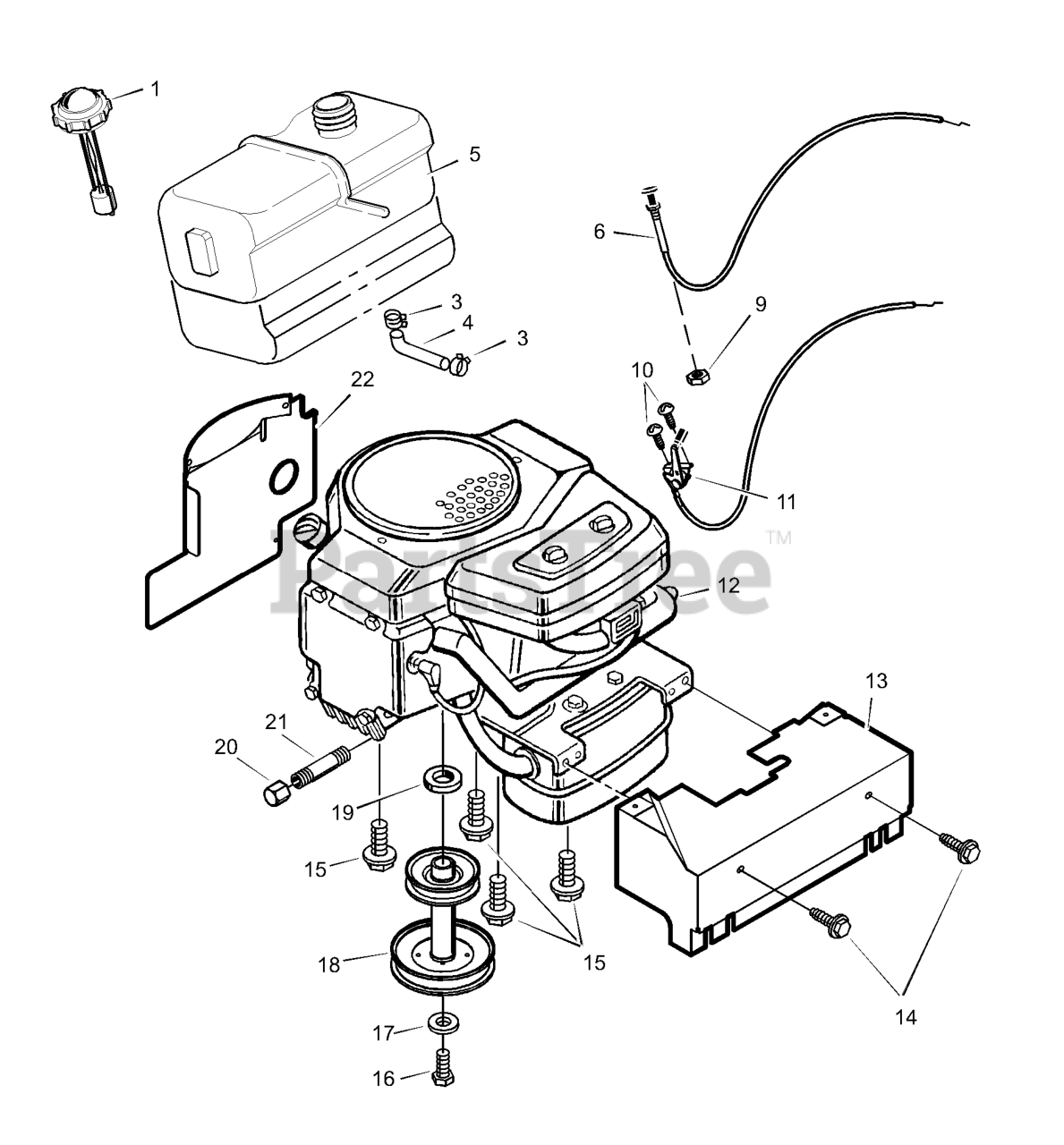

Engine Mount Parts Diagram

  • Title

1

Murray 091349

Cap, Gas

$

$

Currently unavailable

3

Murray 095197MA

Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 023717

Line, Fuel

$7.99

$

In Stock, Qty 20+

0

5

Murray 093148

Tank, Fuel

$

$

Currently unavailable

6

Murray 690401

Cable, Choke

$3.99

$

In Stock, only 1 left!

0

9

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

10

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

11

Murray 093165MA

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

12

Engine *

$

$

Not available

--

Murray 095198MA

Muffler
(Superseded to 690838)

$152.99

$

Usually ships in 2-12 days

0

--

Murray 095208MA

Gasket, Muffler
(Superseded to 692282)

$6.99

$

In Stock, Qty 12

0

--

Murray 095200

Liner, Port (Muffler)

$17.99

$

In Stock, only 1 left!

0

--

Murray 06X102MA

Bolt (Liner Port)

$3.49

$

Usually ships in 2-12 days

0

13

Murray 093191E700

Shield Assembly, Heat

$

$

Currently unavailable

14

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

15

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

16

Murray 01X140MA

Bolt

$5.49

$

In Stock, Qty 15

0

17

Murray 17X170MA

Washer

$

$

Not available

18

Murray 690225MA

Pulley, Stack

$133.99

$

In Stock, only 1 left!

0

19

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0

20

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

21

Murray 056261

Pipe, Oil Drain

$

$

Not available

22

Murray 093078E700

Baffle, Rear Heat

$

$

Currently unavailable
