461018x99B - Briggs & Stratton 46" Garden Tractor (2002) (AAFES) Front Frame Assembly Parts Diagram

46" Garden Tractor

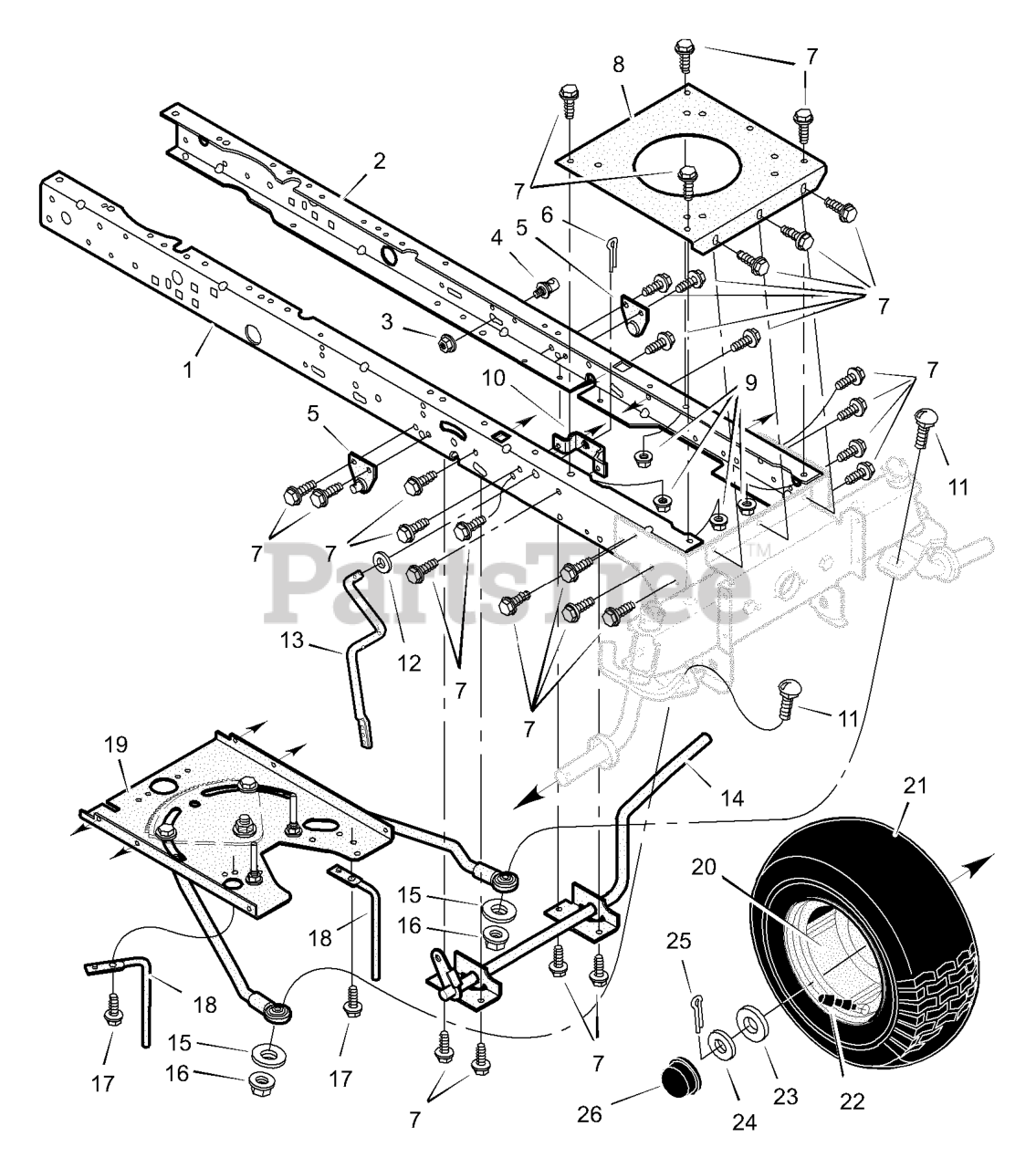

Front Frame Assembly Parts Diagram

  • Title

1

Murray 1001268E700

Frame, Right

$

$

Currently unavailable

2

Murray 1001269E700

Frame, Left

$

$

Currently unavailable

3

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 690182MA

Stud, Swivel

$11.99

$

Usually ships in 2-12 days

0

5

Murray 690406E700

Bracket Assembly, Suspension

$

$

Not available

6

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

7

Murray 26X249MA

Screw

$

$

Not available

8

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

9

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

10

Murray 094005E700

Bracket, PTO Crank

$

$

Not available

11

Murray 002X87

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

12

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

13

Murray 690394E700

Crank, PTO

$

$

Currently unavailable

14

Murray 094038E701MA

Lever, Brake/Clutch
(Superseded to 7400256ZMA)

$72.99

$

Usually ships in 2-12 days

0

15

Murray 17X152

Washer

$5.49

$

Usually ships in 2-12 days

0

16

Murray 015X41MA

Nut

$5.49

$

Usually ships in 2-12 days

0

17

Murray 025X15MA

Screw
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

18

Murray 690192E700

Guide, Belt

$

$

Currently unavailable

19

Assembly, Steering *

$

$

Not available

20

Murray 092644601

Wheel & Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

21

Murray 024393MA

Tire *

$116.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

--

Murray 093604

Bearing, Wheel

$

$

Currently unavailable

22

Murray 024373MA

Stem, Valve

$

$

Not available

23

Murray 17X194MA

Washer

$8.49

$

In Stock, only 2 left!

0

24

Murray 17X114MA

Washer

$3.99

$

Usually ships in 2-12 days

0

25

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

26

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0
