461018x99A - Briggs & Stratton 46" Garden Tractor (2001) (AAFES) Motion Drive Parts Diagram

46" Garden Tractor

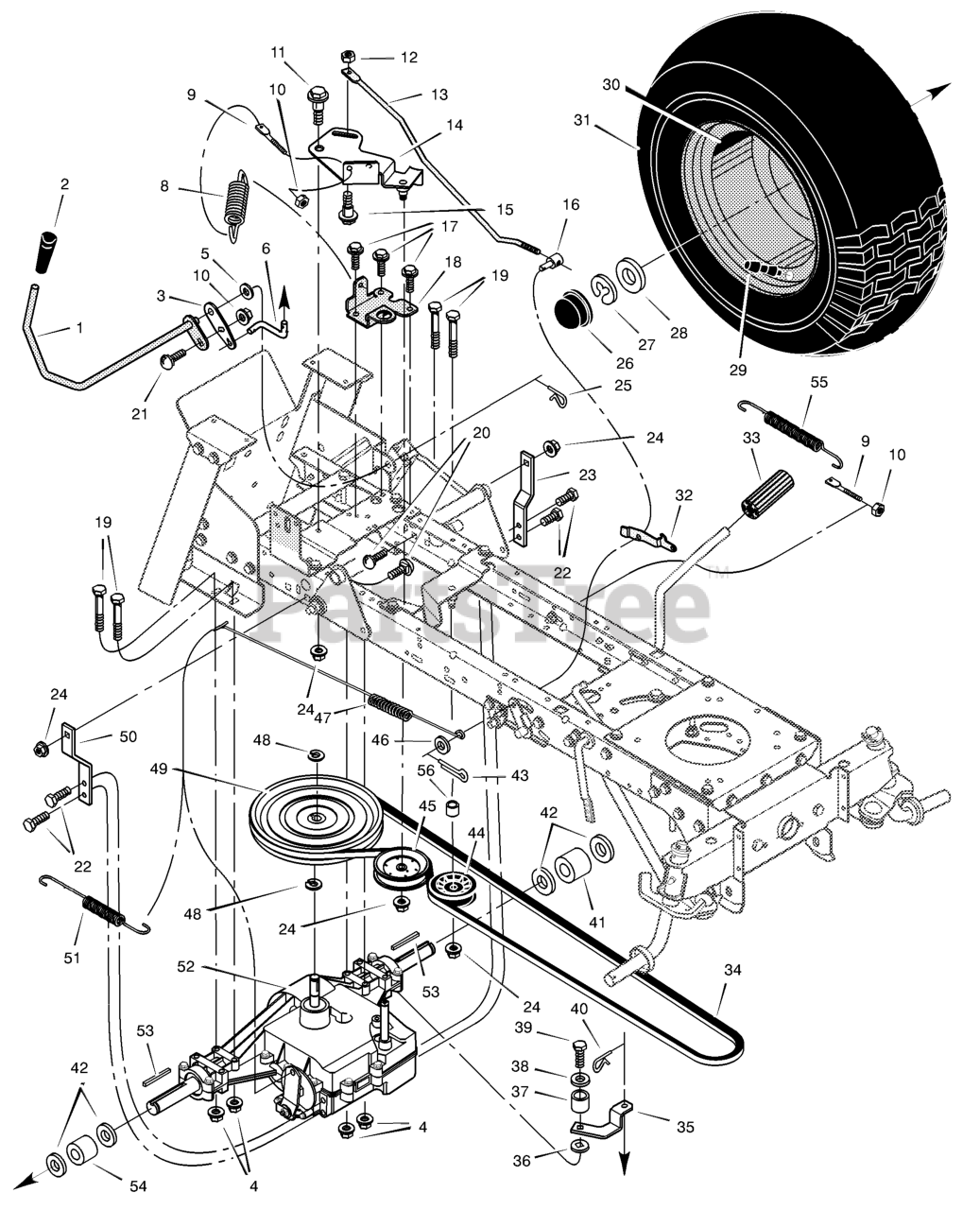

Motion Drive Parts Diagram

  • Title

1

Murray 690366 Z

Lever, Shift

$

$

Currently unavailable

2

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

3

Murray 690131 Z

Plate, Adjusting

$

$

Currently unavailable

4

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

5

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

6

Murray 690130 Z

Link, Shift

$

$

Currently unavailable

8

Murray 165X116MA

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

9

Murray 094042ZMA

Stud, Spring

$4.49

$

Usually ships in 2-12 days

0

10

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

12

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094041 Z

Rod, Clutch

$

$

Currently unavailable

14

Murray 690364 Z

Arm Assembly, Idler

$

$

Currently unavailable

15

Murray 009X54MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

16

Murray 094815ZMA

Nut, Adjusting

$21.99

$

Usually ships in 2-12 days

0

17

Murray 26X249MA

Screw

$

$

Not available

18

Murray 690070E700

Bracket, Spring Mount

$

$

Not available

19

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

20

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

21

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

22

Murray 26X216MA

Bolt

$6.99

$

In Stock, Qty 5

0

23

Murray 690081E700

Bracket, Left Torque

$14.99

$

Usually ships in 2-12 days

0

24

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

26

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0

27

Murray 011X23MA

E-Ring

$4.49

$

In Stock, only 3 left!

0

28

Murray 17X193MA

Washer

$3.99

$

In Stock, only 1 left!

0

29

Murray 024373MA

Stem, Valve

$

$

Not available

30

Murray 093263-601

Wheel and Tire

$

$

Currently unavailable

31

Murray 091923MA

Tire *

$

$

Not available

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

32

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

33

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

34

Murray 037X68MA

Belt, Drive

$50.99

$

In Stock, only 1 left!

0

35

Murray 690129 Z

Yoke, Shift

$

$

Currently unavailable

36

Murray 17X148MA

Washer, Square

$3.99

$

Usually ships in 2-12 days

0

37

Murray 091889

Pilot, Support

$3.99

$

Usually ships in 2-12 days

0

38

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

39

Murray 06X105MA

Capscrew

$3.99

$

In Stock, only 1 left!

0

40

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

41

Murray 690213 Z

Spacer, Left

$

$

Currently unavailable

42

Murray 17X118 Z

WASHER, 1-1.3 16G FLT
(Superseded to 17X118ZMA)

$3.49

$

Usually ships in 2-12 days

0

43

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

44

Murray 690410MA

Pulley, V Idler

$19.99

$

In Stock, only 1 left!

0

45

Murray 023339MA

Pulley, Backside Idler

$

$

Not available

46

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

47

Murray 165X115MA

Spring, Brake

$21.99

$

Usually ships in 2-12 days

0

48

Murray 0011X7MA

Ring, Snap

$3.99

$

In Stock, only 4 left!

0

49

Murray 690181MA

Pulley, Drive

$

$

Not available

50

Murray 690080E700

Bracket, Right Torque

$

$

Not available

51

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

52

Transmission *

$

$

Not available

53

Murray 024039MA

Key, Square

$4.49

$

Usually ships in 2-12 days

0

54

Murray 690214 Z

Spacer, Right

$

$

Currently unavailable

55

Murray 165X133MA

Spring, Extension

$20.99

$

Usually ships in 2-12 days

0

56

Murray 690369MA

Spacer

$

$

Not available
