461007x92B - Briggs & Stratton 46" Garden Tractor (2002) Rear Frame Assembly Parts Diagram

46" Garden Tractor

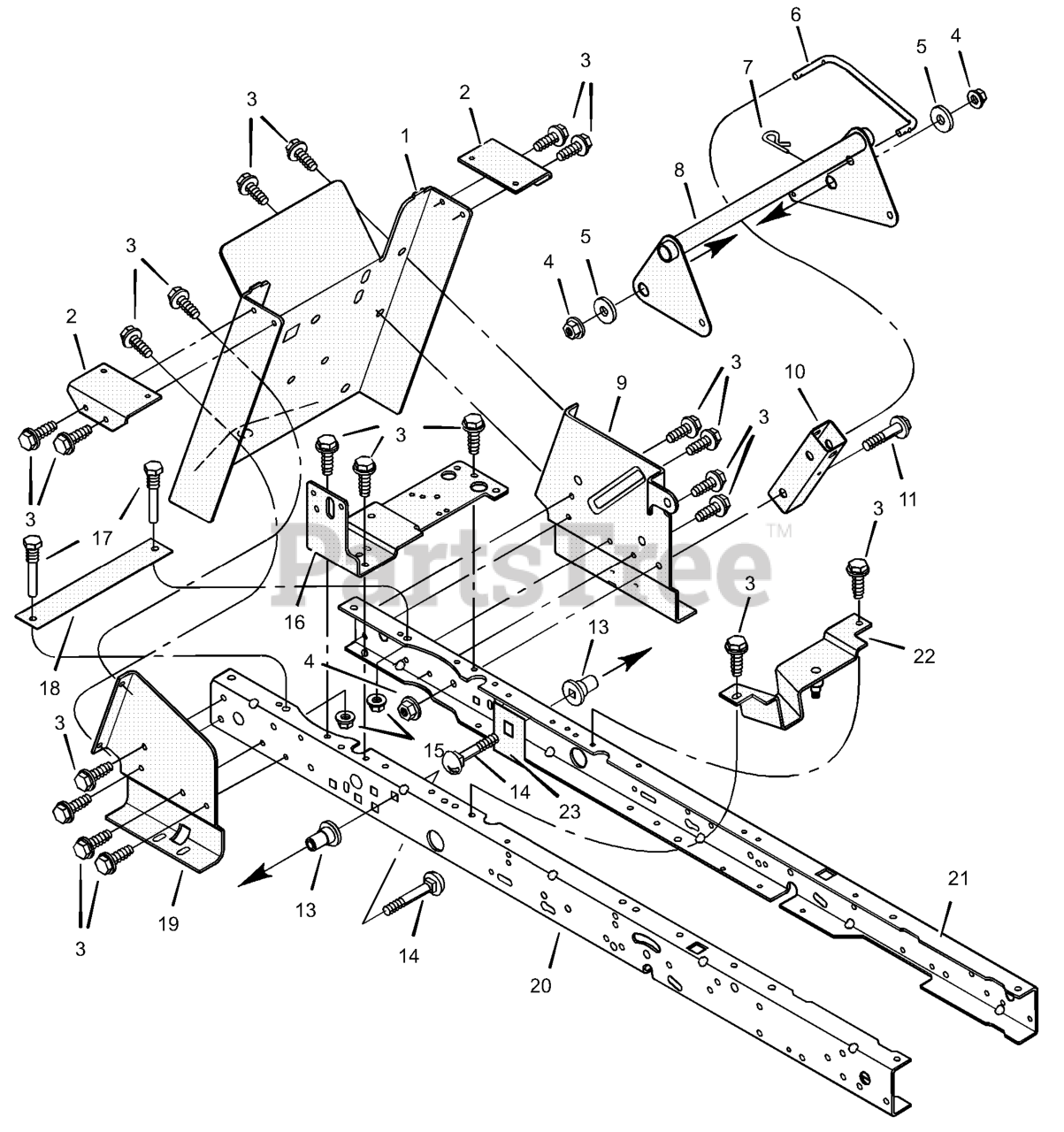

Rear Frame Assembly Parts Diagram

  • Title

1

Murray 690094E701

Frame, Rear Hitch

$

$

Not available

2

Murray 690077E701

Bracket, Seat Deck

$

$

Not available

3

Murray 26X249MA

Screw

$

$

Not available

4

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

6

Murray 690122E701MA

Link, Lift Handle
(Superseded to 7300877ZMA)

$19.99

$

Usually ships in 2-12 days

0

7

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 690363E701

Assembly, Lifter

$

$

Not available

9

Murray 690065E701

Bracket, Left Transaxle

$

$

Currently unavailable

10

Murray 094015E701MA

Bracket, Lift Pivot

$70.99

$

Usually ships in 2-12 days

0

11

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

13

Murray 690151MA

Spacer, Lifter

$6.99

$

Usually ships in 2-12 days

0

14

Murray 002X85MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

15

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Murray 1001302E701

Bracket, Right Shift

$32.99

$

Usually ships in 2-12 days

0

17

Murray 094384MA

Screw, Guide

$4.49

$

Usually ships in 2-12 days

0

18

Murray 776101

Plate

$5.99

$

Usually ships in 2-12 days

0

19

Murray 690064E701

Bracket, Right Transaxle

$

$

Currently unavailable

20

Murray 1001268E701

Frame, Right

$

$

Not available

21

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

22

Murray 690365 Z

Bracket, Idler

$

$

Currently unavailable

23

Murray 690389E701

Plate, Stiffening

$

$

Currently unavailable
