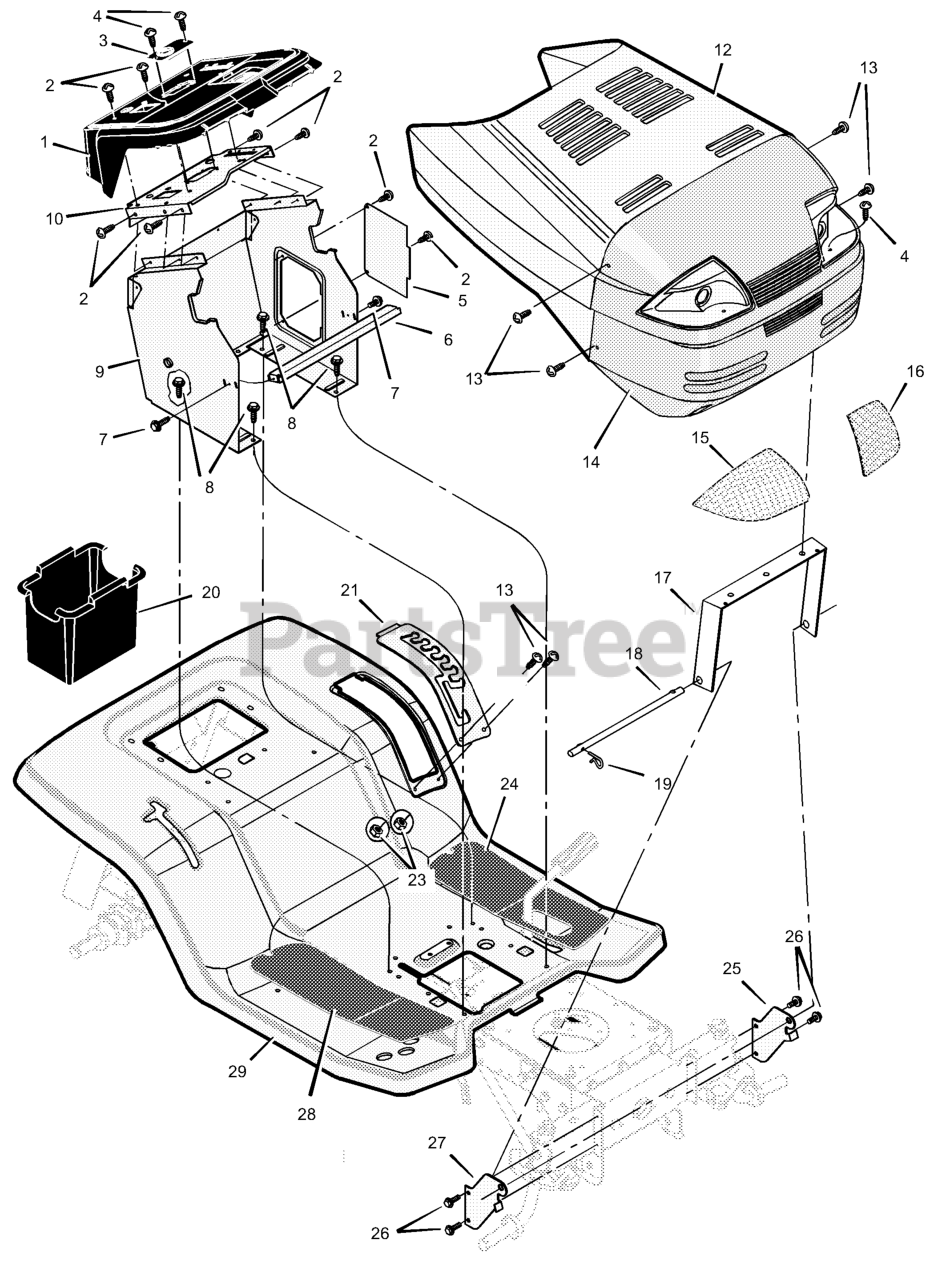

461001x68A - Murray 46" Garden Tractor (2002) Hood And Dash Parts Diagram

46" Garden Tractor

Hood And Dash Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

3

Murray 094219MA

Bearing, Upper Steering

$

$

Not available

4

$4.49

$

In Stock, only 2 left!

0

5

Murray 093007E700

Panel, Side Access

$

$

Currently unavailable

6

Murray 095081

Channel, Support

$

$

Not available

7

$4.99

$

In Stock, only 1 left!

0

8

$

$

Not available

9

Murray 095082

Support, Dash

$

$

Not available

10

Murray 094221E701MA

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

12

Murray 093215E700MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

13

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

14

Murray 092542

Grille

Note: (Includes Lens)

$384.99

$

Usually ships in 2-12 days

0

15

Murray 092539MA

Lens, Right

$71.99

$

Usually ships in 2-12 days

0

16

Murray 092540MA

Lens, Left

$71.99

$

Usually ships in 2-12 days

0

17

Murray 092541MA

Brace, Grille

$18.99

$

Usually ships in 2-12 days

0

18

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

19

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

20

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

21

Murray 094886E700

Plate, Lift Detent

$53.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

24

Murray 094109

Mat, Left

$

$

Currently unavailable

25

Murray 690544E700

Support, Left Grille

$

$

Not available

26

$4.99

$

Usually ships in 2-12 days

0

27

Murray 690543E700

Support, Right Grille

$

$

Not available

28

Murray 094108

Mat, Right

$9.49

$

Usually ships in 2-12 days

0

29

Murray 1001286E700

Deck, Seat

$

$

Currently unavailable
