461001x68A - Murray 46" Garden Tractor (2002) Blade Drive Parts Diagram

46" Garden Tractor

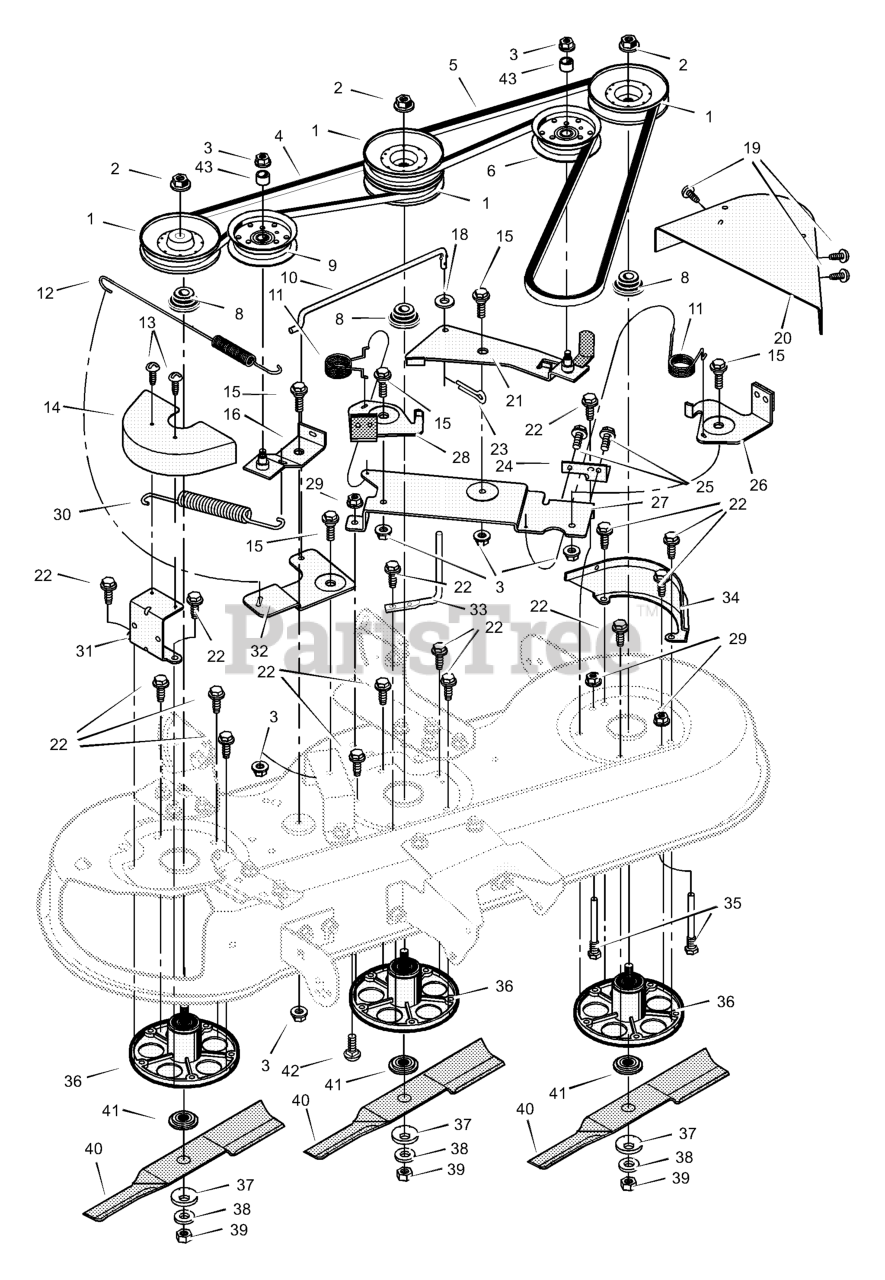

Blade Drive Parts Diagram

  • Title
1

Murray 094592MA

Pulley
(Superseded to 95309MA)

$

$

Not available

$9.99

$

In Stock, Qty 7

0

3

Murray 015X98MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 037X66MA

Belt, Secondary

$24.99

$

In Stock, only 1 left!

0

5

Murray 037X96MA

Belt, Primary

$50.99

$

In Stock, only 1 left!

0

6

Murray 690387MA

Pulley, Idler

$

$

Not available

8

Murray 1001197MA

Spacer, Pulley

$12.99

$

In Stock, only 2 left!

0

9

Murray 690549MA

Pulley, Idler

$

$

Not available

10

Murray 094606 Z

Link, Bell Crank

$

$

Currently unavailable

11

$4.99

$

In Stock, only 2 left!

0

12

$15.99

$

In Stock, only 1 left!

0

13

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

14

Murray 094607E700

Cover, Right Pulley

$

$

Currently unavailable

15

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

16

Murray 094639E700

Arm Assembly, Idler

$

$

Currently unavailable

18

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

19

$4.99

$

Usually ships in 2-12 days

0

20

Murray 094645E700

Cover, Left Pulley

$

$

Currently unavailable

21

Murray 690579E700MA

Arm Assembly, Idler
(Superseded to 7400227BMYP)

$149.99

$

Usually ships in 2-12 days

0

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

24

Murray 094602E700

Bracket, Brake Plate

$

$

Currently unavailable

25

$

$

Not available

26

Murray 094640E700

Brake Assembly, Left

$

$

Currently unavailable

27

Murray 094596E700

Plate, Brake Arm

$

$

Currently unavailable

28

Murray 094641E700

Brake Assembly, Center

$

$

Currently unavailable

29

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

$6.49

$

In Stock, Qty 5

0

31

Murray 092140E700

Bracket, Cover

$

$

Currently unavailable

32

Murray 094603E700

Bell Crank

$

$

Currently unavailable

33

Murray 092116 Z

Guide, Belt

$

$

Currently unavailable

34

Murray 690221E700

Bracket, Pulley Cover

$7.49

$

Usually ships in 2-12 days

0

35

Murray 091754MA

Guide, Belt

$16.99

$

Usually ships in 2-12 days

0

36

Murray 1001200MA

Assembly, Jackshaft Housing

$82.99

$

In Stock, only 3 left!

0

37

$13.99

$

In Stock, Qty 18

0

38

$16.99

$

In Stock, only 4 left!

0

39

Murray 15X100MA

Nut, Blade

$3.99

$

In Stock, Qty 10

0

$20.99

$

Usually ships in 2-12 days

0

41

Murray 690411MA

Adapter, Blade

$

$

Not available

42

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

43

$

$

Not available
