461000x8A - Murray 46" Garden Tractor (2003) Hood And Dash Parts Diagram

46" Garden Tractor

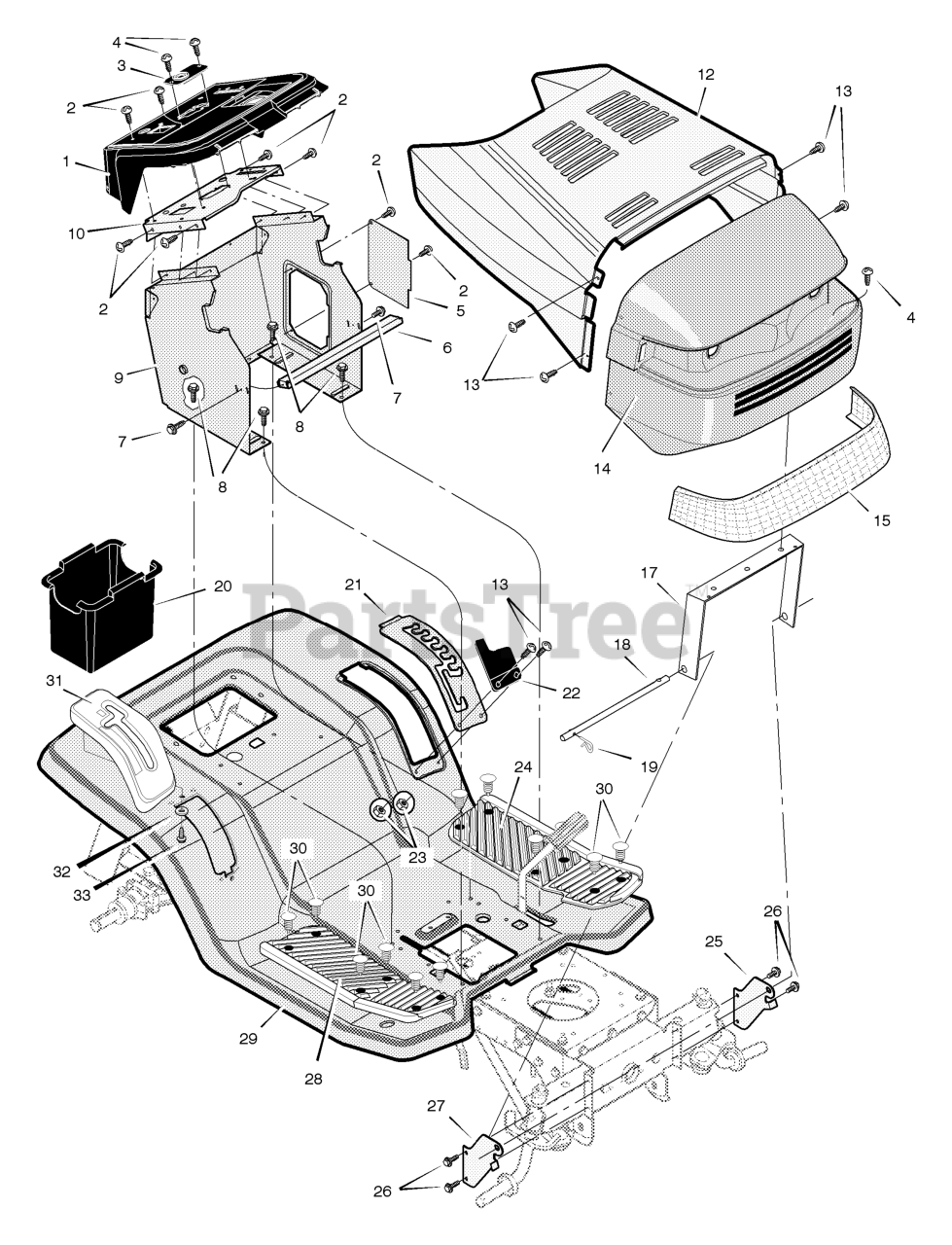

Hood And Dash Parts Diagram

  • Title

1

Murray 776190MA

Dash

$112.99

$

Usually ships in 2-12 days

0

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

3

Murray 094219MA

Bearing, Upper Steering

$

$

Not available

4

Murray 26X239MA

Screw

$4.49

$

In Stock, only 2 left!

0

5

Murray 093007E701MA

Panel, Side Access

$31.99

$

Usually ships in 2-12 days

0

6

Murray 095081E701

Channel, Support

$25.99

$

Usually ships in 2-12 days

0

7

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

8

Murray 26X249MA

Screw

$

$

Not available

9

Murray 095082E701

Support, Dash

$131.99

$

Usually ships in 2-12 days

0

10

Murray 094221E701MA

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

12

Murray 093215E700MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

13

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

14

Murray 093149MA

Grille

Note: (Includes Lens)

$253.99

$

Usually ships in 2-12 days

0

15

Murray 093139MA

Lens, Right

$95.99

$

Usually ships in 2-12 days

0

17

Murray 093190MA

Brace, Grille

$50.99

$

Usually ships in 2-12 days

0

18

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

19

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

20

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

21

Murray 094194E701MA

Plate, Lift Detent

$50.99

$

In Stock, only 1 left!

0

22

Murray 094680MA

Cover

$7.49

$

In Stock, only 1 left!

0

23

Murray 015X81MA

Nut

$4.99

$

Usually ships in 2-12 days

0

24

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

25

Murray 690544E700

Support, Left Grille

$

$

Not available

26

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

27

Murray 690543E700

Support, Right Grille

$

$

Not available

28

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

29

Murray 1001608E700

Deck, Seat

$

$

Currently unavailable

30

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

31

Murray 690623

Cover, Shift

$56.99

$

Usually ships in 2-12 days

0

32

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

33

Murray 26X284MA

Screw

$3.99

$

Usually ships in 2-12 days

0
