461000x71A - Murray 46" Garden Tractor (2001) Seat Deck Parts Diagram

46" Garden Tractor

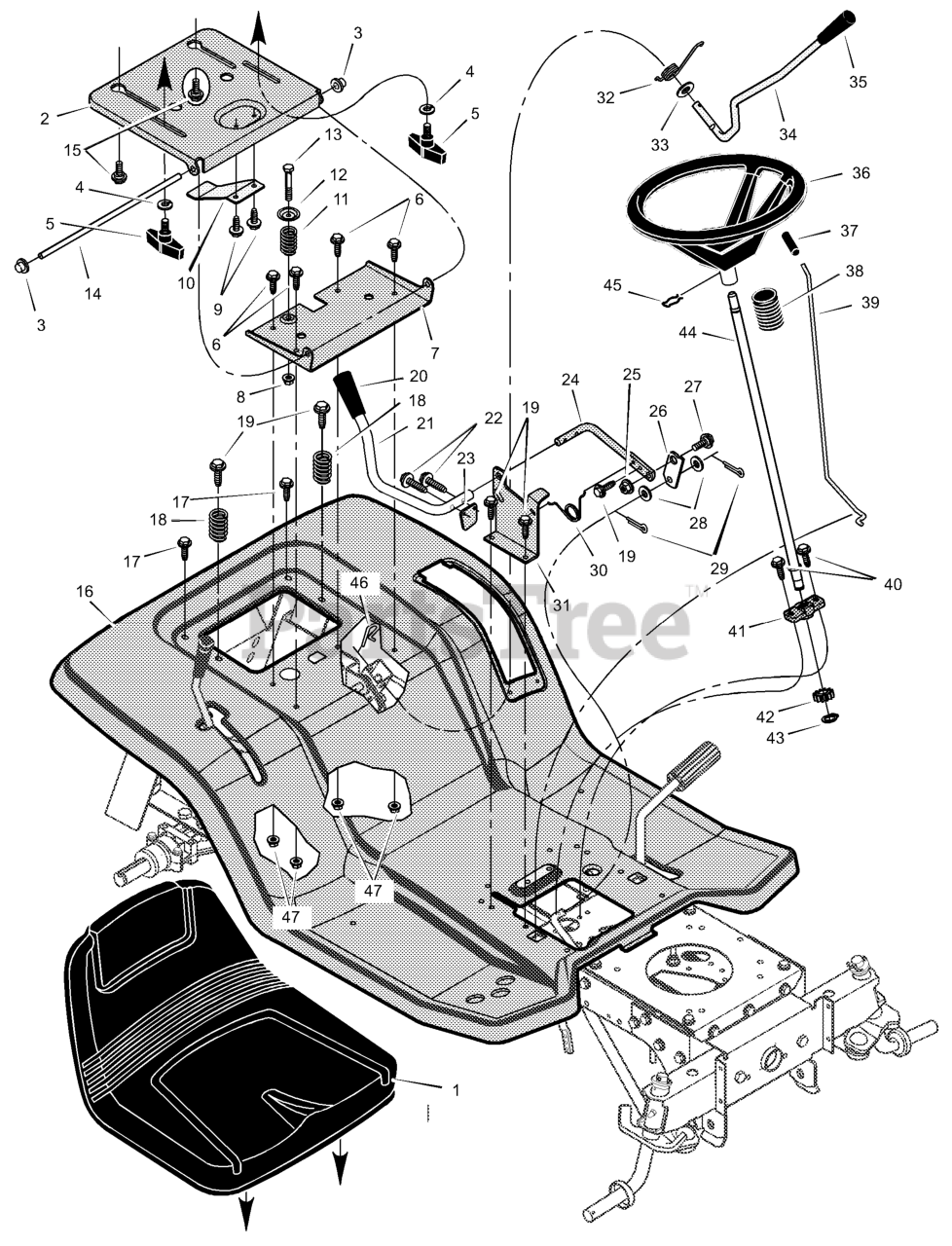

Seat Deck Parts Diagram

  • Title
1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 094154E700

Support, Seat

$

$

Currently unavailable

3

Murray 028X23MA

Push-On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

4

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

7

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

9

$4.49

$

In Stock, only 1 left!

0

10

Murray 094057MA

Spring, Leaf

$5.99

$

Usually ships in 2-12 days

0

11

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

12

Murray 094155 Z

Washer, Cup

$

$

Currently unavailable

13

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

15

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

16

Murray 095326E541

Deck, Seat

$

$

Currently unavailable

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

$

$

Not available

20

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

21

Murray 094217 Z

Handle, PTO

$

$

Currently unavailable

22

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

23

Murray 094022 Z

Paddle, Switch

$

$

Currently unavailable

24

Murray 094017 Z

Lever, PTO

$

$

Currently unavailable

25

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 094004 Z

Link, PTO

$

$

Currently unavailable

27

Murray 009X39MA

Shoulder, Bolt

$6.49

$

In Stock, Qty 5

0

28

$4.49

$

Usually ships in 2-12 days

0

29

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

30

$5.49

$

Usually ships in 2-12 days

0

31

Murray 094018E700

Bracket, PTO

$

$

Currently unavailable

32

$6.49

$

Usually ships in 2-12 days

0

33

$4.99

$

In Stock, only 2 left!

0

34

Murray 690533MA

Handle, Lift

$40.99

$

In Stock, only 1 left!

0

35

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

36

Murray 094134MA

Wheel, Steering

$69.99

$

In Stock, only 1 left!

0

37

$3.49

$

Usually ships in 2-12 days

0

38

Murray 092059MA

Bellows

$9.49

$

Usually ships in 2-12 days

0

39

Murray 1001271 Z

Rod, Parking Brake

$

$

Currently unavailable

40

$4.99

$

In Stock, Qty 20+

0

41

Murray 094124MA

Bearing, Lower

$14.99

$

In Stock, only 1 left!

0

42

Murray 690183MA

Gear, Pinion

$

$

Not available

43

$4.49

$

In Stock, Qty 5

0

44

Murray 690626

Shaft, Steering

$154.99

$

Usually ships in 2-12 days

0

45

Murray 094131MA

Clip, Retainer

$4.99

$

In Stock, only 1 left!

0

46

Murray 0031X4MA

Pin, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-010784L

Manual and Parts List

$

$

Currently unavailable
