461 ZX (966681802) - Poulan Pro 46" Zero-Turn Mower (2013-12) MOWER DECK / CUTTING DECK Parts Diagram

46" Zero-Turn Mower

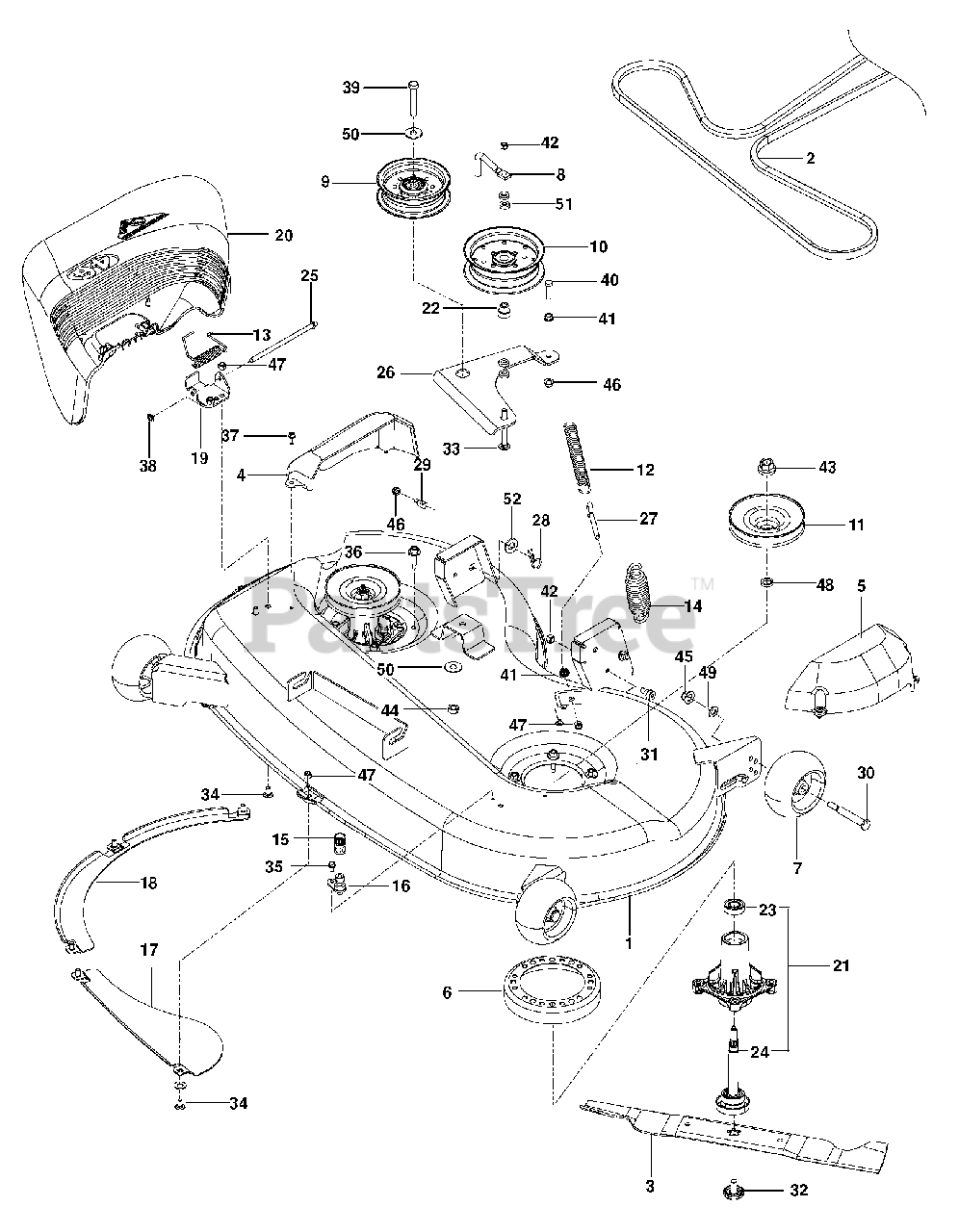

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 522745402

DECK.STAMPED.46".W/DECALS.BLAC
(Superseded to 598727202)

Note: w / SAFETY DECALS

$398.99

$

Usually ships in 3-10 days

0

2

Poulan 539117245

V-BELT

$66.99

$

In Stock, Qty 5

0

3

Poulan 777405380

BLADE, 46" HI-LIFT
(Superseded to 532405380)

$

$

Not available

4

Poulan 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, only 4 left!

0

5

Poulan 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 3 left!

0

6

Poulan 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

8

Poulan 522629701

BELT KEEPER 5"
(Superseded to 522629702)

$4.99

$

In Stock, only 3 left!

0

9

Poulan 532196104

PULLEY.IDLER.MWR.STATIONARY.LH

$43.99

$

In Stock, Qty 19

0

10

Poulan 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

11

Poulan 539113962

PULLEY, DECK
(Superseded to 588586601)

$34.99

$

In Stock, Qty 11

0

12

Poulan 539120920

SPRING, DECK BELT
(Superseded to 596989801)

$9.49

$

In Stock, Qty 20+

0

13

Poulan 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

14

Poulan 539118762

SPRING
(Superseded to 596482001)

$7.99

$

In Stock, Qty 5

0

15

Poulan 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

16

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

17

Poulan 532403149

BAFFLE CENTER FRONT

$

$

Not available

18

Poulan 532403150

BAFFLE FRONT RH

$

$

Not available

19

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

20

Poulan 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 7

0

21

Poulan 532174356

MANDREL ASM
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

22

Poulan 539112076

IDLER BUSHING
(Superseded to 596790301)

$6.99

$

In Stock, Qty 5

0

23

Poulan 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

24

Poulan 532174360

SHAFT ASM W/LOWER BEARING

$66.99

$

In Stock, only 1 left!

0

25

Poulan 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

26

Poulan 574689002

ARM, IDLER BLK

$93.99

$

In Stock, only 2 left!

0

27

Poulan 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

30

Poulan 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

31

Poulan 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

33

Poulan 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

34

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Poulan 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

37

Poulan 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

38

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD

$

$

Not available

40

Poulan 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

41

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

43

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

44

Poulan 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.49

$

In Stock, Qty 18

0

45

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

47

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

48

Poulan 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

49

Poulan 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

50

Poulan 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

52

Poulan 819212113

WASHER
(Superseded to 596320001)

$3.99

$

In Stock, only 2 left!

0
