461 ZX (966681802) - Poulan Pro 46" Zero-Turn Mower (2013-12) FRAME Parts Diagram

46" Zero-Turn Mower

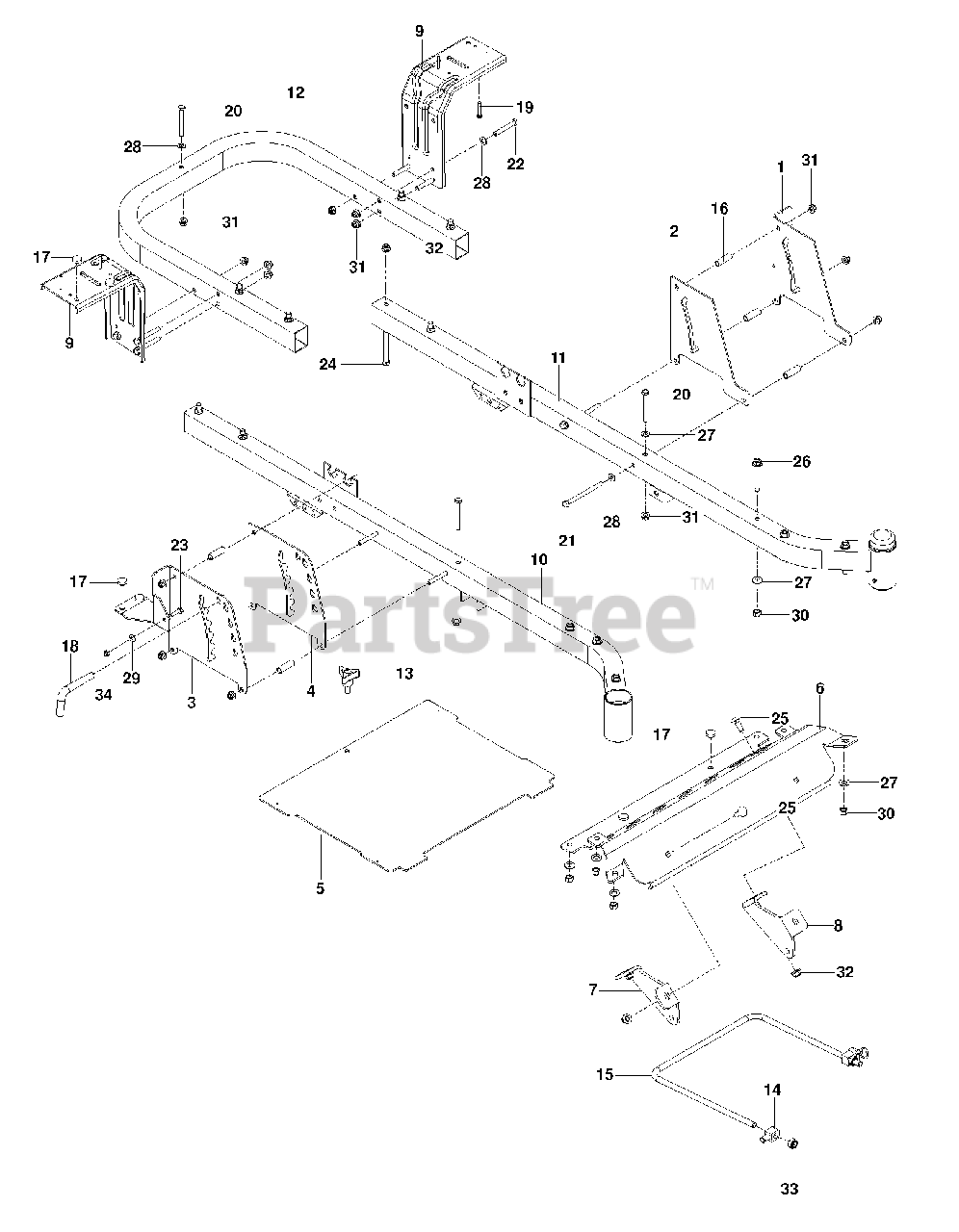

FRAME Parts Diagram

  • Title

1

Poulan 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

2

Poulan 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

3

Poulan 580528002

PLATE.DECK HEIGHT.PNT.431.RZ

$13.99

$

Usually ships in 3-10 days

0

4

Poulan 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

5

Poulan 522842905

PLATE, FOOT W/DECALS, YLW

Note: W / DECALS

$

$

Not available

6

Poulan 522740708

FOOT, REST, MED YLW

$157.99

$

Usually ships in 3-10 days

0

7

Poulan 522443302

MOUNT, STRUT, RT, BLK

$34.99

$

Usually ships in 3-10 days

0

8

Poulan 522443304

MOUNT, STRUT, LT, BLK

$398.99

$

Usually ships in 3-10 days

0

9

Poulan 580501302

FENDER.SUPPORT.PNT.X431

$37.99

$

Usually ships in 3-10 days

0

10

Poulan 510177506

FRAME, FRONT RT, YLW

$

$

Not available

11

Poulan 510177406

FRAME, FRONT LT, YLW

$145.99

$

Usually ships in 3-10 days

0

12

Poulan 510177606

FRAME TUBE, REAR, YLW

$103.99

$

Usually ships in 3-10 days

0

13

Poulan 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 581514301

Swivel Trunion Link Deck Front

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 521938101

LINK, FRONT SUSP.
(Superseded to 521938102)

$14.99

$

In Stock, Qty 5

0

16

Poulan 580486101

Spacer, .334" ID X .5 OD X 1.5
(Superseded to 580486102)

$4.99

$

In Stock, only 1 left!

0

17

Poulan 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

18

Poulan 510016503

PIN.DECK.HEIGHT.RZ
(Superseded to 510016504)

$6.49

$

In Stock, only 3 left!

0

19

Poulan 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 874780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 874780564

BOLT

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

23

Poulan 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 874780648

Finished Hex Bolt, 3/8-16 X 3.Gr5
(Superseded to 596564405)

$3.99

$

In Stock, Qty 10

0

25

Poulan 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

26

Poulan 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 7

0

28

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

29

Poulan 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

30

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

31

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

32

Poulan 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

33

Poulan 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.49

$

In Stock, Qty 18

0

34

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0
