461 ZX (966681801) - Poulan Pro 46" Zero-Turn Mower (2012-02) WHEELS TIRES Parts Diagram

46" Zero-Turn Mower

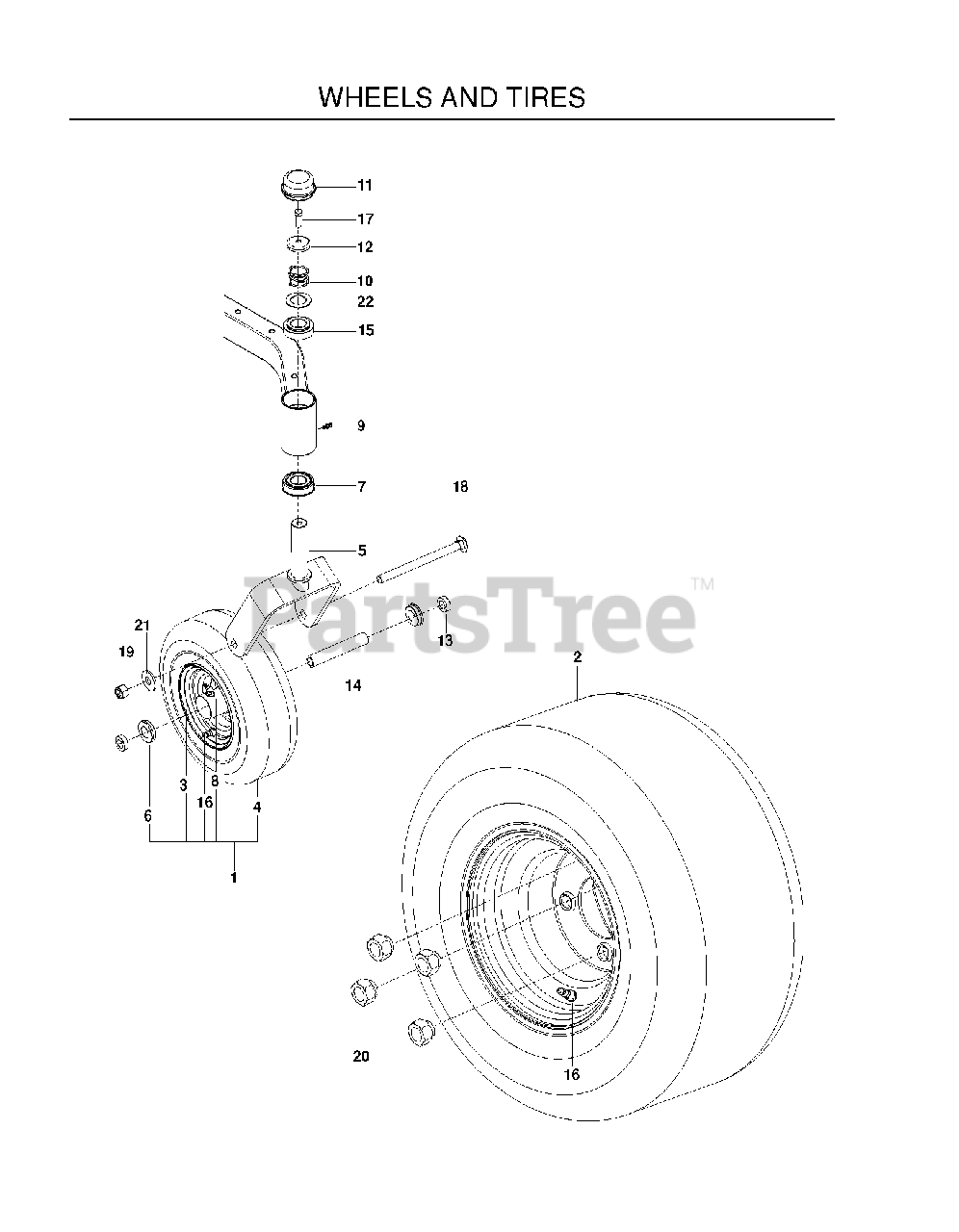

WHEELS TIRES Parts Diagram

  • Title

1

Poulan 575812201

TIRE.ASSEM.CASTER.410-5.BLACK
(Superseded to 581199201)

$102.99

$

Usually ships in 3-10 days

0

2

Poulan 575812601

TIRE ASM, 18-8.5 BLK
(Superseded to 581198701)

$182.99

$

Usually ships in 3-10 days

0

3

Poulan 575812301

RIM, CASTER TIRE, BLK
(Superseded to 581199201)

$102.99

$

Usually ships in 3-10 days

0

4

Poulan 539114697

TIRE.11"X4""-5.4PLY.SMOOTH.KEND

$

$

Not available

5

Poulan 510186504

YOKE, CASTER, YLW
(Superseded to 584385701)

$47.99

$

Usually ships in 3-10 days

0

6

Poulan 576617801

BUSHING, WHEEL, 3/4"

$6.49

$

In Stock, only 4 left!

0

7

Poulan 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

8

Poulan 539103300

ZERK

$4.99

$

In Stock, Qty 19

0

9

Poulan 539115638

ZERK, 3/16, DRIVE IN

$5.99

$

In Stock, Qty 19

0

10

Poulan 539115747

SPRING, CASTER
(Superseded to 596388901)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 539115749

CASTER.PLUG
(Superseded to 596301001)

$3.99

$

In Stock, Qty 13

0

13

Poulan 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 8

0

14

Poulan 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

15

Poulan 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

16

Poulan 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

17

Poulan 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 596319901)

$3.99

$

In Stock, Qty 7

0

18

Poulan 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 2 left!

0

19

Poulan 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, only 4 left!

0

20

Poulan 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 20+

0

21

Poulan 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 539115675

WASHER, 1.025 ID X 1.64
(Superseded to 596319801)

$3.99

$

In Stock, only 4 left!

0
