461 ZX (966681801) - Poulan Pro 46" Zero-Turn Mower (2012-02) STEERING Parts Diagram

46" Zero-Turn Mower

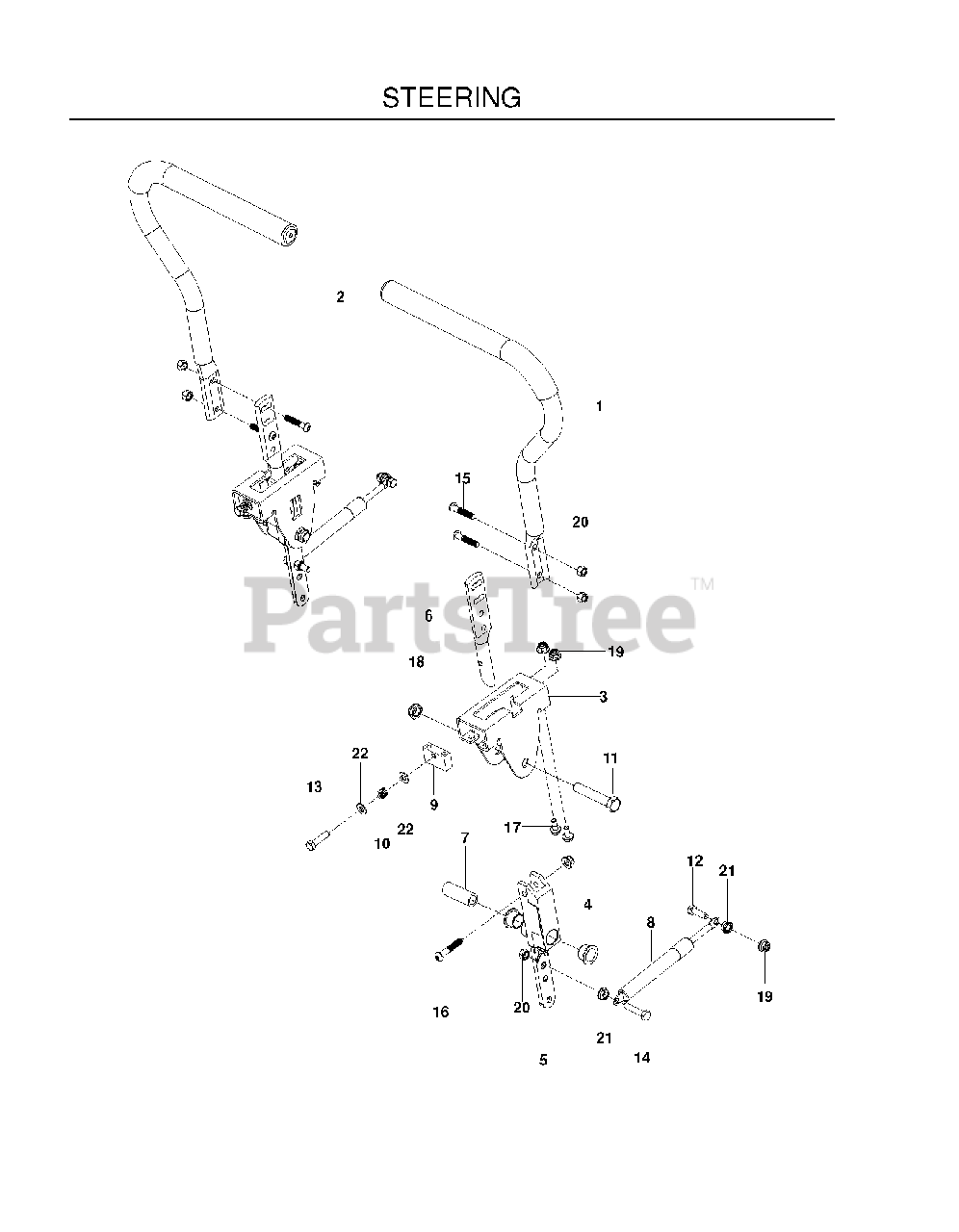

STEERING Parts Diagram

  • Title

1

Poulan 579036901

LEVER.STEERING.ASM.(W/GRIP)

$

$

Not available

2

Poulan 525392901

GRIP, DRIVE LEVER

$

$

Not available

3

Poulan 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$26.99

$

In Stock, only 1 left!

0

4

Poulan 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 5

0

5

Poulan 576140301

LEVER CONTROL PIVOT

$24.99

$

In Stock, only 4 left!

0

6

Poulan 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$11.99

$

In Stock, Qty 20+

0

7

Poulan 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

In Stock, only 4 left!

0

8

Poulan 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

9

Poulan 577251801

BLOCK.TRACKING

$11.99

$

Usually ships in 3-10 days

0

10

Poulan 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

11

Poulan 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

12

Poulan 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, only 2 left!

0

13

Poulan 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

14

Poulan 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

15

Poulan 578296401

SCREW 5/16-18 X 1 BTN-HD

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

17

Poulan 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

18

Poulan 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

19

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Poulan 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 539990188

FLAT WASHER 5/16 SAE
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
