461 ZX (966681801) - Poulan Pro 46" Zero-Turn Mower (2012-02) SEAT Parts Diagram

46" Zero-Turn Mower

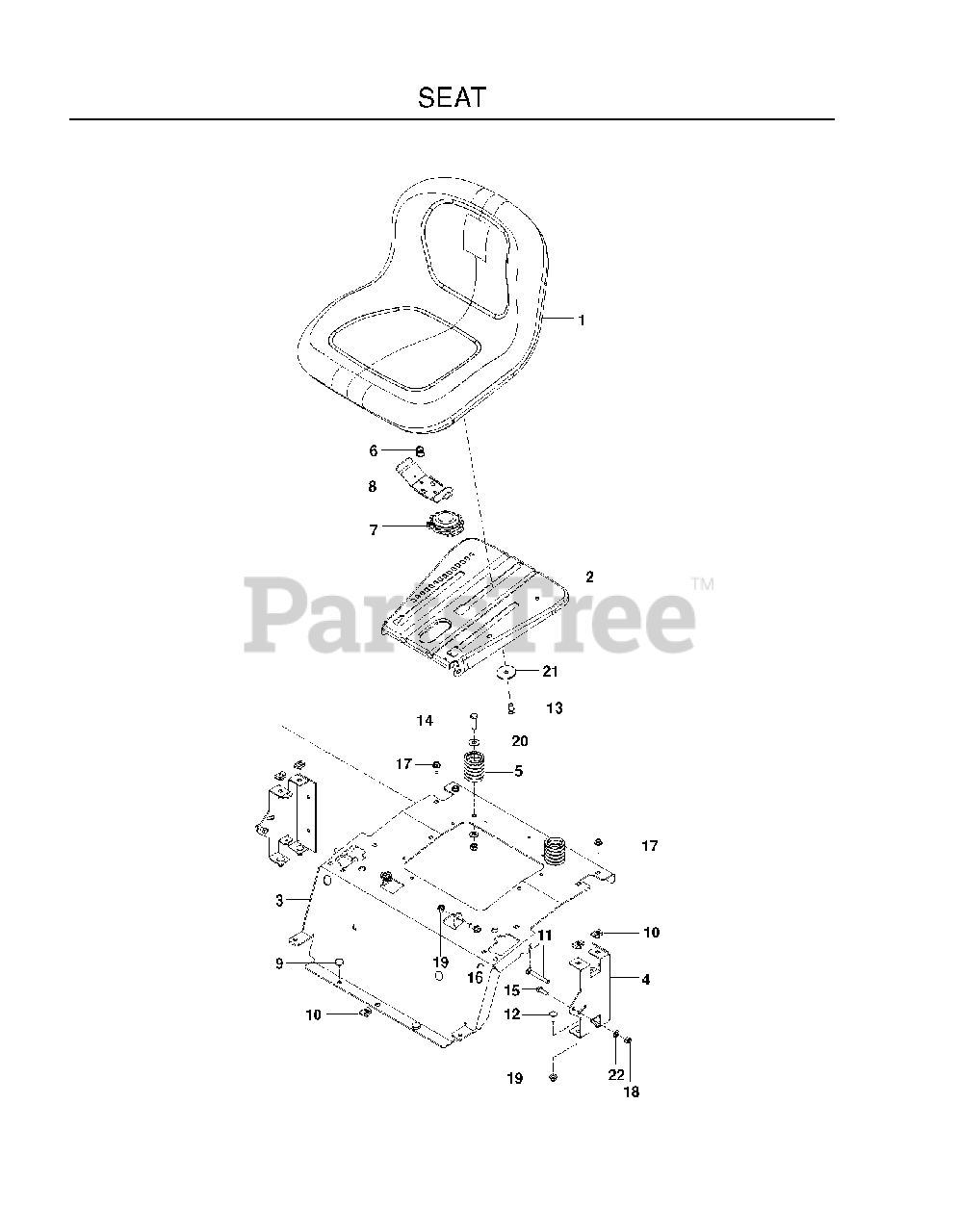

SEAT Parts Diagram

  • Title

1

Poulan 532406625

SEAT.TG150.BLK.NLOGO.

$265.99

$

Usually ships in 3-10 days

0

2

Poulan 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

3

Poulan 577260502

$

$

Not available

4

Poulan 574522702

Rear Seat Support, Black
(Superseded to 580308202)

$22.99

$

Usually ships in 3-10 days

0

5

Poulan 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

6

Poulan 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

8

Poulan 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

9

Poulan 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

10

Poulan 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

11

Poulan 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

13

Poulan 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

15

Poulan 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, only 2 left!

0

16

Poulan 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

18

Poulan 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Poulan 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, Qty 6

0

22

Poulan 539990188

FLAT WASHER 5/16 SAE
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
