461 ZX (966681801) - Poulan Pro 46" Zero-Turn Mower (2011-01) FRAME Parts Diagram

46" Zero-Turn Mower

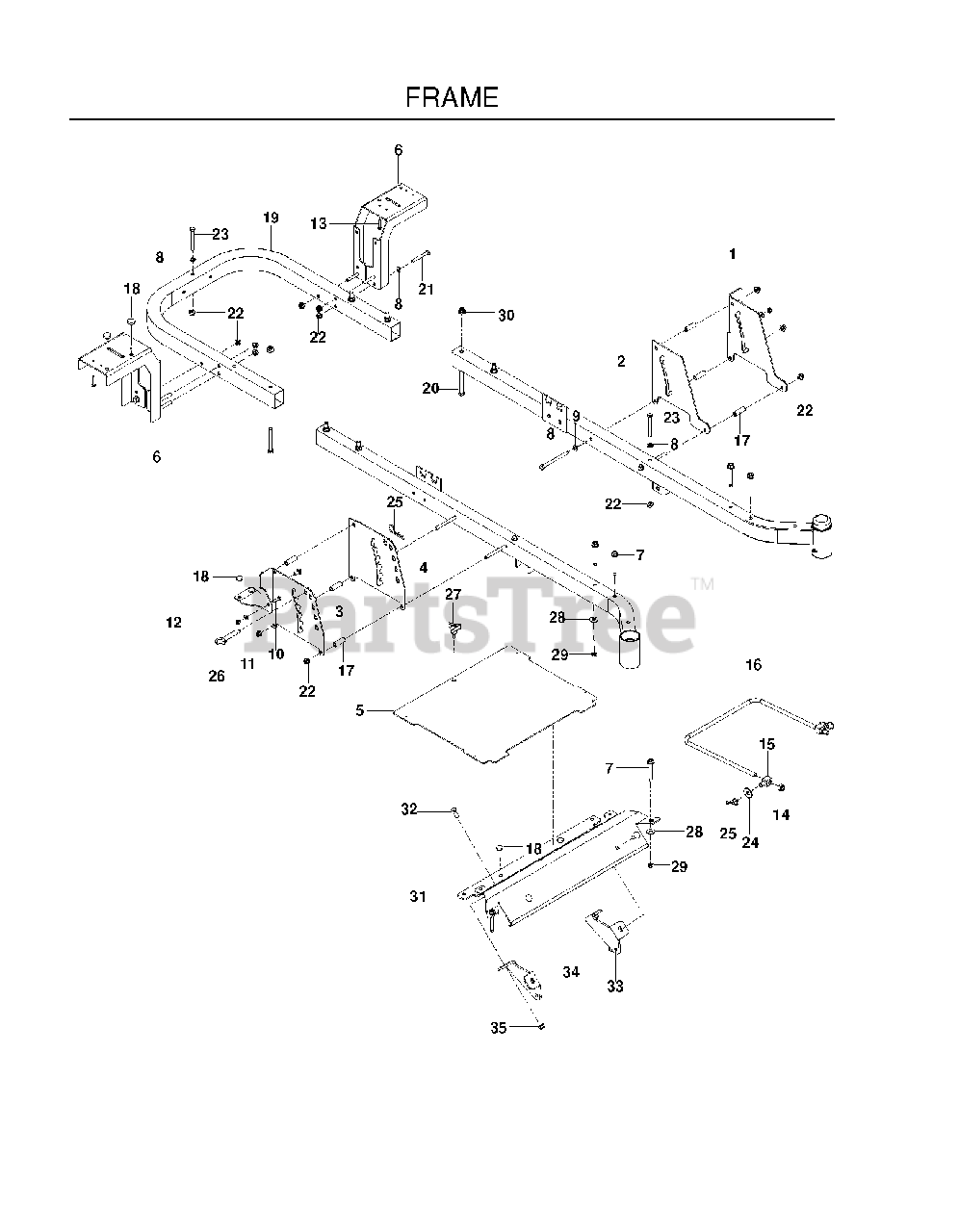

FRAME Parts Diagram

  • Title

1

Poulan 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

2

Poulan 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

3

Poulan 510245604

PLATE, DECK HEIGHT, BLK EZ

$72.99

$

Usually ships in 3-10 days

0

4

Poulan 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

5

Poulan 510171505

PLATE, FOOT, YLW

$

$

Not available

6

Poulan 510225902

SUPPORT, FENDER, BLACK

$78.99

$

Usually ships in 3-10 days

0

7

Poulan 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 539990188

FLAT WASHER 5/16 SAE
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

9

Poulan 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

12

Poulan 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.49

$

In Stock, Qty 18

0

15

Poulan 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

16

Poulan 521938101

LINK, FRONT SUSP.
(Superseded to 521938102)

$14.99

$

In Stock, Qty 5

0

17

Poulan 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486101)

$

$

Not available

18

Poulan 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

19

Poulan 510177606

FRAME TUBE, REAR, YLW

$103.99

$

Usually ships in 3-10 days

0

20

Poulan 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

21

Poulan 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

22

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

23

Poulan 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

24

Poulan 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

27

Poulan 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

28

Poulan 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

30

Poulan 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 522740708

FOOT, REST, MED YLW

$157.99

$

Usually ships in 3-10 days

0

32

Poulan 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

33

Poulan 522443302

MOUNT, STRUT, RT, BLK

$34.99

$

Usually ships in 3-10 days

0

34

Poulan 522443304

MOUNT, STRUT, LT, BLK

$398.99

$

Usually ships in 3-10 days

0
