461 ZX (966681801) - Poulan Pro 46" Zero-Turn Mower (2011-01) ENGINE PLATE Parts Diagram

46" Zero-Turn Mower

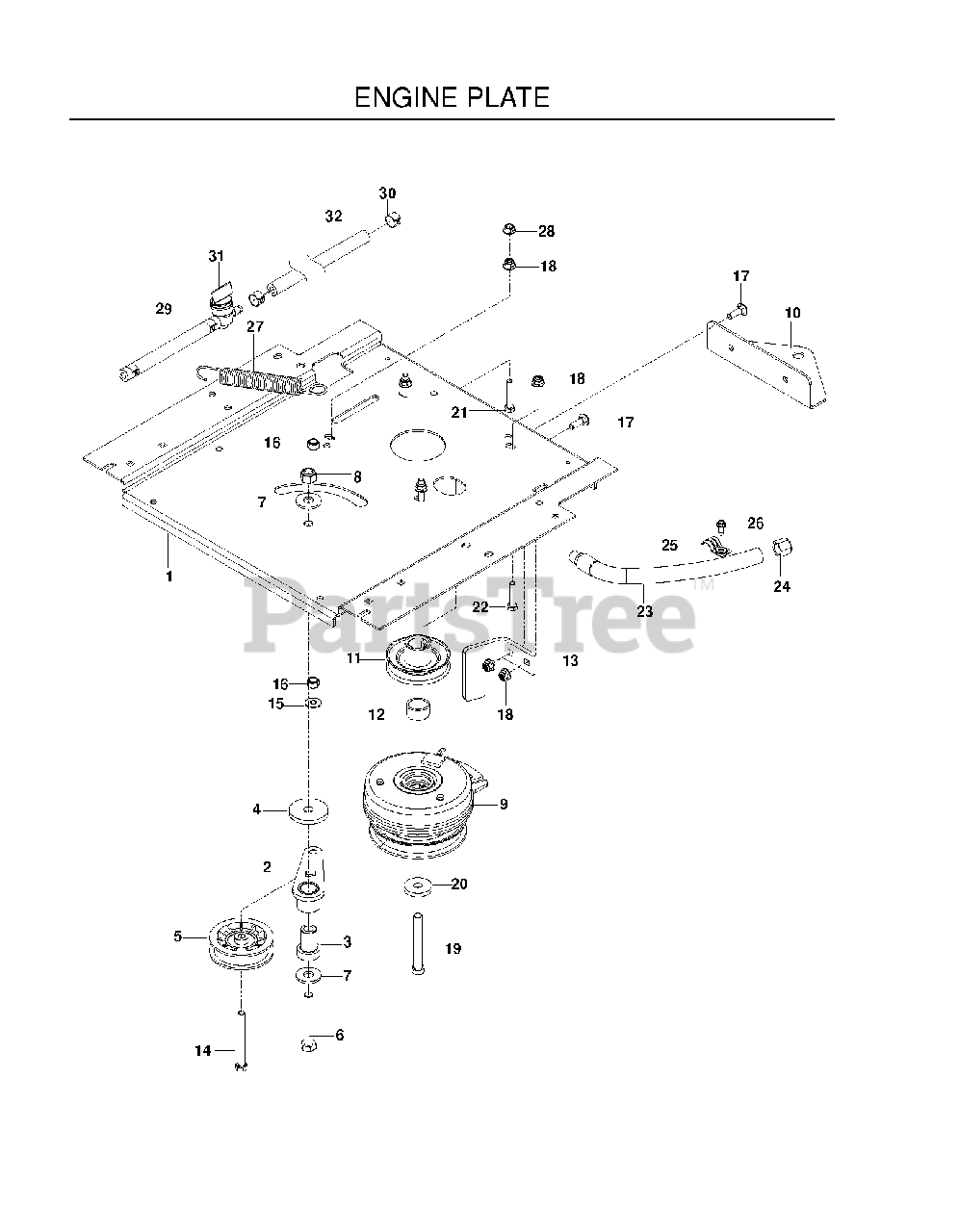

ENGINE PLATE Parts Diagram

  • Title

1

Poulan 575327002

PLATE, ENGINE BLK
(Superseded to 532448161)

$66.99

$

Usually ships in 3-10 days

0

2

Poulan 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 6

0

3

Poulan 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

4

Poulan 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

5

Poulan 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

6

Poulan 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

7

Poulan 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 505287301

CLUTCH, 105 FT-LBS

$284.99

$

Usually ships in 3-10 days

0

10

Poulan 516011802

HITCH, BLACK

$6.99

$

In Stock, Qty 14

0

11

Poulan 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

12

Poulan 539112252

T & B SPACER
(Superseded to 596401101)

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

14

Poulan 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, only 3 left!

0

15

Poulan 539990692

WASHER 5/16 FLAT
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Poulan 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$7.99

$

In Stock, only 2 left!

0

20

Poulan 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

21

Poulan 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

22

Poulan 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

23

Poulan 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

24

Poulan 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

26

Poulan 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

27

Poulan 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 8

0

28

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 505215101

FUEL LINE 2.5"

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

31

Poulan 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

32

Poulan 539932956

GAS LINE 10"

$

$

Not available
