460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton 48" (122 cm) Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

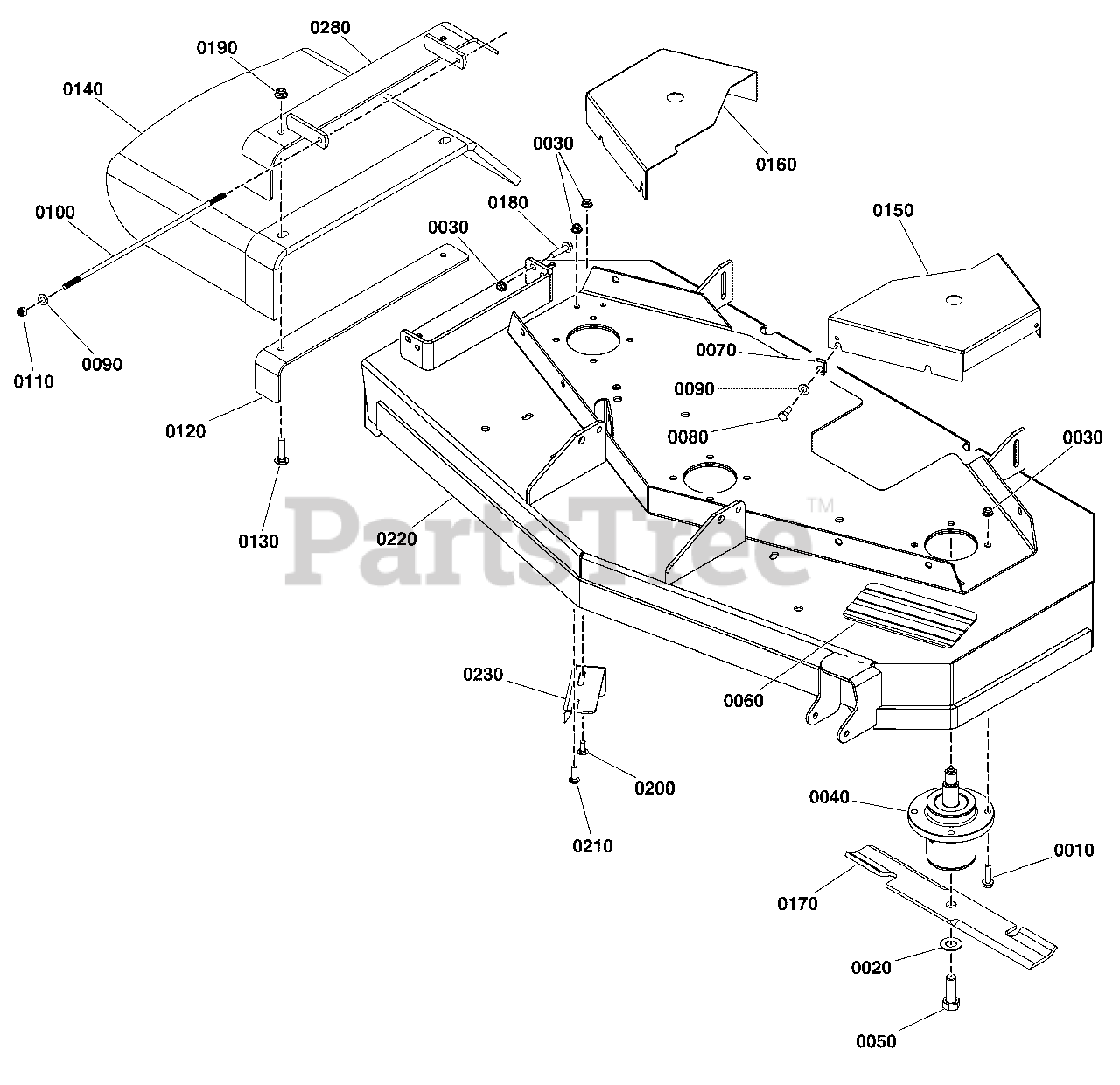

48" (122 cm) Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0010

Snapper 5023156SM

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4

Note: (Torque spindle mounting bolts to 17 ft-lbs (23 Nm)

$3.99

$

In Stock, only 1 left!

0

0020

Snapper 5025477SM

WASHER, Blade Bolt, 9/16"

$3.99

$

In Stock, Qty 11

0

0030

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

$222.99

$

In Stock, only 1 left!

0

0050

Snapper 770136

BOLT, 5/8-11 X 1 3/4, GR 8

Note: (Torque blade mounting bolt to 120 ft-lbs (163 Nm)

$4.49

$

In Stock, Qty 16

0

0060

Snapper 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

Usually ships in 2-12 days

0

0070

Snapper 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

0080

Snapper 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 5042555SM

ROD, 5/16 x 13-3/4

$10.99

$

Usually ships in 2-12 days

0

0110

Snapper 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 11

0

0120

Snapper 5413401AYP

SUPPORT, Chute

$32.99

$

Usually ships in 2-12 days

0

0130

Snapper 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 5413498YP

CHUTE, Discharge

Note: (5104441)

$176.99

$

Usually ships in 2-12 days

0

0150

Snapper 5403531DYP

GUARD, 48" MOWER DECK, LH

$62.99

$

Usually ships in 2-12 days

0

0160

Snapper 5403532DYP

GUARD, 48" MOWER DECK, RH

$41.99

$

Usually ships in 2-12 days

0

0170

Snapper 5101986SYP

BLADE, 16.25 X.25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Not available

0180

Snapper 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

0210

Snapper 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

0220

Snapper 5600631YP

DECK SHELL W/ DECALS, 48" DECK, 2900 (5409884D)

$1935.99

$

Usually ships in 2-12 days

0

0230

Snapper 5401344AYP

PLATE, Deflector

$27.99

$

Usually ships in 2-12 days

0

0280

Snapper 5413404AYP

MOUNT, Discharge

$68.99

$

In Stock, only 1 left!

0
