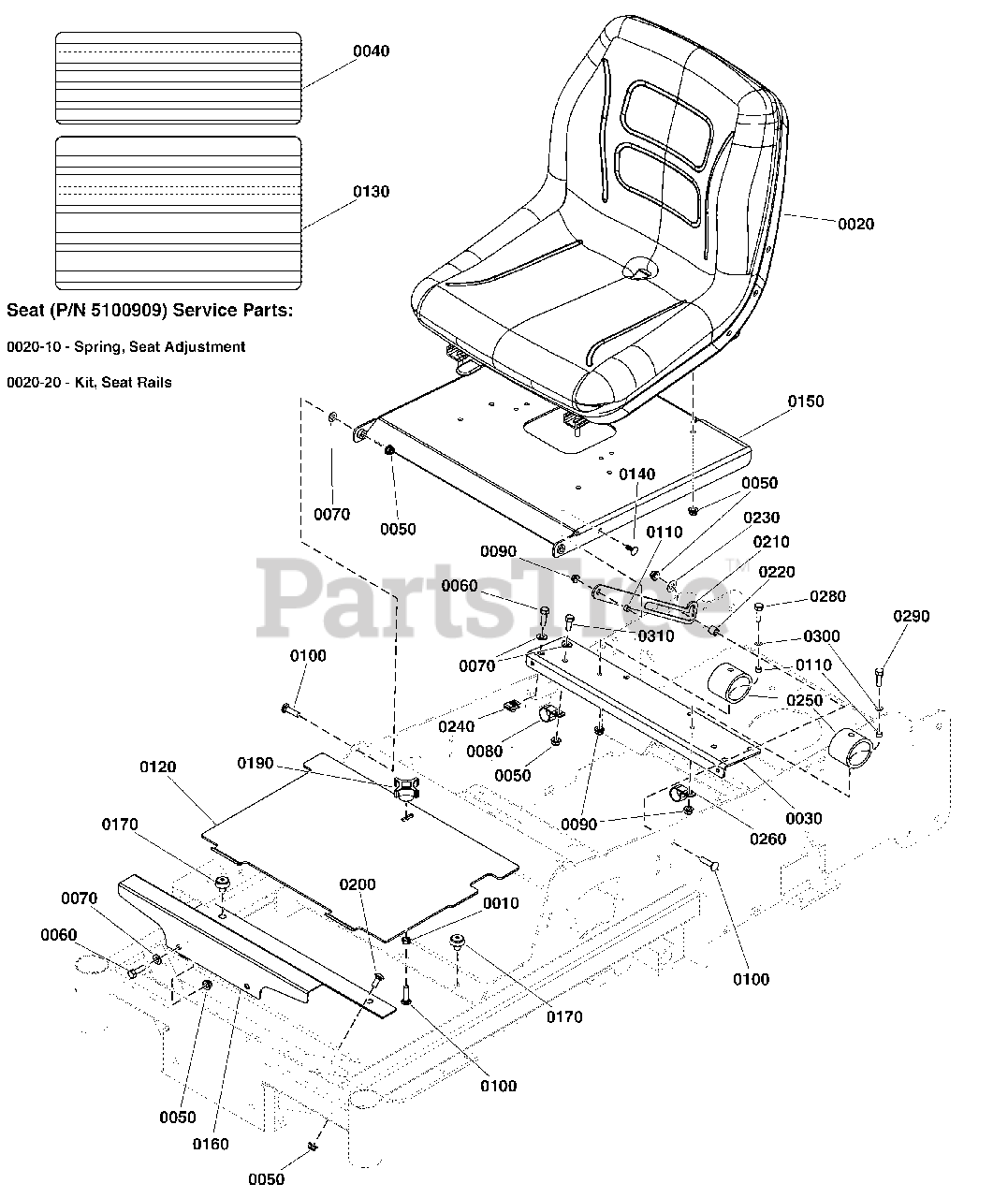

460Z (5901717) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 21.5hp KAV Seat Mount & Floor Group Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 21.5hp KAV

Seat Mount & Floor Group Parts Diagram

  • Title

0010

Snapper 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 18

0

0020

Snapper 5100909SM

SEAT, NO ARM REST

$551.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 5100652SM

SPRING, Extension, Seat Adjustment (BLK or SLVR) (3-1/2" Total unstretched length.)

$10.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 5061599X1SM

KIT, SEAT RAILS (COMPLETE)(SV)

$192.99

$

Usually ships in 2-12 days

0

0030

Snapper 5415416DYP

MOUNT, SEAT STOP - RED

$45.99

$

Usually ships in 2-12 days

0

0040

Snapper 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0050

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0070

Snapper 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 5025558YP

CLAMP, TUBE & WIRING, 1.062 ID

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 5021878YP

SPACER, .25 X .37 X .25

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 5410381DYP

PLATE, REMOVABLE FLOOR, 50XT - RED

$87.99

$

Usually ships in 2-12 days

0

0130

Snapper 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

0140

Snapper 703575

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

0150

Snapper 5415237DYP

WELD, PLATE SEAT MOUNT - RED

$170.99

$

Usually ships in 2-12 days

0

0160

Snapper 5410382DYP

PLATE, FLOOR RIGID - RED

$67.99

$

Usually ships in 2-12 days

0

0170

Snapper 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0190

Snapper 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$13.99

$

Usually ships in 2-12 days

0

0200

Snapper 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

0210

Snapper 5415678AYP

PLATE, SEAT STOP LATCH - RED

$15.99

$

In Stock, only 1 left!

0

0220

Snapper 5102148YP

SPACER, .33 X .50 X .50, CZ

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 5025337YP

WASHER, 5/16 USS

$4.49

$

In Stock, Qty 20+

0

0240

Snapper 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

0250

Snapper 5105128YP

BUMPER, GBR-6, 200 IN-LBS

$23.99

$

Usually ships in 2-12 days

0

0260

Snapper 5101932YP

CLAMP VINYL COATED

$7.99

$

Usually ships in 2-12 days

0

0280

Snapper 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

0290

Snapper 5025010X10SM

CAPSCREW, Hex Hd, 1/4-20 x 1-1/4

$3.99

$

In Stock, only 4 left!

0

0300

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0310

Snapper 5025011X10SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0
