46002 - Gravely 72" Deck for 4-Wheel Tractor GEARBOX Parts Diagram

72" Deck for 4-Wheel Tractor

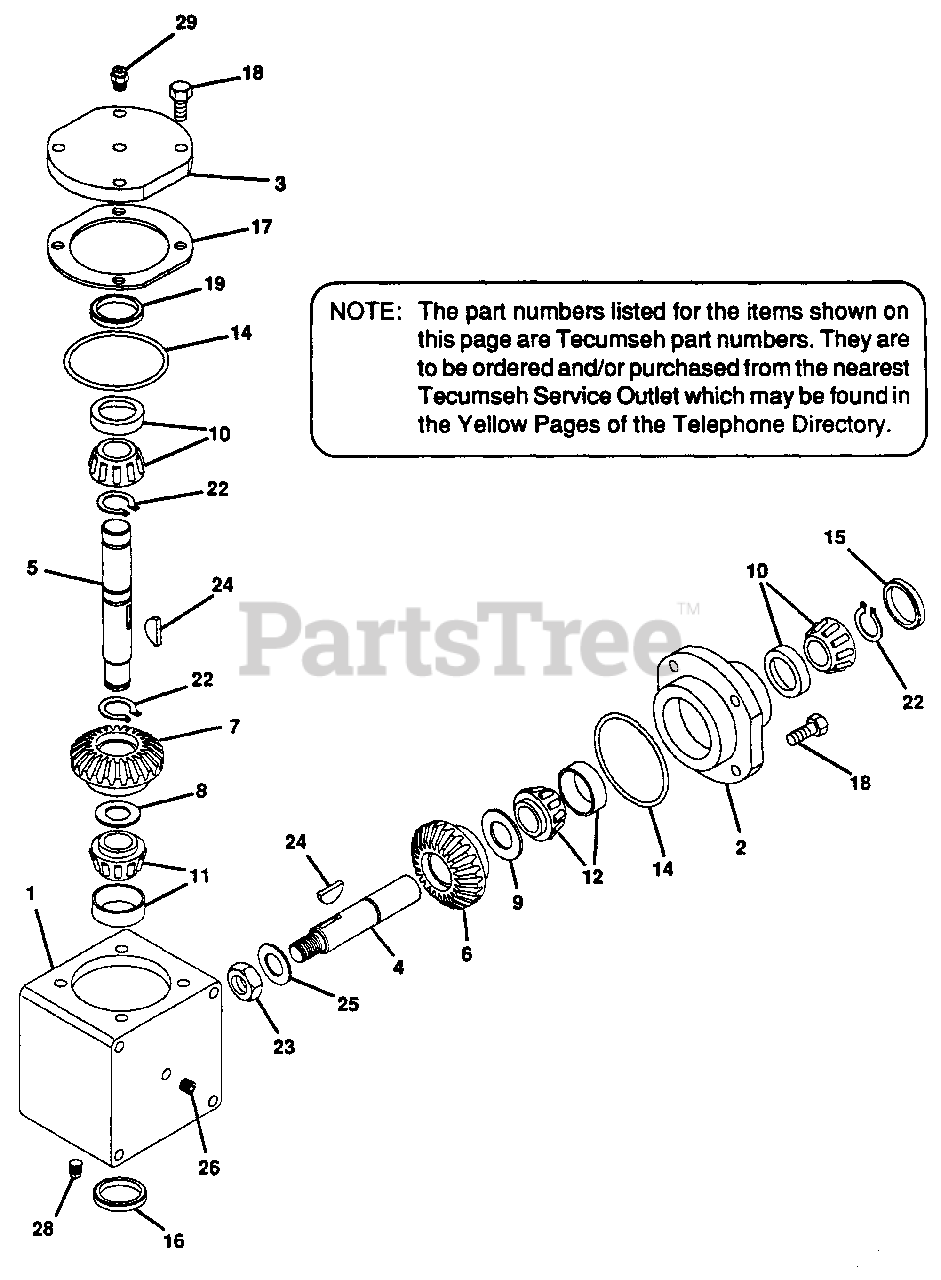

GEARBOX Parts Diagram

  • Title
1

Gravely 770076

HOUSING, RIGHT ANGLE DRIVE

$

$

Not available

2

Gravely 786104A

CAP, RETAINER

$

$

Not available

3

Gravely 786106

CAP, RETAINER

$

$

Not available

4

Gravely 776281

SHAFT, INPUT (5.38" LONG)

Note: (5.38" LONG)

$

$

Not available

5

Gravely 776280

SHAFT, OUTPUT (7.656" LONG)

Note: (7.656" LONG)

$

$

Not available

6

Gravely 778169

GEAR, SPIRAL BEVEL (27 TEETH)

Note: (27 TEETH)

$

$

Not available

7

Gravely 778173

GEAR, SPIRAL BEVEL (18 TEETH)

Note: (18 TEETH)

$

$

Not available

8

Gravely 780131

SHIM (1-1/2" O.D. X 1-1/64" I.D. X .002 THICK)

Note: (USE AS REQUIRED)

$

$

Not available

9

Gravely 780138

SHIM (2.000" O.D. X 1.531" I.D. X .002 THICK)

Note: (USE AS REQUIRED)

$

$

Not available

10

Gravely 780132

BEARING & CUP ASSY

$

$

Not available

11

Gravely 780132

BEARING & CUP ASSY

$

$

Not available

12

Gravely 780134

BEARING & CUP ASSY.

$

$

Not available

14

Gravely 788063

"O" RING

$

$

Not available

15

Gravely 788064

SEAL, OIL

$

$

Not available

16

Gravely 788065

SEAL, OIL

$

$

Not available

17

Gravely 780136

SHIM,CAP RETAINER

$

$

Not available

18

Gravely 792037

SCREW, HEX HEAD, SEMS, 5/16-18 X 1

$

$

Not available

19

Gravely 780137

RING, LOAD

$

$

Not available

22

Gravely 792113

RING, RETAINING

$

$

Not available

23

Gravely 792110

JAM NUT, 3/4-16

$

$

Not available

24

Gravely 792114

KEY, WOODRUFF

$

$

Not available

25

Gravely 792115

WASHER, FLAT

$

$

Not available

26

Gravely 792116

PLUG, PIPE 1/4-18

$

$

Not available

28

Gravely 792039

PLUG, PIPE 1/8-27

$

$

Not available

29

Gravely 792118

VALVE, RELIEF

$

$

Not available
