46002 - Gravely 72" Deck for 4-Wheel Tractor GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT Parts Diagram

72" Deck for 4-Wheel Tractor

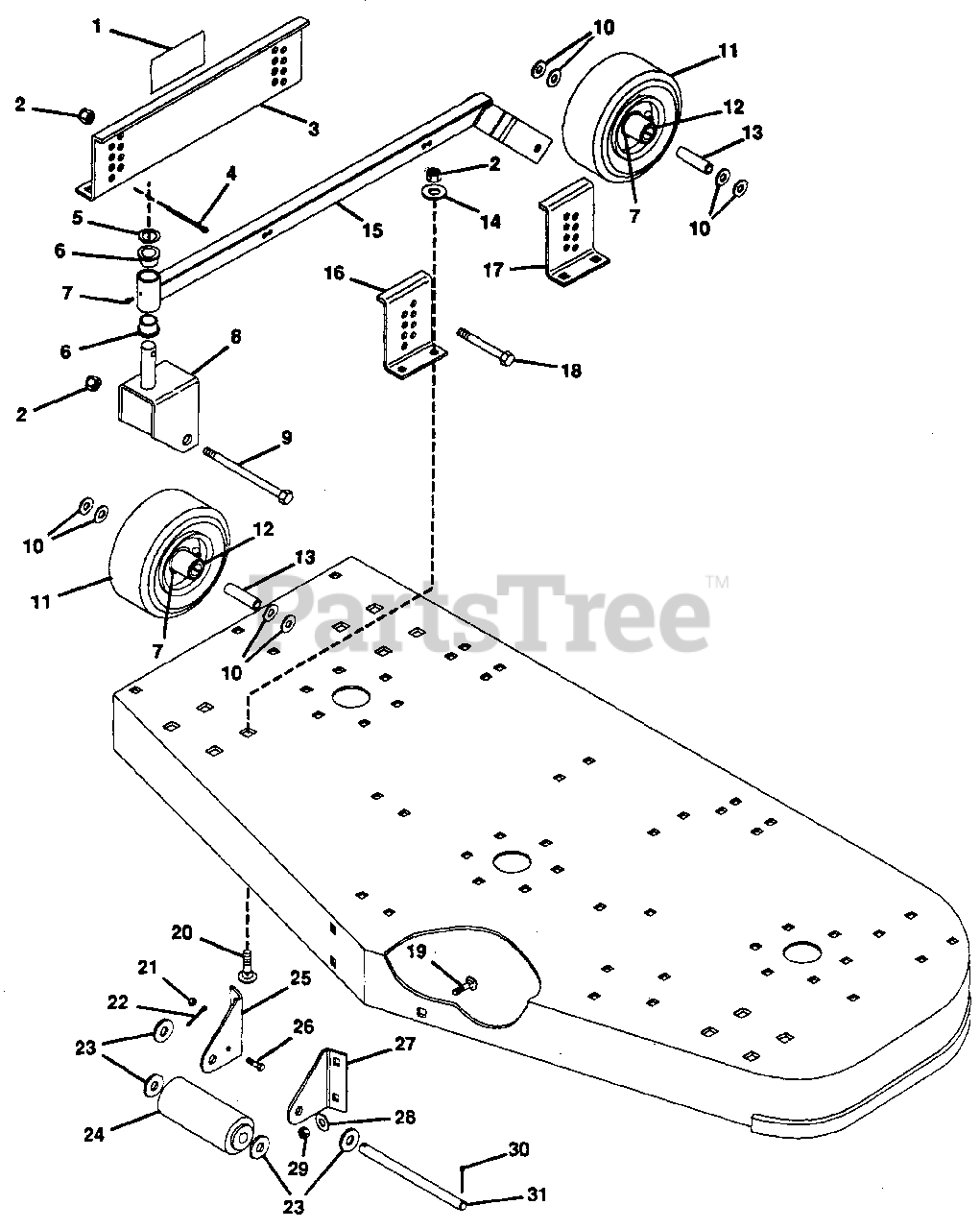

GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT Parts Diagram

  • Title

1

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

2

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 045952

Bracket, Mower Support
(Superseded to 08773100)

$

$

Not available

4

Gravely 137253

Pin, Cotter .187x1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 018355

Bushing, Pivot
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

7

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

8

Gravely 045523

Weldment, Caster Fork
(Superseded to 08969153)

$

$

Not available

9

Gravely 445608

Bolt, Hex 1/2-13x5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

11

Gravely 052586

Wheel, Gauge
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

12

Gravely 011193

Bearing, Ball
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

13

Gravely 011950

Bushing, Wheel
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 044793

Weldment, Caster Wheel Support
(Superseded to 21270600)

$

$

Not available

16

Gravely 045960

Bracket, Mwr Support RH(Front)
(Superseded to 08773700)

Note: (Front)

$

$

Not available

16

Gravely 045961

Bracket, Mwr Support LH(Front)
(Superseded to 08773800)

Note: (Front)

$

$

Not available

17

Gravely 045958

Bracket, Mwr Support RH(Rear)
(Superseded to 08773500)

Note: (Rear)

$

$

Not available

17

Gravely 045959

Bracket, Mwr Support LH(Rear)
(Superseded to 08773600)

Note: (Rear)

$

$

Not available

18

Gravely 180190

Bolt, Hex 1/2-13x3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

20

Gravely 126485

Bolt, Carriage 1/2-13x1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

22

Gravely 103422

Pin, Cotter .250x2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 031390

Roller, Gauge
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

25

Gravely 044902

Bracket, Roller R.H.
(Superseded to 08958100)

$

$

Not available

26

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 044903

Bracket, Roller L.H.
(Superseded to 08958200)

$45.99

$

Usually ships in 4-12 days

0

28

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 179128

Pin, Cotter .25x1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

31

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0
