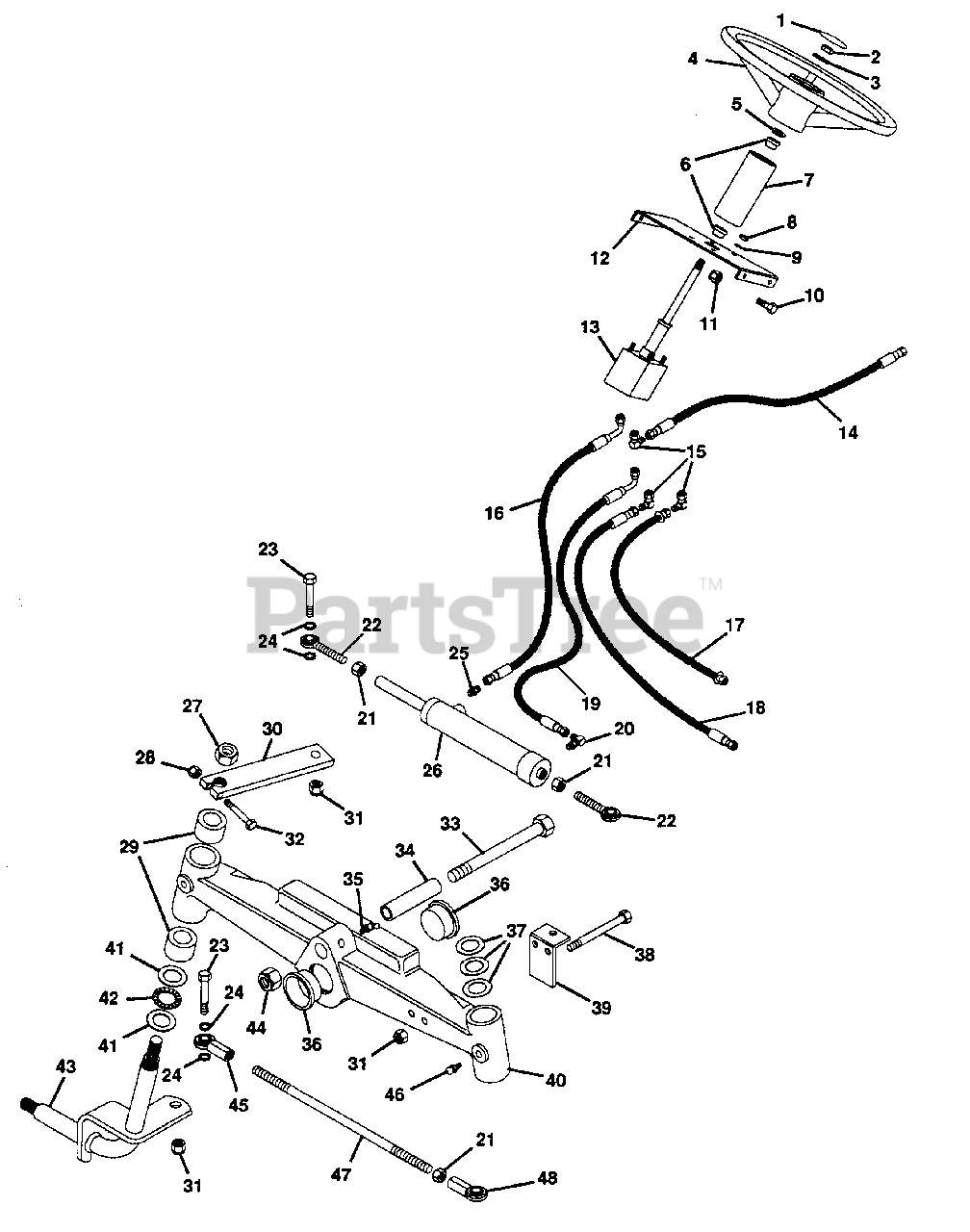

46001 (24-G) - Gravely Lawn Tractor STEERING Parts Diagram

Lawn Tractor

STEERING Parts Diagram

  • Title

1

Gravely 031426

CAP, STEERING WHEEL
(Superseded to 03489800)

$

$

Not available

2

Gravely 124847

NUT, JAM 5/8-11 HEX
(Superseded to 06539300)

$

$

Not available

3

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 031281

WHEEL, STEERING
(Superseded to 03066600)

$

$

Not available

5

Gravely 020444

SPRING, COMP. 1X.80X36 LB/LN
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

6

Gravely 010174

BUSHING, NYLON .760X1.00X.60 FLG
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 041943

BUSHING, STEERING WHEEL
(Superseded to 09035000)

$

$

Not available

8

Gravely 120368

NUT, HEX 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 120214

WASHER, LOCK 5/16 REG,
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 045829

BRACKET, POWER STEERING SUPPORT
(Superseded to 08770800)

$

$

Not available

13

Gravely 046109

POWER STEERING UNIT
(Superseded to 09093200)

$

$

Not available

14

Gravely 046113

HOSE, PSU TO SC RELIEF VALVE
(Superseded to 21278400)

$

$

Not available

15

Gravely 018818

ADAPTER(P.H. 3903-6-6)
(Superseded to 08901000)

Note: (P.H. 3903-6-6)

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 046111

HOSE, PSU TO SC RIGHT
(Superseded to 08776100)

$

$

Not available

17

Gravely 046218

HOSE, PSU TO SC TANK
(Superseded to 08981200)

$

$

Not available

18

Gravely 046112

HOSE, PSU TO SC LIFT VALVE
(Superseded to 21278300)

$

$

Not available

19

Gravely 046110

HOSE, PSU TO SC LEFT
(Superseded to 08776000)

$

$

Not available

20

Gravely 018828

ADAPTER(P.H. #2503-6-6)
(Superseded to 00313270)

Note: (P.H. #2503-6-6)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 124934

NUT, JAM 1/2-20
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 044950

ASSEMBLY, ROD END(R.H.)
(Superseded to 08959600)

Note: (R.H.)

$38.99

$

Usually ships in 4-12 days

0

23

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

24

Gravely 046192

SPACER, .500X.625X.125
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

25

Gravely 019167

ADAPTER(P.H.#0503-6-6)
(Superseded to 07017500)

Note: (P.H.#0503-6-6)

$11.99

$

In Stock, only 2 left!

0

26

Gravely 044583

CYLINDER, STEERING
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

27

Gravely 124589

NUT, HEX 5/8-11
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

28

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

29

Gravely 043359

BUSHING, .877X1.004X1.0
(Superseded to 05516600)

$21.99

$

Usually ships in 4-12 days

0

30

Gravely 045830

ARM, TIE ROD
(Superseded to 08770900)

$271.99

$

In Stock, only 1 left!

0

31

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

32

Gravely 181618

BOLT, HEX 5/16-24X1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

33

Gravely 271781

BOLT, HEX 3/4-10X4.5
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

34

Gravely 023237

TUBE, AXLE PIVOT
(Superseded to 08725200)

$68.99

$

In Stock, Qty 7

0

35

Gravely 411031

FITTING, LUBE 45 DEG.
(Superseded to 07012700)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 018785

CAP, FRONT AXLE
(Superseded to 07520300)

$3.49

$

In Stock, only 3 left!

0

37

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

39

Gravely 045834

BRACKET, STEERING CYLINDER
(Superseded to 08771200)

$

$

Not available

40

Gravely 045400

AXLE, STEERING
(Superseded to 08766900)

$

$

Not available

41

Gravely 021541

RACE, BEARING THRUST
(Superseded to 06426100)

$11.99

$

In Stock, only 3 left!

0

42

Gravely 021543

BEARING, NEEDLE THRUST
(Superseded to 05422000)

$11.99

$

In Stock, only 3 left!

0

43

Gravely 045571

WELDMENT, KING PIN(R.H.)
(Superseded to 08768400)

Note: (R.H.)

$

$

Not available

43

Gravely 045574

WELDMENT, KING PIN(L.H.)
(Superseded to 08768600)

Note: (L.H.)

$

$

Not available

44

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

45

Gravely 044942

ROD END, STEERING L.H.
(Superseded to 08763800)

$

$

Not available

46

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

47

Gravely 045862

TIE ROD
(Superseded to 08656400)

$

$

Not available

48

Gravely 044941

ROD END, STEERING R.H.
(Superseded to 08763700)

$56.99

$

Usually ships in 4-12 days
