46001 (24-G) - Gravely Lawn Tractor NUMBER EIGHT SHAFT-DIFFERENTIAL ASSEMBLY Parts Diagram

Lawn Tractor

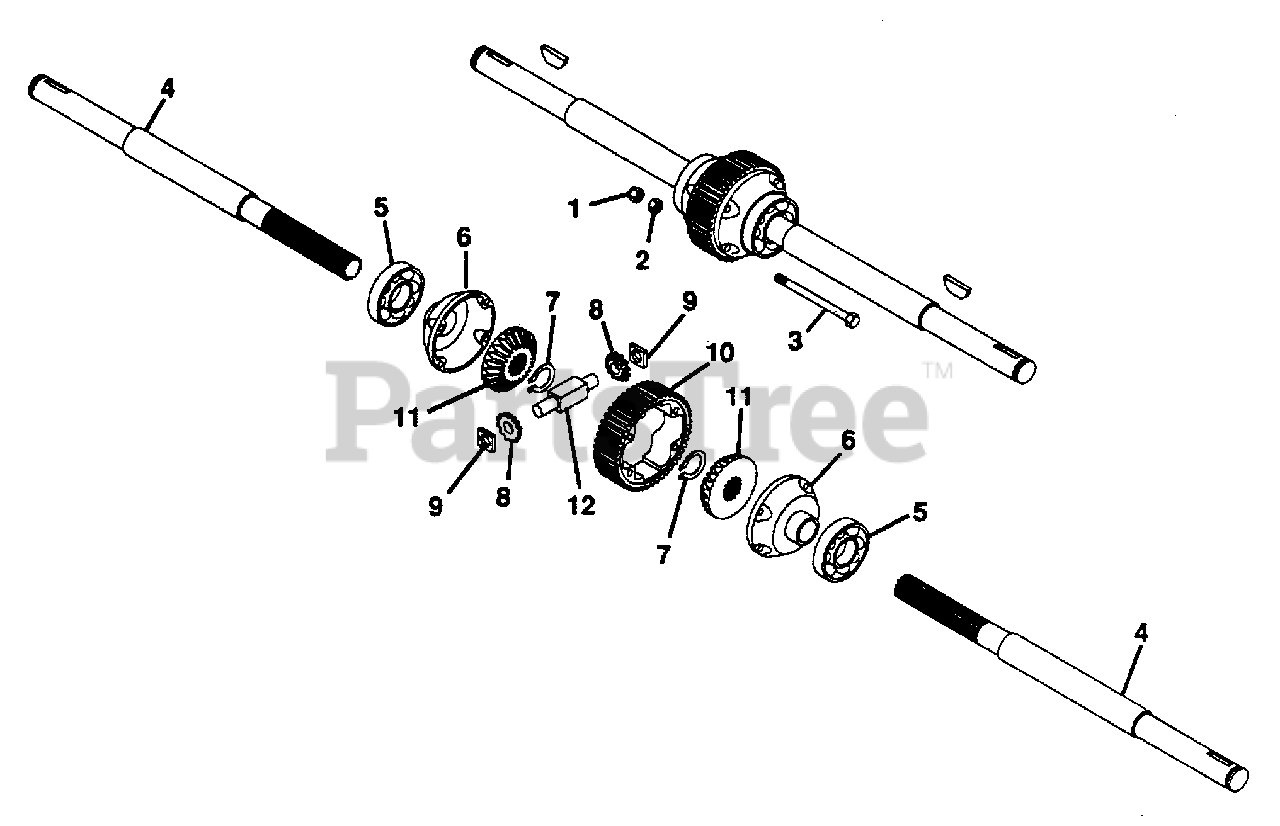

NUMBER EIGHT SHAFT-DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title
1

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 020514

NUT, HEX 5/16-18 GRADE-8
(Superseded to 06521400)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 023712

BOLT, HEX 5/16-18X2.75 GRADE-8
(Superseded to 05941700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 046011

AXLE, BEVEL GEAR DIFFERENTIAL
(Superseded to 21277500)

$

$

Not available

5

Gravely 046014

BEARING, BALL
(Superseded to 05426000)

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 046013

CAP, DIFFERENTIAL END
(Superseded to 08774400)

$91.99

$

Usually ships in 4-12 days

0

7

Gravely 021608

RING, RETAINING 1.250 SFT HEAVY
(Superseded to 05713800)

$

$

Not available

8

Gravely 019952

PINION, BEVEL
(Superseded to 08717100)

$

$

Not available

9

Gravely 046376

BLOCK, DRIVE
(Superseded to 08779000)

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 023531

GEAR, FINAL DRIVE
(Superseded to 08725400)

$

$

Not available

11

Gravely 046012

GEAR, BEVEL
(Superseded to 08774300)

$96.99

$

Usually ships in 4-12 days

0

12

Gravely 019954

PIN, SPIDER PINION
(Superseded to 08717200)

$5.99

$

Usually ships in 4-12 days

0
