46001 (24-G) - Gravely Lawn Tractor HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor

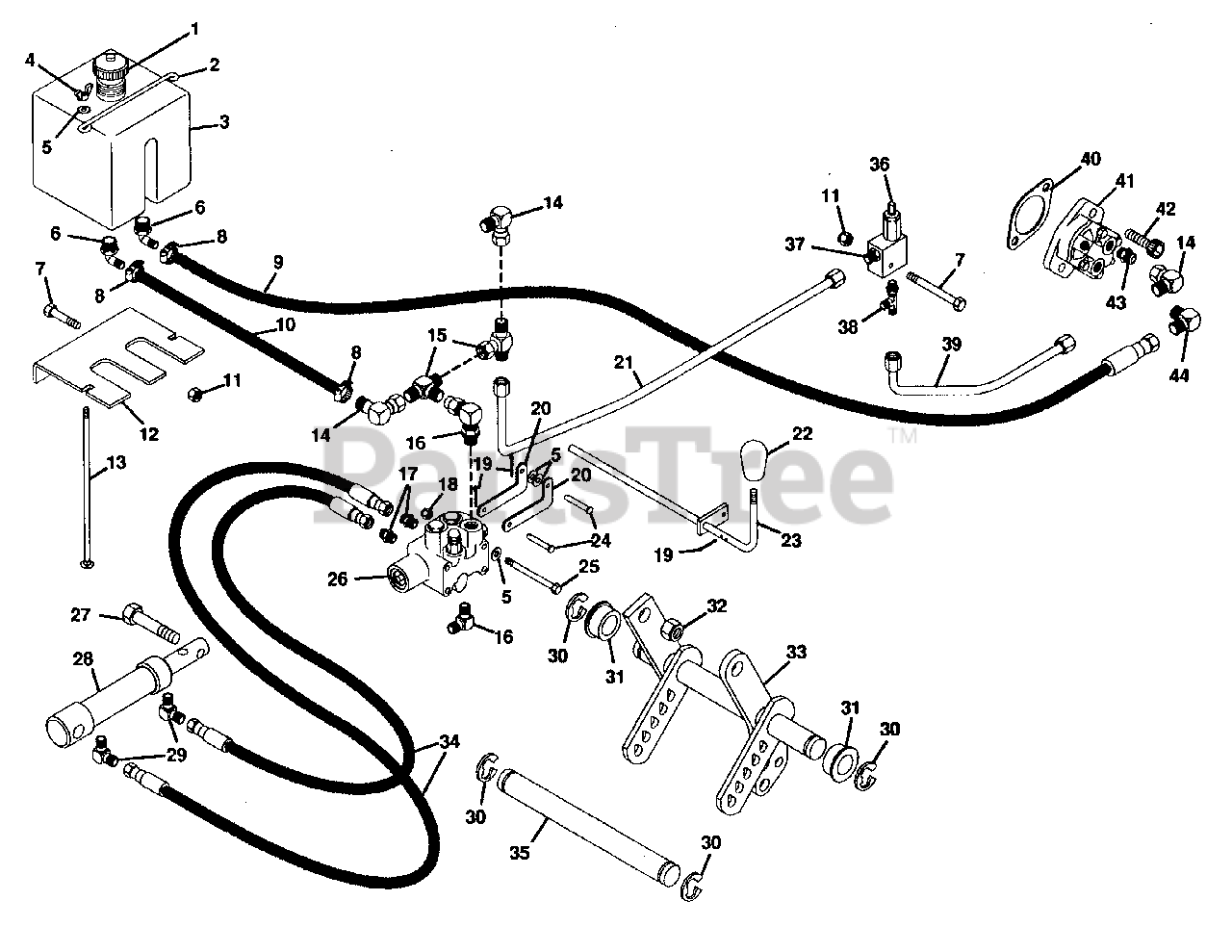

HYDRAULIC SYSTEM Parts Diagram

  • Title
1

Gravely 044877

CAP, TANK
(Superseded to 08826200)

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 045870

ROD, OIL TANK HOLD-DOWN
(Superseded to 08656700)

$

$

Not available

3

Gravely 045270

TANK, HYDRAULIC
(Superseded to 58701500)

$

$

Not available

4

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

5

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 046116

FITTING MALE ELBOW 1/2X1/2
(Superseded to 07019800)

$

$

Not available

7

Gravely 180087

BOLT, HEX 5/16-18X.75
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 021247

CLAMP, .88 DIA. HOSE
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

9

Gravely 046118

HOSE, TANK TO PUMP
(Superseded to 08776300)

$

$

Not available

10

Gravely 046119

HOSE, LIFT VALVE TO TANK
(Superseded to 20824900)

$

$

Not available

11

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 045869

SUPPORT, HYDRAULIC OIL TANK
(Superseded to 21276500)

$

$

Not available

13

Gravely 126932

BOLT, 1/4-20X8.00 RD HD SQ NK
(Superseded to 06218800)

$

$

Not available

14

Gravely 018818

ADAPTOR(P-H #3903-6-6)
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 046117

ADAPTER, T. FLEX
(Superseded to 07019900)

Note: (Used Only On Model(s): 6600-6-6).

$

$

Not available

16

Gravely 018828

ADAPTOR(P-H #2503-6-6)
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 021286

ADAPTOR(P-H #0503-4-4)
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 121222

PIN, COTTER .094X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

20

Gravely 041237

ROD, HYDRAULIC CONTROL
(Superseded to 09065000)

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 046124

LINE, VALVE TO TANK
(Superseded to 20825300)

$

$

Not available

22

Gravely 032659

KNOB, PTO
(Superseded to 07522900)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 045855

WELDMENT, HYDRAULIC CONTROL ROD
(Superseded to 20821600)

$

$

Not available

24

Gravely 040970

PIN, CLEVIS
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 180050

BOLT, HEX 1/4-20X2.75
(Superseded to 05969900)

$

$

Not available

26

Gravely 018825

VALVE, HYDRAULIC
(Superseded to 08901100)

$

$

Not available

27

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

28

Gravely 031284

CYLINDER, HYDRAULIC
(Superseded to 08727500)

$

$

Not available

29

Gravely 018826

ADAPTOR(P-H #2503-4-4)
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 011112

E-RING, 1.000 SHAFT
(Superseded to 05716000)

$3.99

$

In Stock, only 3 left!

0

31

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

32

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

33

Gravely 045859

WELDMENT, LIFT LEVER SHAFT
(Superseded to 08771600)

$

$

Not available

34

Gravely 018845

HOSE, HYDRAULIC 14.5
(Superseded to 08709000)

$

$

Not available

35

Gravely 045860

SHAFT, HYDRAULIC CYLINDER
(Superseded to 08771700)

$

$

Not available

36

Gravely 046121

VALVE, PRESSURE RELIEF
(Superseded to 20825000)

$

$

Not available

37

Gravely 019167

ADAPTER,(P.H. #0503-6-6)
(Superseded to 07017500)

Note: (P.H. #0503-6-6)

$11.99

$

In Stock, only 2 left!

0

38

Gravely 046122

ADAPTOR
(Superseded to 20825100)

$

$

Not available

39

Gravely 046123

LINE, PUMP TO VALVE
(Superseded to 20825200)

$

$

Not available

40

Gravely 018422

GASKET, COVER PLATE
(Superseded to 08702700)

$15.99

$

In Stock, only 1 left!

0

41

Gravely 046023

PUMP, HYDRAULIC
(Superseded to 21277600)

$

$

Not available

42

Gravely 426370

SCREW, CAP 3/8-16 HEX SOCKET HD
(Superseded to 05933300)

$

$

Not available

43

Gravely 023206

ADAPTOR
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

44

Gravely 046072

ADAPTOR(P-H #0503-10-6)
(Superseded to 07020000)

Note: (P-H #0503-10-6)

$

$

Not available
