4600 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Carburetor Group Models: 3420 Parts Diagram

Walk-Behind Mower

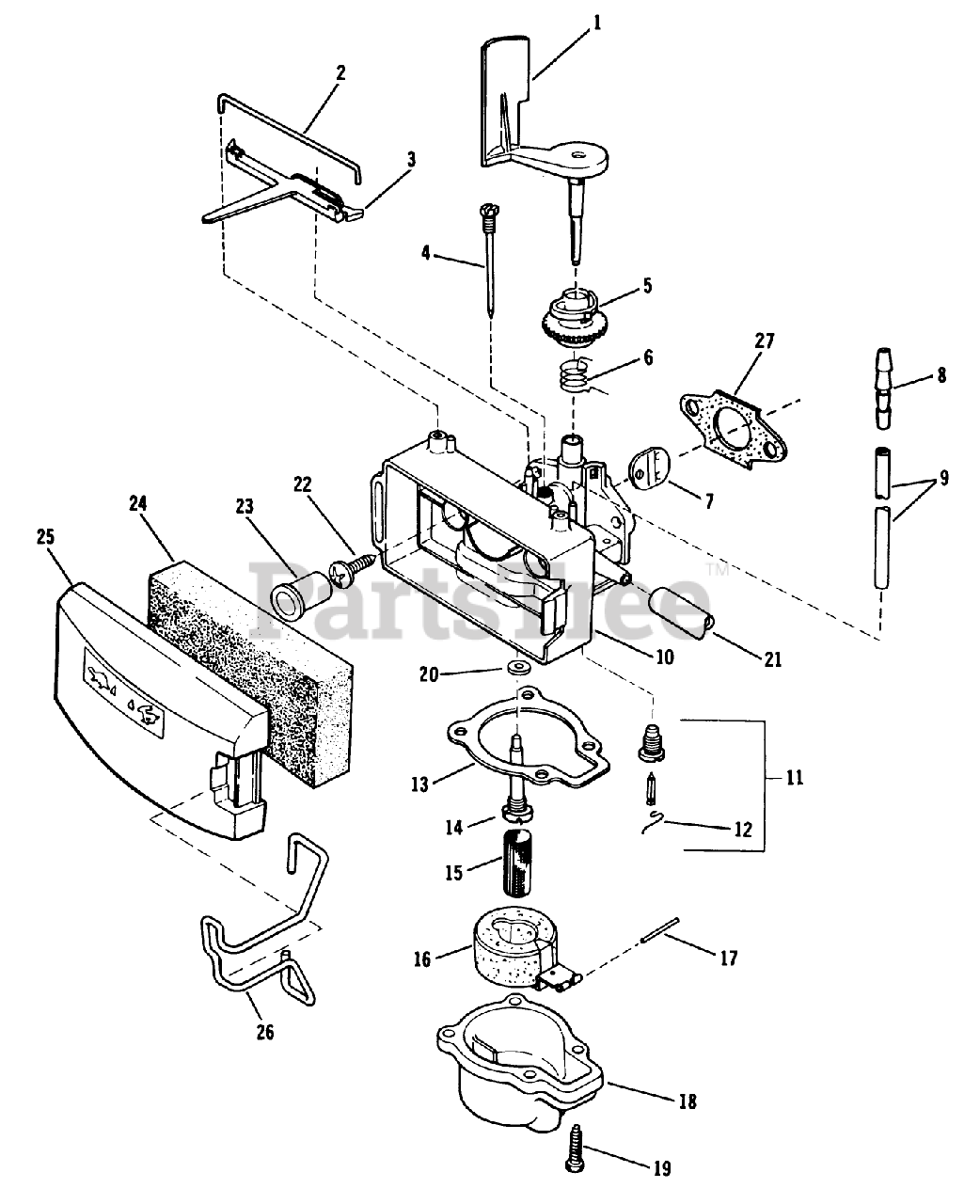

Carburetor Group Models: 3420 Parts Diagram

  • Title

Lawn-Boy 683501

See Supercession: 92-9696
(Superseded to 92-9696)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$284.99

$

In Stock, only 1 left!

0

1

Lawn-Boy 611405

See Supercession: 104-4430
(Superseded to 104-4430)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

In Stock, Qty 18

0

2

Lawn-Boy 610165

RETAINER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

3

Lawn-Boy 611070

LEVER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682567

NEEDLE ADJ. AY S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 610834

COLLAR-ADJUST, AIRVANE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 611069

SPRING,THROTTLE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 609632

DISC S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 1 left!

0

8

611419

REDUCER-CONNECTOR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611420

TUBING S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 611420

TUBING S

Note: Used on Models 4261, 4600, 5253, 7035, 8125, 8241 R8242AE.

$10.99

$

In Stock, only 1 left!

0

Lawn-Boy 612399

TUBING-PRIMER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611421

CARB BODY S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$72.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 681741

See Supercession: 92-9697
(Superseded to 92-9697)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 11

0

12

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 11

0

13

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 683441

NOZZLE SER KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$87.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 611071

FILTER-FUEL VS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 396514

DISCONTINUED
(Superseded to 678113)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

18

Lawn-Boy 610416

DISCONTINUED
(Superseded to 92-6374)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608850

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 612383

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0

21

Lawn-Boy 610741

GAS LINE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 610741

GAS LINE

Note: Used on Models 4261, 772A, 8035 and R8035AE.

$

$

Not available

21

Lawn-Boy 611582

GAS LINE

Note: Used on Models 4261, 4600, 5253, 7035, 8125, 8241 R8242AE.

$

$

Not available

21

Lawn-Boy 611582

GAS LINE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 609482

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 8

0

23

Lawn-Boy 611545

See Supercession: 93-4320
(Superseded to 93-4320)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 5

0

25

Lawn-Boy 610384

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Used on Models 4261, 772A, 8035 and R8035AE.

$

$

Not available

25

Lawn-Boy 610384

See Supercession: 93-1231
(Superseded to 93-1231)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611376

See Supercession: 93-1231
(Superseded to 93-1231)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611376

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Used on Models 4261, 4600, 5253, 7035, 8125, 8241 R8242AE.

$

$

Not available

26

Lawn-Boy 610383

RETAINER-COVER, FILTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 609476

GASKET CARB S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
