4600 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Handle Group Model: 5253 Parts Diagram

Walk-Behind Mower

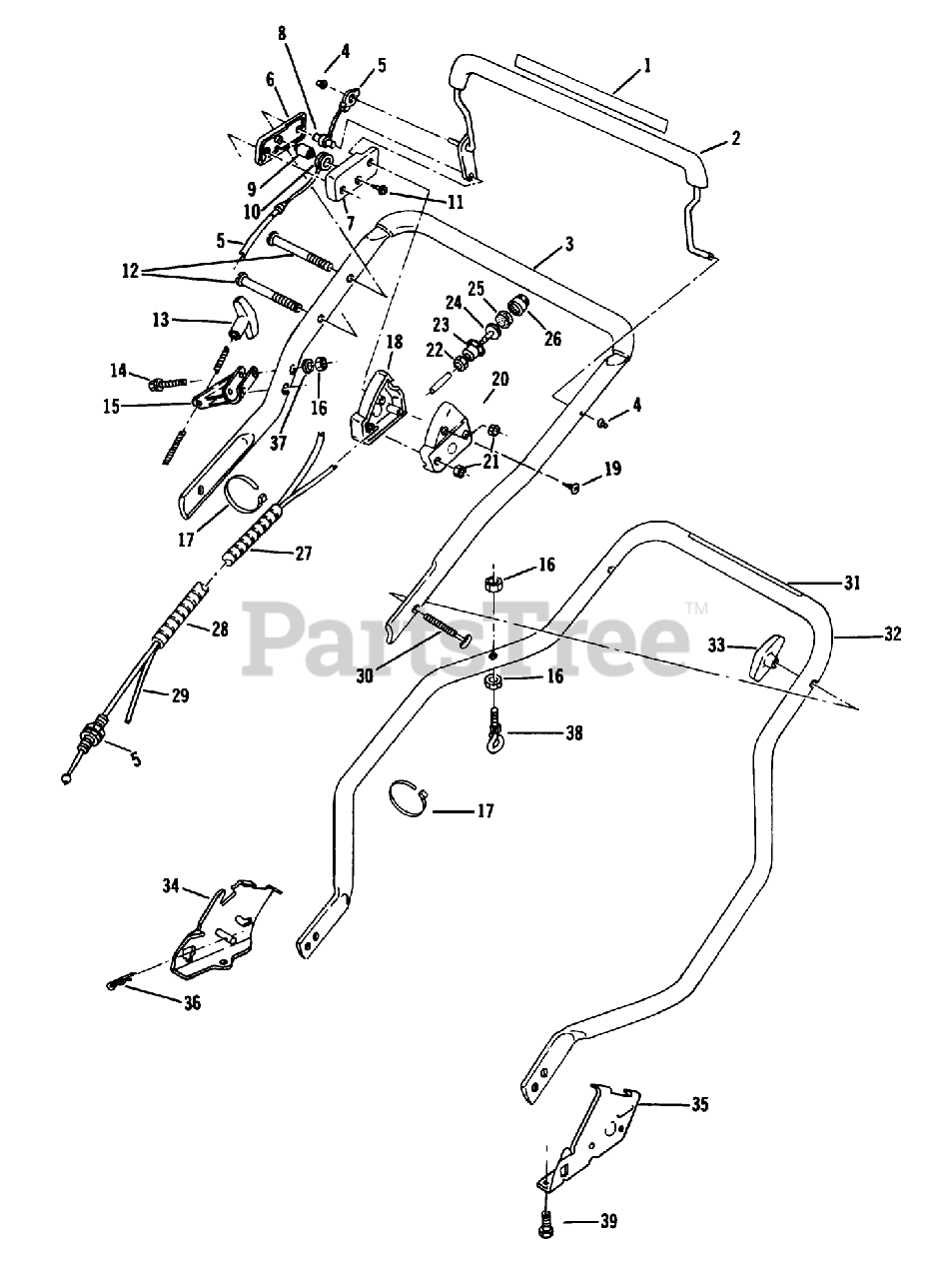

Handle Group Model: 5253 Parts Diagram

  • Title

1

Lawn-Boy 611244

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 682930

See Supercession: 683480
(Superseded to 683480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682695

DISCONTINUED
(Superseded to 611277)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 682933

See Supercession: 683041
(Superseded to 683041)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

Lawn-Boy 683171

CONTROL CASE AY

Note: NOT SHOWN

$

$

Not available

Lawn-Boy 683171

CONTROL CASE AY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611782

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611781

See Supercession: 153702
(Superseded to 153702)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611541

COLUMN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611542

PIN SKF

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611195

See Supercession: 612564
(Superseded to 612564)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611543

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

12

Lawn-Boy 611780

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611340

HANDLE,STARTER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611233

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 682684

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

18

Lawn-Boy 611783

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611381

SCREW LAWRENCE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 611785

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611258

NUT C/LOCK E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 608027

LOCKNUT S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

23

Lawn-Boy 611242

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 607311

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611114

FILTER S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611072

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 611460

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 609857

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 611231

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 611184

BOLT QUALITY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

31

Lawn-Boy 611238

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 611570

DISCONTINUED
(Superseded to 613363)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 607544

NUT-WING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

34

Lawn-Boy 682715

See Supercession: 683926-03
(Superseded to 683926-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 682714

See Supercession: 683925-03
(Superseded to 683925-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 602945

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 611571

EYE BOLT WAS MFG

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0
