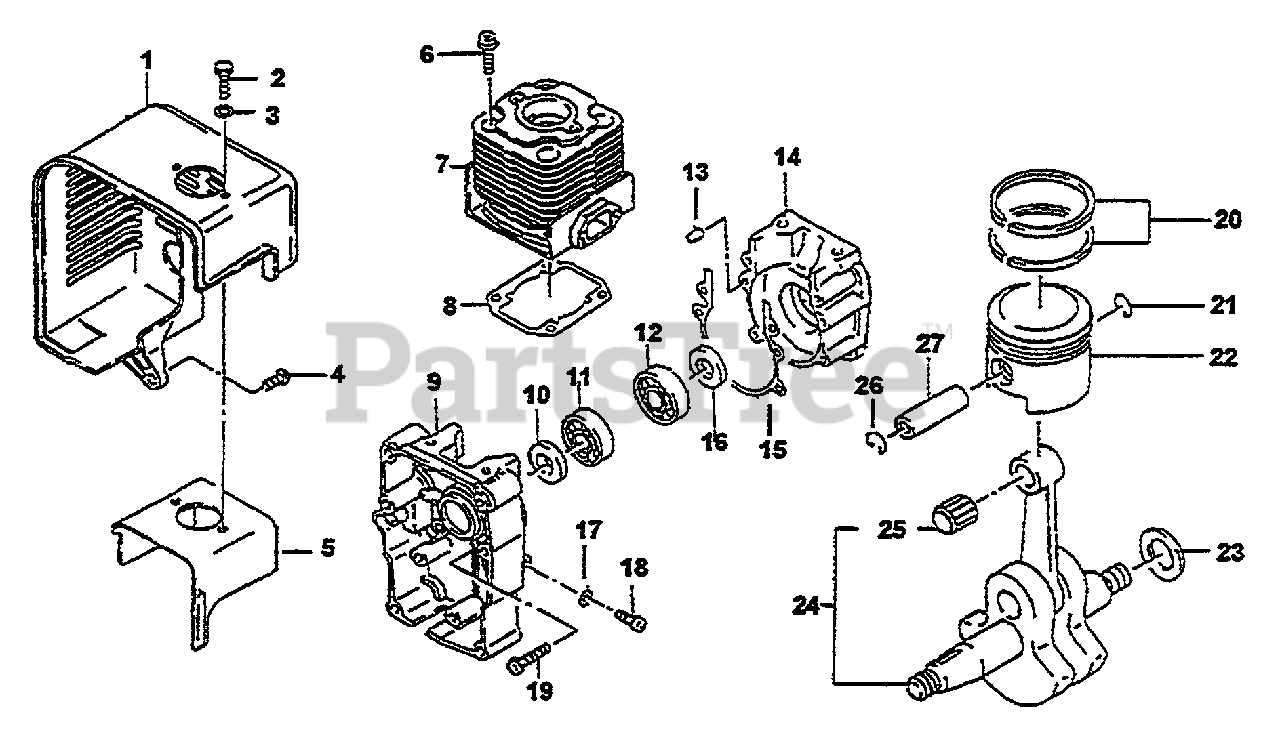

4600 K - Green Machine Blower Engine Internal For 4600K Parts Diagram

Blower

Engine Internal For 4600K Parts Diagram

  • Title

1

Homelite GM465242

SHROUD, ENGINE

$

$

Currently unavailable

2

Homelite GM030110

BOLT

$

$

Not available

3

Homelite GM040128

WASHER

$

$

Not available

4

Homelite GM011005

SCREW

$

$

Not available

5

Homelite GM465241

SHROUD, ENGINE

$

$

Not available

6

Homelite GM030109

BOLT

$

$

Currently unavailable

7

Homelite GM466707

CYLINDER

$

$

Not available

8

Homelite GM467412

GASKET, CYLINDER

$6.49

$

Usually ships in 3-7 days

0

9

Homelite GM460221

CRANKCASE

$

$

Not available

10

Homelite GM080029

SEAL
(Superseded to 0789602)

$

$

Not available

11

Homelite GM071013

BEARING
(Superseded to 0789603)

$

$

Not available

12

Homelite GM071013

BEARING
(Superseded to 0789603)

$

$

Not available

13

Homelite GM101003

PIN, DOWEL

$

$

Currently unavailable

14

Homelite GM460220

CRANKCASE

$

$

Not available

15

Homelite GM467411

GASKET, CRANKCASE

$

$

Not available

16

Homelite GM080029

SEAL
(Superseded to 0789602)

$

$

Not available

17

Homelite GM467413

GASKET

$

$

Currently unavailable

18

Homelite GM011003

SCREW

$

$

Currently unavailable

19

Homelite GM011004

SCREW

$

$

Currently unavailable

20

Homelite GM466710

RlNG SET, PISTON

$

$

Not available

21

Homelite GM467011

SNAP RING

$

$

Not available

22

Homelite GM466708

PISTON
(Superseded to A09104)

$

$

Not available

23

Homelite GM460222

SHIM T=0.10
(Superseded to 0789607)

$

$

Not available

Homelite GM460223

SHIM T=0.20

$

$

Currently unavailable

Homelite GM460224

SHIM T=0.60

$

$

Currently unavailable

24

Homelite GM466711

CRANKSHAFT ASSY

$

$

Not available

25

Homelite GM071416

BEARING
(Superseded to 0789611)

$

$

Not available

26

Homelite GM467011

SNAP RING

$

$

Not available

27

Homelite GM466709

PIN, PISTON

$

$

Not available
