4600 BP (UT-26110) - Green Machine Blower Throttle Parts Diagram

Blower

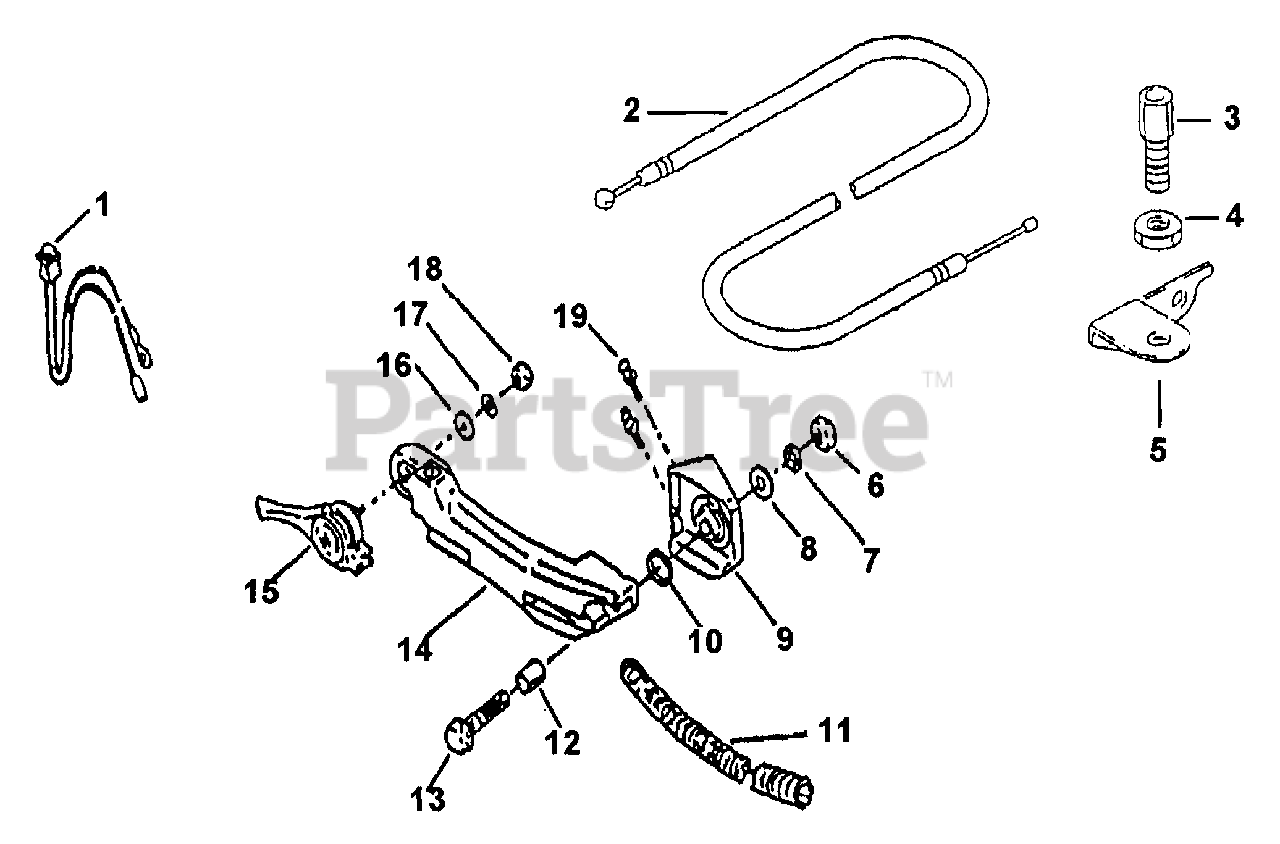

Throttle Parts Diagram

  • Title

1

Homelite GM463101

STOP SWITCH

$

$

Not available

2

Homelite 0789629

THROTTLE CABLE

$

$

Not available

3

Homelite 0789630

CABLE ADJUSTER

$

$

Not available

4

Homelite GM050079

NUT

Note: Torque Specs: 5-20 In/Lbs; .6-2.3 Nm

$2.49

$

Usually ships in 3-7 days

0

5

Homelite GM467235

BRACKET

$8.99

$

Usually ships in 3-7 days

0

6

Homelite 0789631

NUT

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

7

Homelite GM041112

LOCK WASHER

$2.49

$

Usually ships in 3-7 days

0

8

Homelite GM040126

FLAT WASHER

$

$

Not available

9

Homelite GM465239

STAY

$

$

Not available

10

Homelite GM465703

"O" RING

$

$

Currently unavailable

11

Homelite GM463102

TUBE

$

$

Currently unavailable

12

Homelite GM467010

SPACER

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 0789632

BOLT

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

14

Homelite GM465240

STAY

$

$

Not available

15

Homelite GM460112

THROTTLE LEVER

$60.99

$

Usually ships in 3-7 days

0

16

Homelite GM040127

FLAT WASHER

$

$

Not available

17

Homelite 0789633

LOCK WASHER

$

$

Not available

18

Homelite GM050076

NUT
(Superseded to UP04109)

Note: Torque Specs: 10-20 In/Lbs; 1.1-2.3 Nm

$

$

Not available

19

Homelite 0789634

SCREW

Note: Torque Specs: 10-20 In/Lbs; 1.1-2.3 Nm

$

$

Not available
