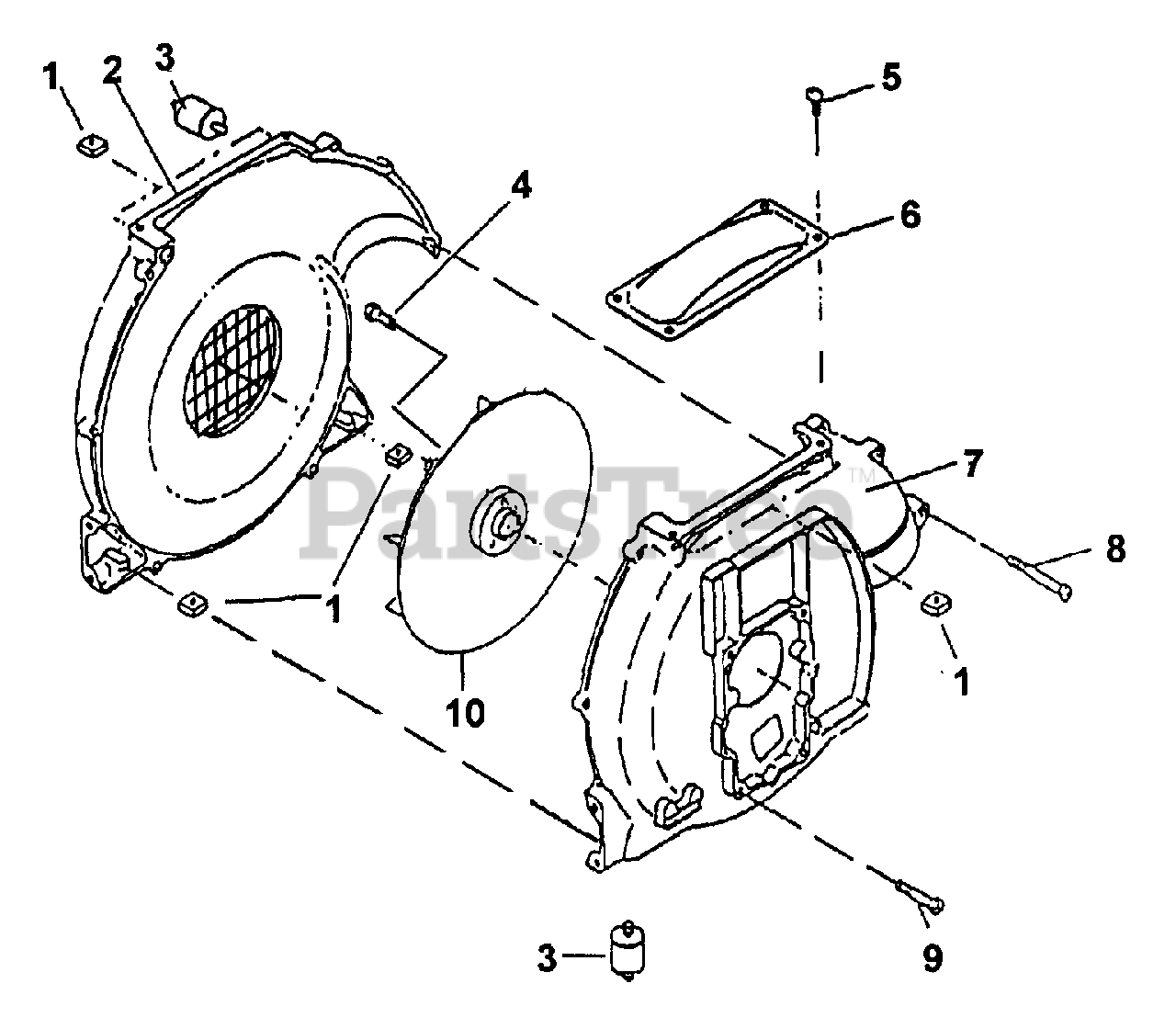

4600 BP (UT-26110) - Green Machine Blower Case & Fan Parts Diagram

Blower

Case & Fan Parts Diagram

  • Title

1

Homelite GM050077

NUT

$

$

Currently unavailable

2

Homelite 0789635

FAN CASE, FRONT

$

$

Not available

3

Homelite GM465522

ANTI-VIBE INSULATOR

$

$

Not available

4

Homelite 0789636

SCREW

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Not available

5

Homelite GM010071

SCREW
(Superseded to 0926011)

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

6

Homelite GM465237

COVER

$

$

Not available

7

Homelite GM465238

FAN CASE, REAR

$436.99

$

Usually ships in 3-7 days

0

8

Homelite GM010172

SCREW

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

9

Homelite GM010174

SCREW

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Not available

10

Homelite GM465236

FAN

$

$

Not available
