45810 - Gravely 40" Deck for 4-Wheel Tractor MOWER DRIVE 40" & 50" Parts Diagram

40" Deck for 4-Wheel Tractor

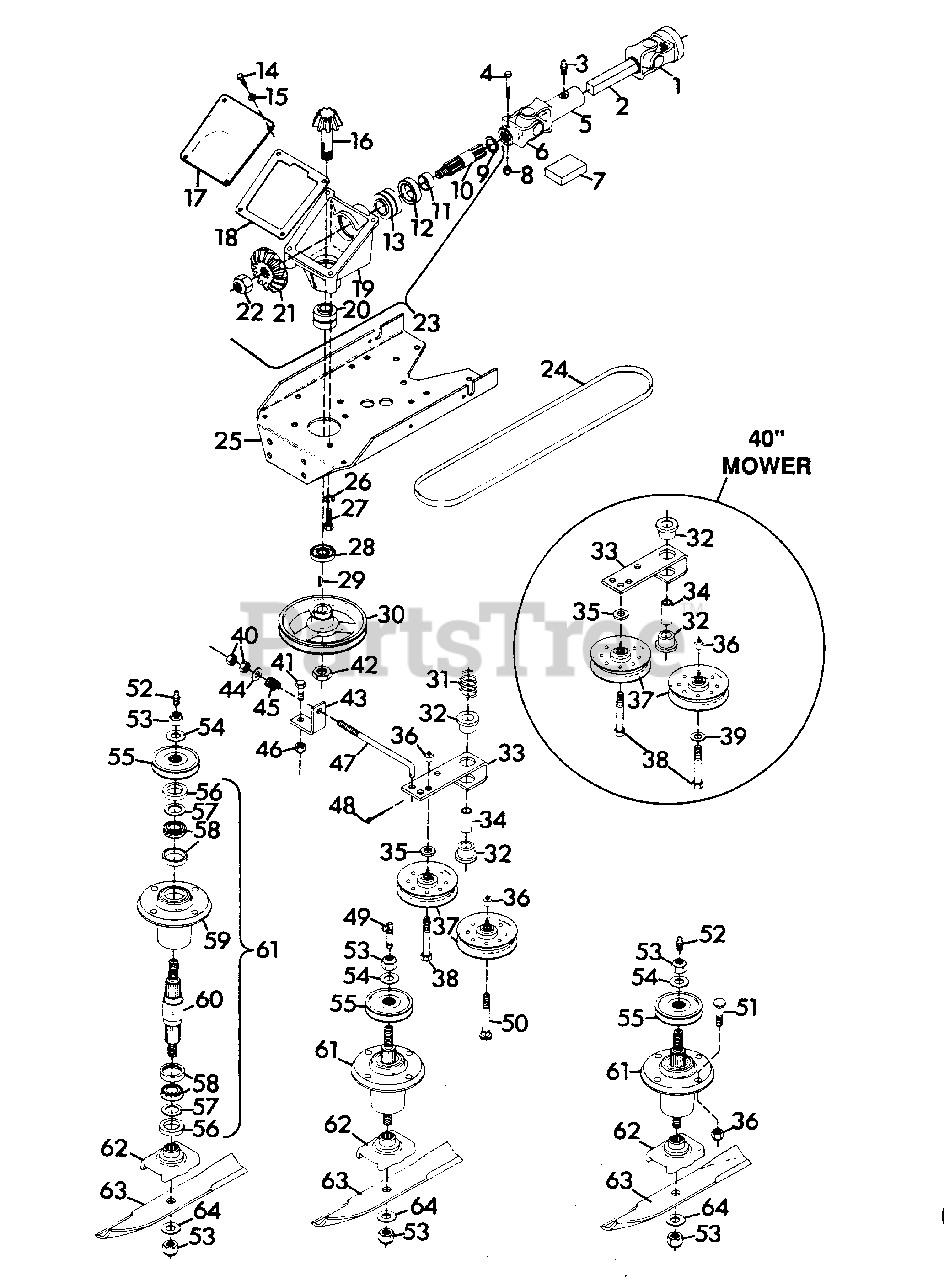

MOWER DRIVE 40" & 50" Parts Diagram

  • Title

1

Gravely 045954

Yoke
(Superseded to 20823200)

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 019074

Shaft, Prop. Sq. Bar
(Superseded to 08713900)

$646.99

$

Usually ships in 4-12 days

0

3

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

4

Gravely 180044

Bolt, Hex 1/4-20x2
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 013518

U-Joint, Female End
(Superseded to 08700200)

$

$

Not available

6

Gravely 046086

Yoke(Neapco)

Note: (Neapco)

$

$

Not available

6

Gravely 046087

Yoke(Roscommon)

Note: (Roscommon)

$

$

Not available

7

Gravely 012134

Kit, Repair U-Joint(Rock. Std.)
(Superseded to 03155800)

Note: (Rock. Std.)

$

$

Not available

7

Gravely 024560

Kit, Repair U-Joint(Neapco)
(Superseded to 03155800)

Note: (Neapco)

$

$

Not available

8

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 014642

Ring, Retaining 1.000 Shaft
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 031412

Shaft, Drive
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

11

Gravely 014641

Spacer
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 014646

Seal, Oil 1.250x1.987x.250
(Superseded to 05613700)

$14.99

$

In Stock, only 1 left!

0

13

Gravely 014640

Assembly, Bearing 1.000x1.980x1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 180016

Bolt, Hex 1/4-20x.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 045588

Shaft, Pinion Gear
(Superseded to 08790400)

$

$

Not available

17

Gravely 010982

Cover, Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

18

Gravely 011231

Gasket, Gear Housing
(Superseded to 08570100)

$5.99

$

In Stock, only 1 left!

0

19

Gravely 014636

Casting, Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

20

Gravely 014644

Assembly, Bearing .750x1.781x1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

21

Gravely 045587

Gear, Bevel
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

22

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

23

Gravely 031410

Assembly, Drive
(Superseded to 08570300)

$1066.99

$

Usually ships in 4-12 days

0

24

Gravely 034429

Belt, 40" Mower
(Superseded to 07226700)

Note: (Used Only On Model(s): 114.8 Long).

$67.99

$

In Stock, Qty 13

0

24

Gravely 011216

Belt, V .500x.312x126.3
(Superseded to 07219600)

$80.99

$

In Stock, only 3 left!

0

25

Gravely 045632

Support, Gear Housing
(Superseded to 08561300)

$203.99

$

Usually ships in 4-12 days

0

26

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

27

Gravely 180173

Bolt, Hex 1/2-13x1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Gravely 014645

Seal, Oil 1.250x1.686x.313
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

29

Gravely 431787

Key, Woodruff .188x.625 Hard #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

30

Gravely 014660

Sheave, 1/2x6.50
(Superseded to 08770000)

$140.99

$

Usually ships in 4-12 days

0

31

Gravely 020444

Spring, Comp.
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

32

Gravely 010174

Bushing, Nylon .760x1.000x.600
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

33

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

34

Gravely 034119

Spacer
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

35

Gravely 014672

Spacer, Idler .406x.750x.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

36

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

37

Gravely 021060

Sheave, Idler
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

38

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

39

Gravely 120388

Washer, Flat .438x1.000x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

41

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 180176

Bolt, Hex 1/2-13x1.375
(Superseded to 05935800)

$

$

Not available

42

Gravely 451539

Nut, Jam 3/4-10 Hex Heavy
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

43

Gravely 034431

Support, Spring
(Superseded to 08537000)

$22.99

$

Usually ships in 4-12 days

0

44

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 011779

Spring, Comp. 1x.78x338 Lb/In
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

46

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

47

Gravely 021111

Rod, Idler 50" Mower
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

47

Gravely 021112

Rod, Idler 40" Mower
(Superseded to 03351200)

$

$

Not available

48

Gravely 121224

Pin, Cotter 3/32x1.00

$0.99

$

Usually ships in 4-12 days

0

49

Gravely 021214

Fitting, Lube .125 Ext. 90 Deg.
(Superseded to 07012100)

$

$

Not available

50

Gravely 126416

Bolt, 3/8-16x1.75 Rd Hd Sq Nk
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

51

Gravely 126402

Bolt, 3/8-16x1.25 Rd Hd Sq Nk
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

52

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

53

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

54

Gravely 033845

Washer, Flat .687x1.312x.122/.146
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

55

Gravely 034428

Sheave, Spindle 40" Mower
(Superseded to 08536900)

$137.99

$

Usually ships in 4-12 days

0

55

Gravely 043366

Sheave, Spindle 50" Mower
(Superseded to 08896000)

$

$

Not available

56

Gravely 021211

Seal, Steel
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

57

Gravely 020743

Washer, Flat .975x1.970x.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

58

Gravely 038199

Assembly, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

59

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

60

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

61

Gravely 021306

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

62

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

63

Gravely 011234

Blade, 50" Mower(Standard)
(Superseded to 08861600)

Note: (Standard)

$23.99

$

In Stock, Qty 20+

0

63

Gravely 038947

Blade, 50" Double Edge(Optional)
(Superseded to 20656200)

Note: (Optional)

$59.99

$

Usually ships in 4-12 days

0

63

Gravely 014668

Blade, 40" Mower
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

64

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

Gravely 036799

Spring
(Superseded to 08738900)

$9.49

$

In Stock, only 1 left!

0

Gravely 036800

Collar, Locking
(Superseded to 08739000)

$25.99

$

Usually ships in 4-12 days

0

Gravely 036801

Ring, Snap
(Superseded to 08739100)

$14.99

$

Usually ships in 4-12 days

0

Gravely 145643

Ball, Detent
(Superseded to 05429800)

$3.49

$

Usually ships in 4-12 days

0
